N5S Android Mobile Industrial PDA NFC Terminal

Short Description:

Decode Capability: 1D, 2D, QR, Aztec
Barcode Scan Engine: Honeywell N6603
Optical System: Android 9.0
Memory: 2GB(RAM), 16GB(ROM)
Battery Capacity: 4000mAh
Screen Type: 4.0inch WVGA (800×480) capacitive touch screen
Dimension: 172mm(L)×72mm(W)×24.8mm(H)
Net Weight: 335g(including battery)
IP Level: IP65
Adapter Input: 5V, 2A
Features:4G LTE FDD TDD, WiFi, 13.56MHz RFID, Alarm, Bluetooth 5.0, Calculator, Calendar, Camera, Email Access, Expansion Slot, GPS, Hard Drive, Internet Browser
Project: Warehouse Management, Logistics, Retail, Public Sector

Product Detail



• Advanced Capacitive Touch Screen

The 4.0inch HD multi-touch capacitive touch screen dynamically adjusts to the current environment, enabling it to work with or without gloves, wet or dry, and with your fingertip or a stylus.

• Enhanced Data Collection Performance

With the N5S in hand, workers can capture practically any type of data from barcodes to photos, videos and NFC, helping to improve business efficiency and throughput.

• Extraordinary Three-proof Design

Constructed in the robust IP65-rated and 1.5m drop-resistant housing, the mobile terminal promises years of trouble-free operation.

• Customized Android OS

New administration mode is added to the native Android system, providing powerful secondary development capabilities.


  • Previous:
  • Next:

  • N5S Specification

    Processor Quad-core 2.0GHz
    Operating System Android 9.0
    Memory ROM: 16GB   RAM: 2GB
    Interface Micro USB2.0, charging interface, 3.5mm audio jack
    Dimensions (L×W×H) 172×72×24.8 mm
    Weight 335g(including battery)
    Display 4.0inch WVGA (800×480) capacitive touch screen
    Keypad 28 keys (side keys included)
    Audio Microphone/speaker
    T-Flash Micro SD card slot (max.128GB)
    Battery Capacity 4000mAh
    GPS High precision GPS + AGPS/Beidou System/GLONASS
    Expected Battery Life Standby: 500 hours
    Scanning: 11 hours of continuous operation (scan once per 6 seconds)
    Expected Charge Time 4 hours
    Adapter Input 5V, 2A
    Operating Temperature -20°C to 55°C (-4°F to 131°F
    Storage Temperature -30°C to 70°C (-22°F to 158°F)
    Humidity 5% to 95% (non-condensing)
    Static Discharge ±12 kV (Air discharge), ±8 kV (Direct discharge)
    Drop 1.5m drops to concrete (for six sides, one drop per side)
    Sealing IP65
    Barcode Scan Engine Honeywell N6603 2D Scan Engine

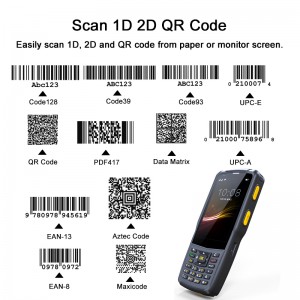

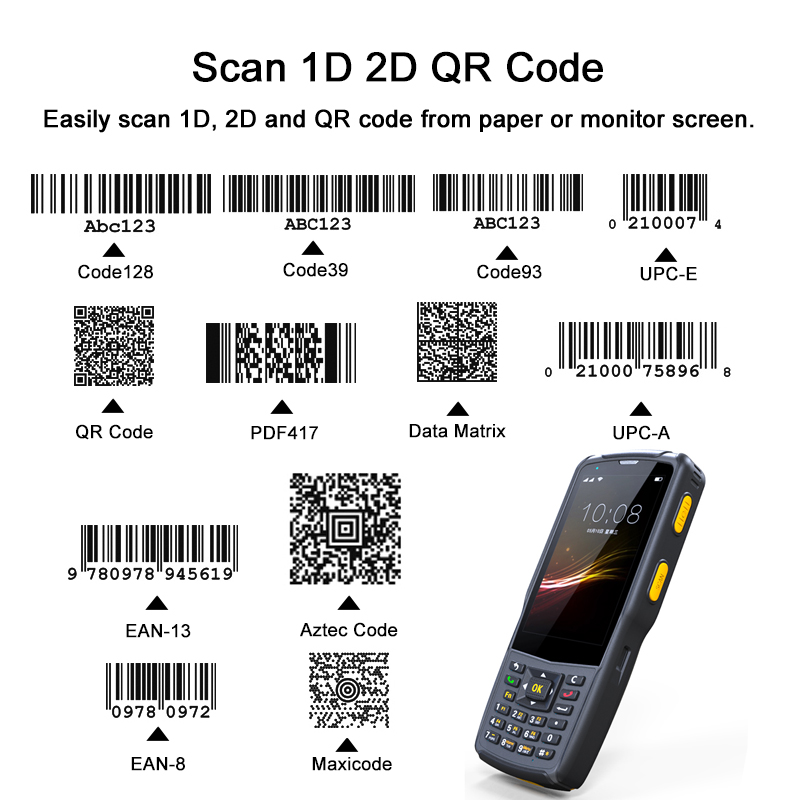

    1D Barcode 1D: Code128,GS1128UCC/EAN-128, AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standard 2 of 5, Code39, ISSN, ISBN, Codabar, Code93, Code 11, Plessey, MSI Plessey, RSS.
    2D Barcode 2D: Aztec, Composite, CS Code, Maxicode, Micro PDF, Micro QR, PDF 417, QR Code, Data Matrix.
    13.56MHz RFID ISO14443A/B, ISO15693, ISO18000-3, Mifare, FeliCa RF, Kovio, NFC Forum Type1-4 Tag
    WLAN RADIO 2G: GSM(Band 2/3/5/8)3G: WCDMA(Band 1/2/5/8)CDMA1X, EVDO (Band BC0)TD-SCDMA (Band 34/39)4G: LTE FDD (BAND 1/3/5/7/8/20)LTE TDD (BAND 38/39/40/41)
    WWAN RADIO 802.11 a/b/g/n, 2.4GHz and 5GHz
    WPAN RADIO Bluetooth 5.0, 3.0+HS/V4.2 LE

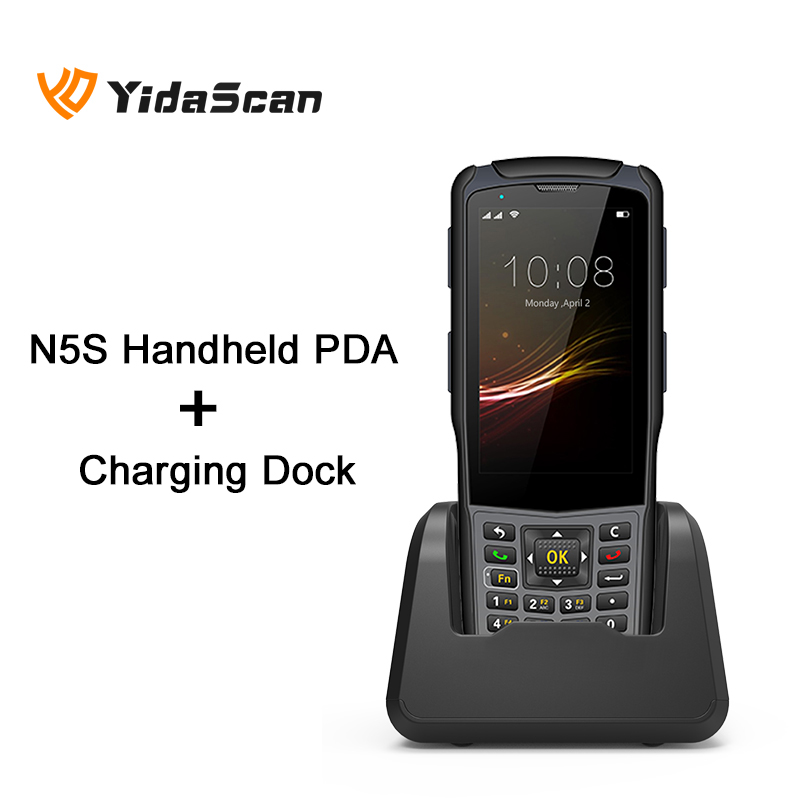

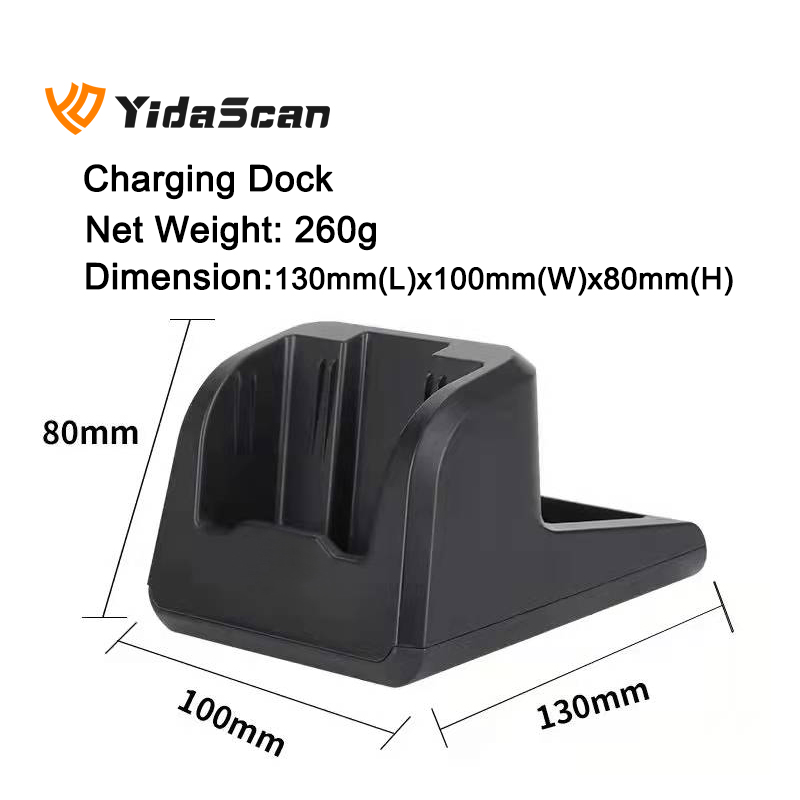

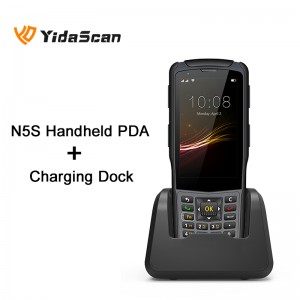

    Accessory (Optional) Adapter, cable, hand strap, charging cradle, 4-slot battery charger
    Certificates & Protection
    Certificates CTA, SRRC, CCC, CE-RED, RoHS, NCC, BSMI, MTBF
    Laser Safety IEC2/FDAⅡ, IEC60825-/EN60825-1
