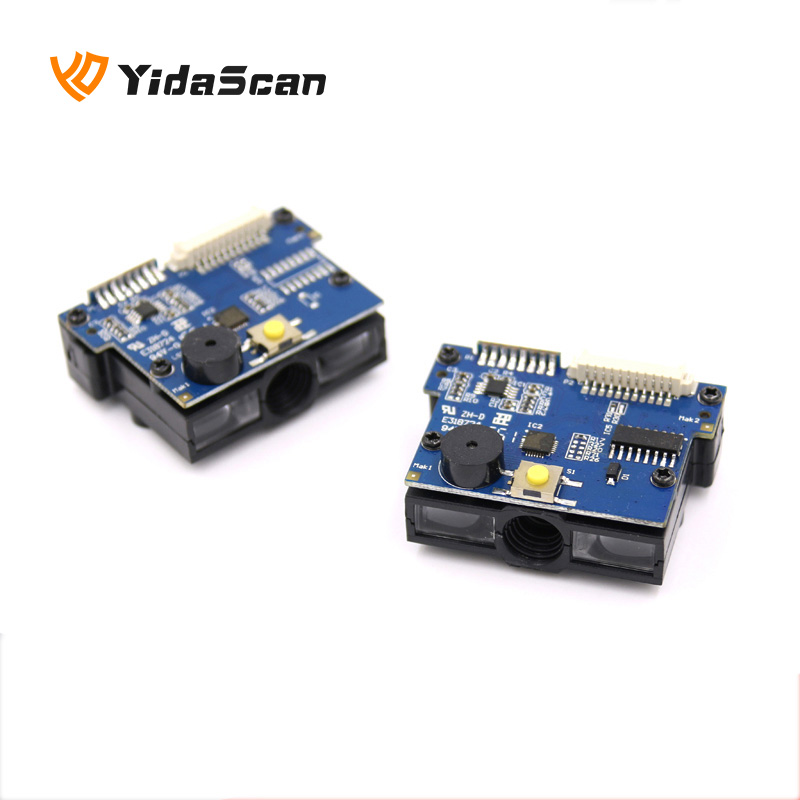

ES12 1D CCD Barcode Scan Engine

Short Description:

Decode Capability: 1D

Form Factor: All-in-One

Illumination: Red LED

Dimension: 32.2mm(L)*44.15mm(W)*20.0mm(H)

Net Weight: <16g (No Cable)

Interface: USB, RS232, TTL, PS2

Project: Vending machines, Ticket validation, Supermarket lockers, Self-service Kiosk, Access control, Manufacturing

Product Detail



• Small Size
Small size, with fixed copper nuts for easy integration into other equipment.

• Optional Interfaces
A wide variety of optional interfaces USB(KBW, COM, HID), TTL, RS232, PS2 for different application scenarios.

• CCD Reader
Original imported CCD, high-precision barcode reading (3MIL), to easily identify all the mainstream one-dimensional barcodes in the market.

• Working Modes
Support a variety of working modes (manual, long bright, flashing, induction, command control), can meet the different reading requirements.

• Directly Connected
Modes can be directly connected to the cable material, do not need to add an additional development board, convenient to use.

• OEM Development
Support for online upgrades, custom development, and secondary development.

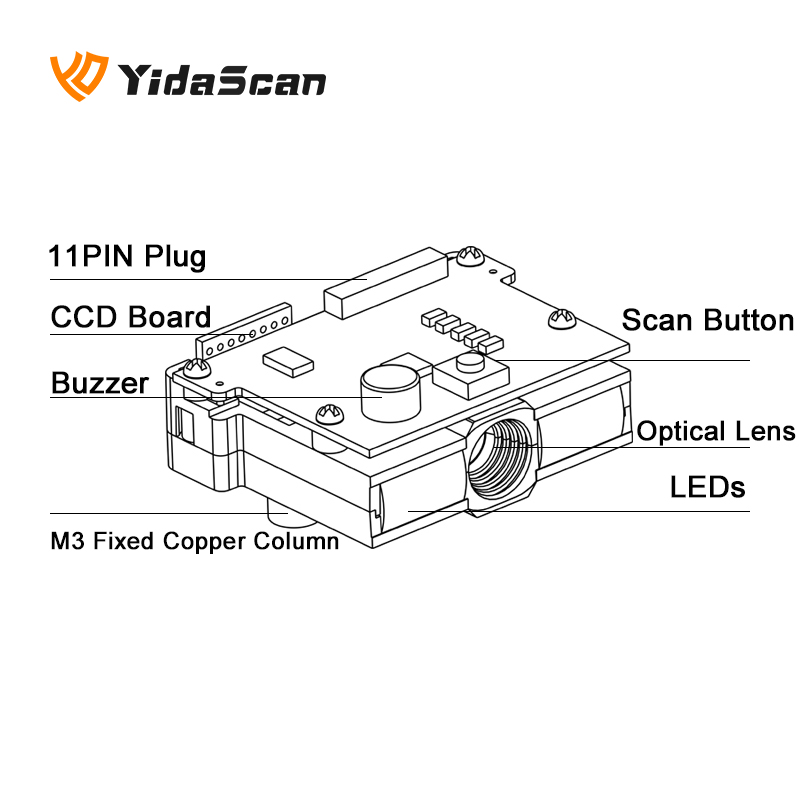

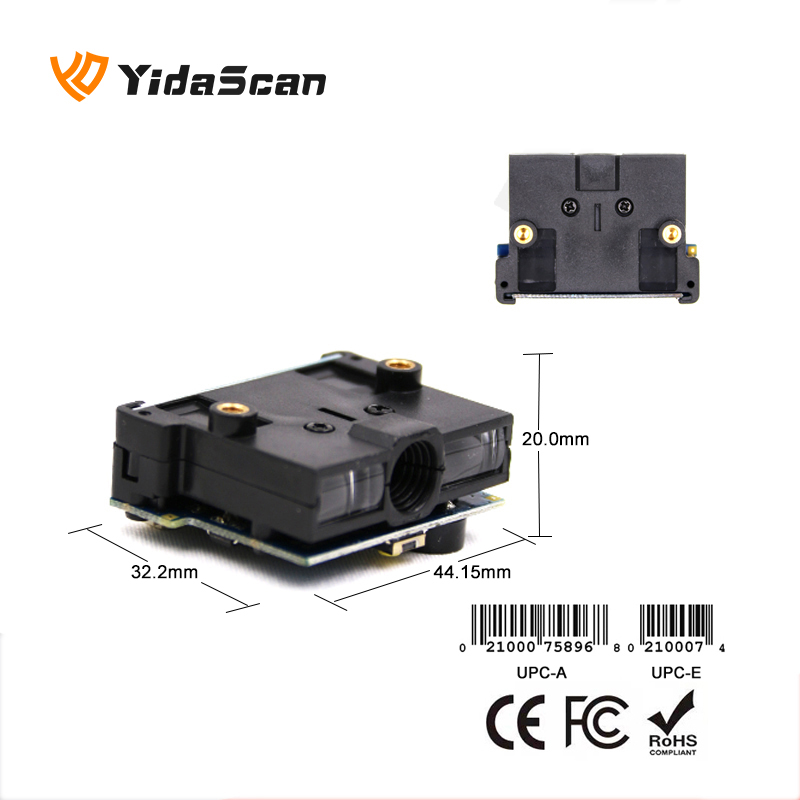

Structure Size

The ES12 1D CCD module uses the integrated design to the following physical size specifications. Unit :mm


Note: use 3.0mm tooth screws at the bottom, with a maximum depth of 4mm.

  • Previous:
  • Next:

  • Communication mode


    Optical system

    Linear CCD Sensor

    Resolution ratio



    ≥3mil/0.076mm(PCS90%,CODE 39)

    Read the depth of field


    Decoding speed

    300 Time / sec

    Reading mode

    Manual reading, often bright reading, induction reading, flicker reading, instruction control

    Prompting mode


    Read Angle

    Test Conditions:CODE39,10mil/0.25mm,PCS90%

    Rotate Roll: ± 30°, tilt Pitch: ± 60°, offset Skew: ± 60°

    Print contrast


    Ambient light

    Dark environment, indoor natural light


    UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.

    Mechanical / Electrification Performance

    Net weight

    <16g(No Cable)

    Appearance size 32.2mm(L)*44.15mm(W)*20.0mm(H)
    Cable length 1.5m (optional)
    Interface type 11PIN Pitch 1.25
    Working voltage DC 5V
    Current 100mA (work), 30mA (standby)

    Work Environment

    Working temperature -20℃ to 50℃
    Storage temperature -40℃ to 60℃
    Working humidity 5% to 95% (no condensation)
    Transport vibration test 10H@125RPM

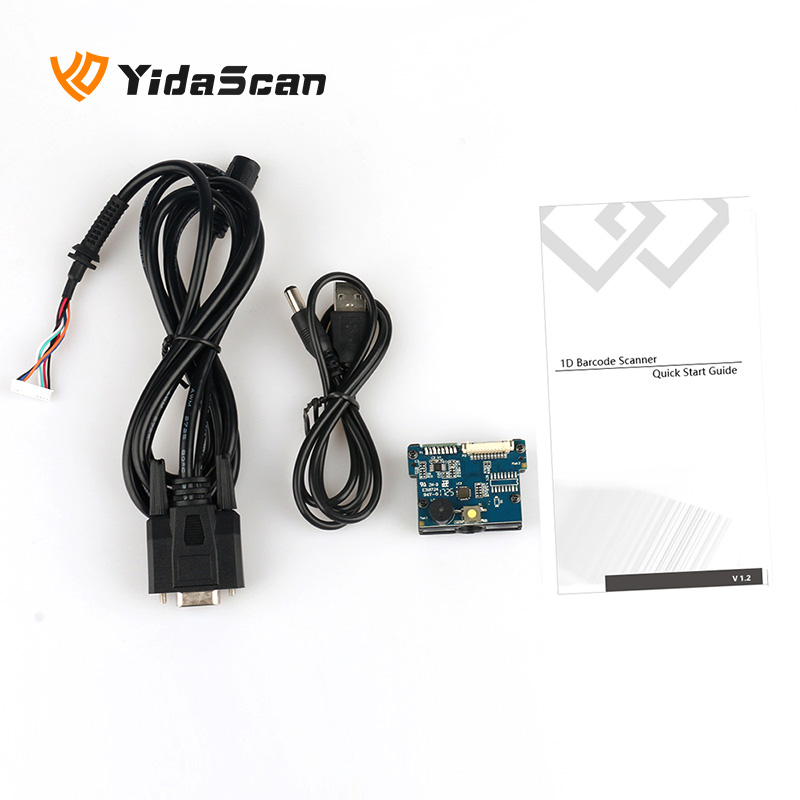

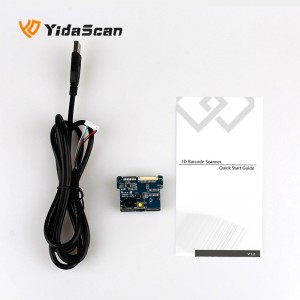

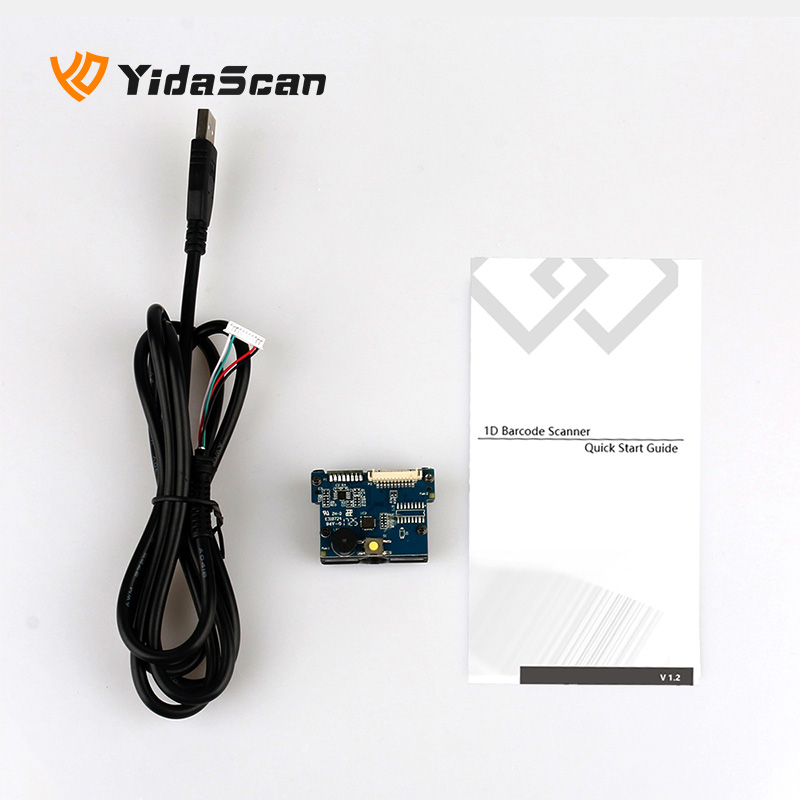

    List of Accessories

    Cable material (optional) USB cable: for connection to scanner and host and for USB communication;RS232 cable: with DC power supply header for connection to scanner and host and for serial communication;USB supply line: to connect scanner and power host and for serial port supply;PS2 cable: for connecting scanner to host and host keyboard for keyboard port communication.
    Power adapter (optional) Output: DC5V 1A, input: AC100~240V 50~60Hz, which can be used for serial port power supply.
