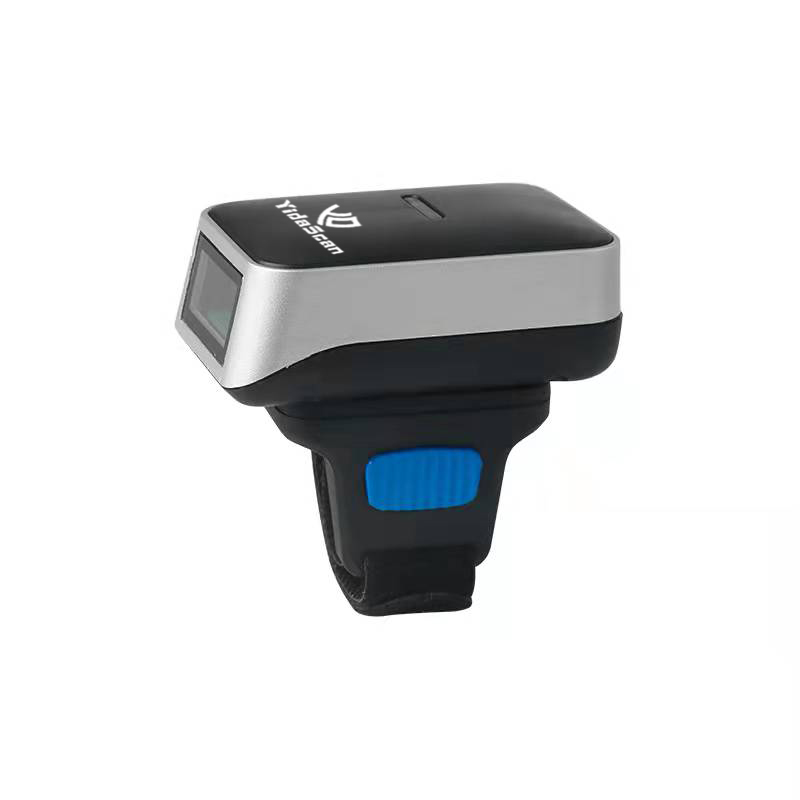

WS20 Laser 2D Bluetooth Wireless Barcode Reader
(1)Features:
• Wearable Design
Convenient wearable design, widely used in warehouse management and express transportation industry. 100,000 data storage capacity.
• Snappy On-screen Barcode Capture
This scanner is capable of reading 1D as well as high-volume 2D barcodes on a screen covered with protective film.
• Working Modes
Support a variety of working modes (Manual Trigger, Auto Scan), can meet different reading needs.
• Operating System
The scanner support IOS, Android, Windows XP、7、 8、 10, Linux, MacOS operating system.
• Exceptional Battery Life

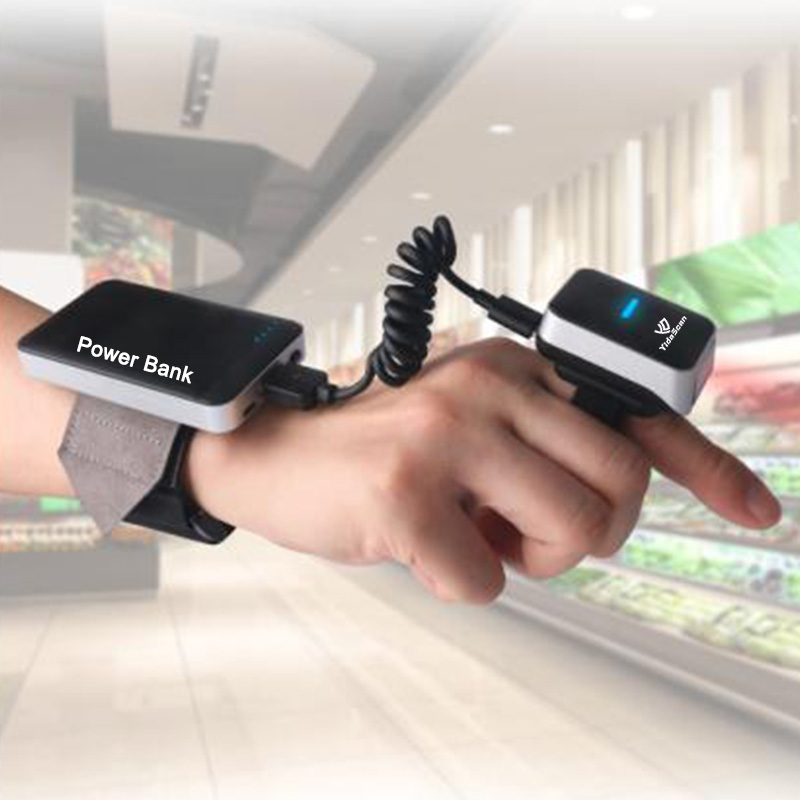

The WS20 tops the charts in wearable ring barcode reader battery life. The expected operating time is 5h, and the estimated charging time is 1.5h. The charging bank can be added to the wrist to extend the operating time.

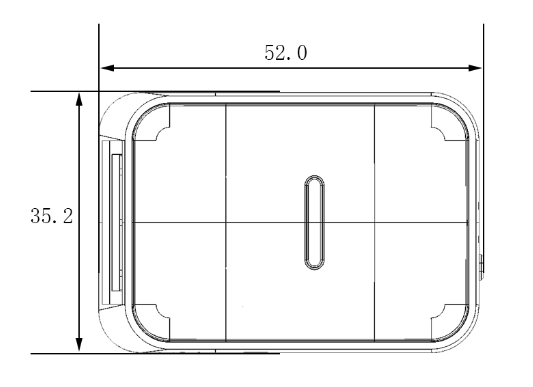

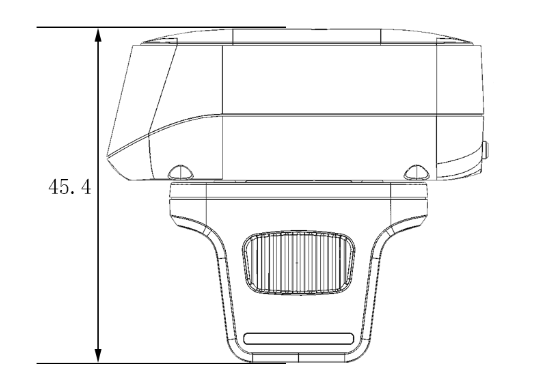

(2).Structure Size: Unit: mm
| Scan Type |
CMOS |
| Light Source |
Lighting: white LED(Automatically adjust brightness according to distance) Aiming:Red LED, wavelength coverage 525nm |
| CPU |
32-bit |
| Start time |
750ms |
| Resolution |
640*480 |
| Reading precision |
1D：≥3mil，2D：≥8.7mil @PCS90% |
| Decoding speed |
25CM/S |
| Visual angle |
Horizontal 40°, Vertical 30° |
| Depth of field |
3mil：55~100mm, 13mil：55~350mm |
| Scan Mode |
Trigger mode, Auto sense mode |
|
Scan angle |
Test Conditions： CODE39,10mil/0.25mm,PCS90% Roll：±360°、Pitch：±60°or greater、Yaw：±70°or greater） |
| Print Contrast Signal | ≥25% |
| Ambient Light | 70000lux |

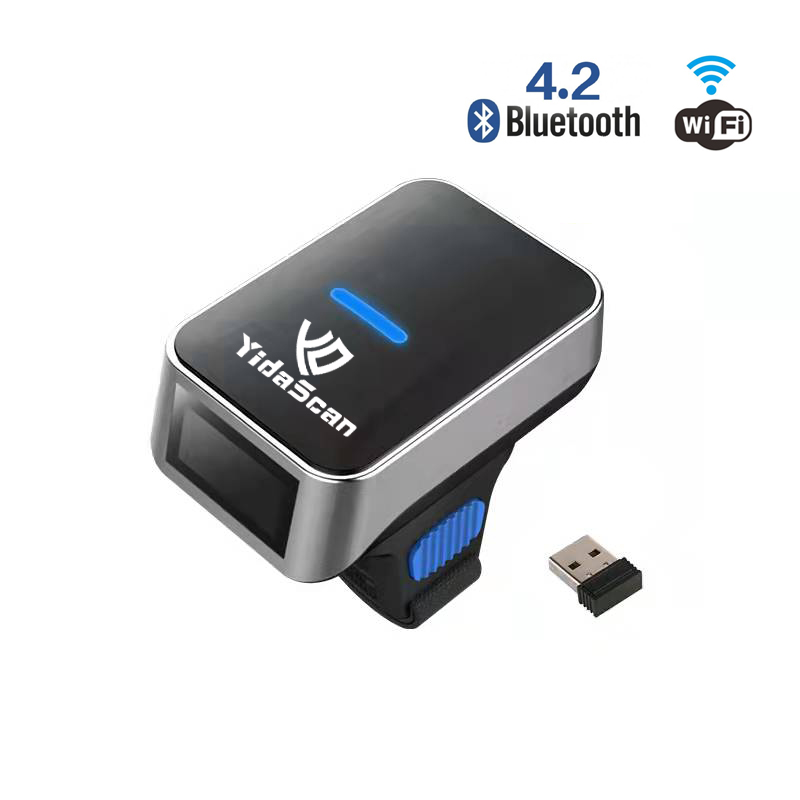

| Communication mode | Wireless 2.4G + Bluetooth 4.2/4.0/3.0/2.1 |
| Storage mode |
Synchronization , storage |
| Transmission distance |
Bluetooth:30m, Wireless:2.4G 150m（Open distance) |
| Storage |
16Mb（over 100,000 barcodes） |
| Battery capacity |
360mAh |
| Battery charging time |
About 1.5h |
| Normal working time |
5h |
| Continuous working time |
≥3h |
| Symbologies | 1D：Codabar、Code39、Code32、Interleaved 2 of 5（ITF25）、Industrial 2 of 5 Industrial 25 code、Matrix 2 of 5、Code93、Code11、Code128、Gs1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、ISBN、ISSN、GS1 databar、GS1 databar limited、GS1 databar expanded、ISBT、MSI、Febraban（Brazil bank code）
2D：PDF417、Micro PDF417、QR Code、Micro QR、Data Matrix、Aztec |
Physical Parameter
| Weight | ≈35g（without cable） |

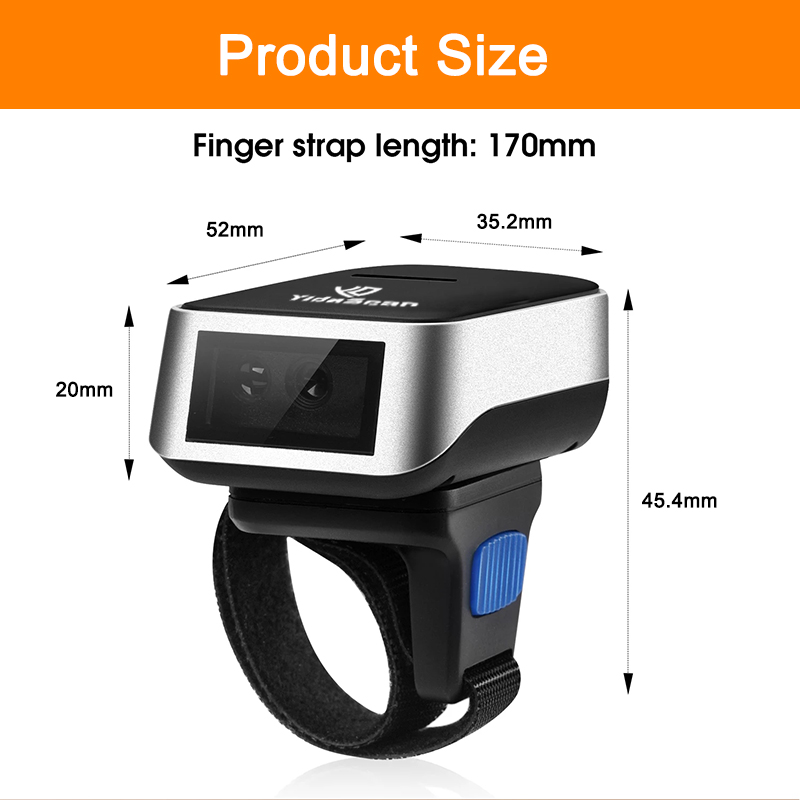

| Dimension | 52mm(L) x 35.2mm(W) x 45.4mm(H) |

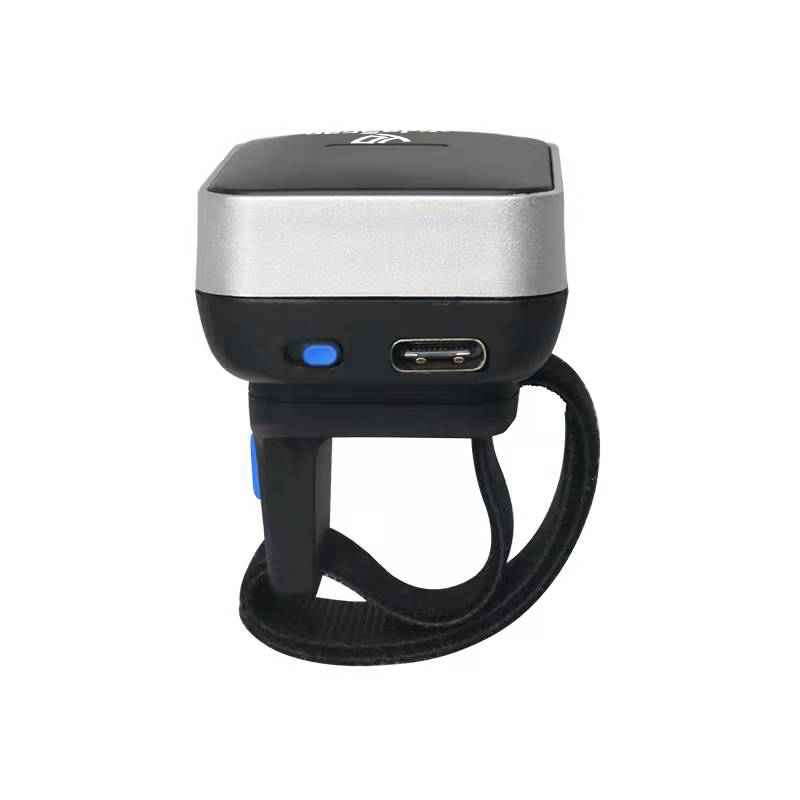

| Interface Type | USB Type-C |
| Power Supply | DC5V, standby current：47mA，Decoded average current：200mA |
Environmental
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%（non-condensing） |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
|
High Temp. |
60℃ |
|
Low Temp. |
-20℃ |
| Transport vibration Test | 10H@125RPM |
Accessories List
| Cable | USB, connect the scanner to a host device and charging. |
| Receiver | Used to receive and transmit scanner data. |
| Charger |
Optional |
| Powerbank |
Powerbank with armband /Armband for mobile ( Optional) |
