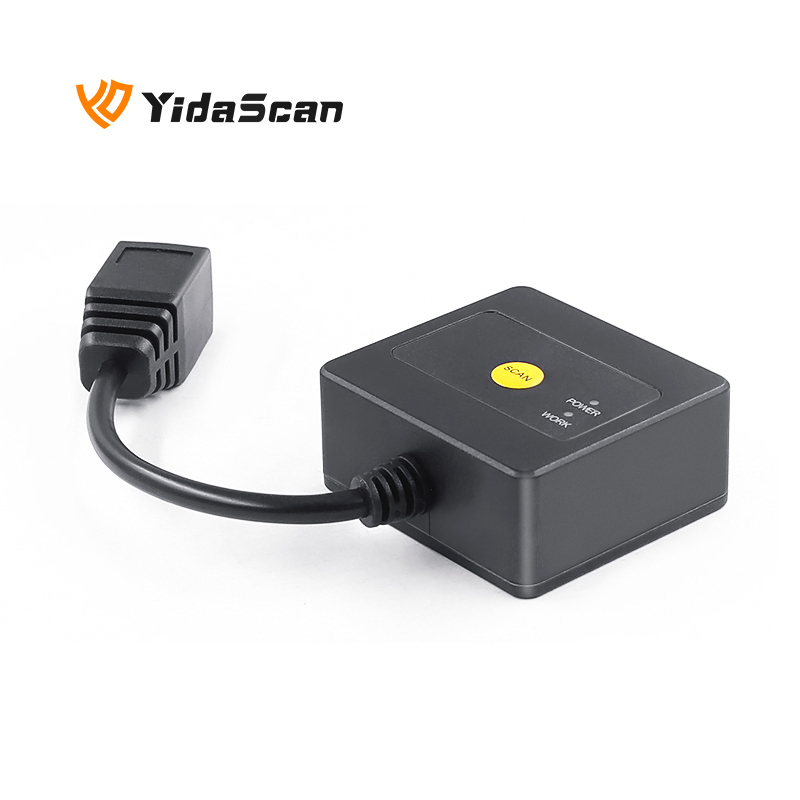

FM22 2D Barcode Reader Fixed Mount Million Pixels

Short Description:

Decode Capability: 1D, 2D

Form Factor: All-in-One

Image sensor: 1280*800 CMOS

Illumination: White light LED

Aimer: Laser 650nm

Dimension: 55.5mm(W)×50.5mm(D)×24mm(H)

Net Weight: 164g

Interface: USB, RS232

Project: Access Control System, Turnstile, Self-service Kiosk, POS Terminal, Mobile Payment, Retail, Healthcare, Transportation & Logistic, Manufacturing

Product Detail



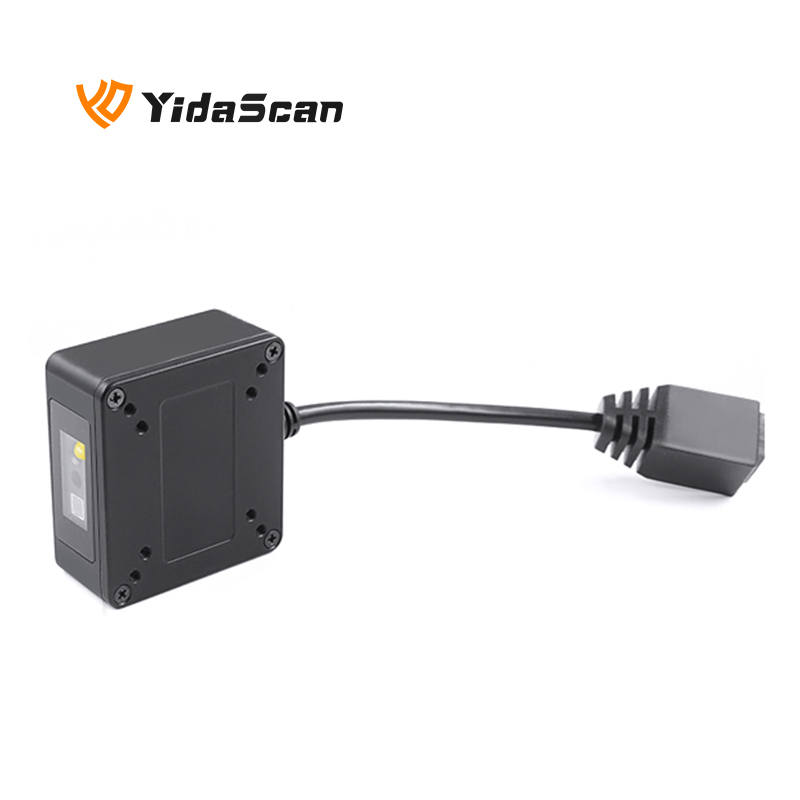

• Ease of Integration

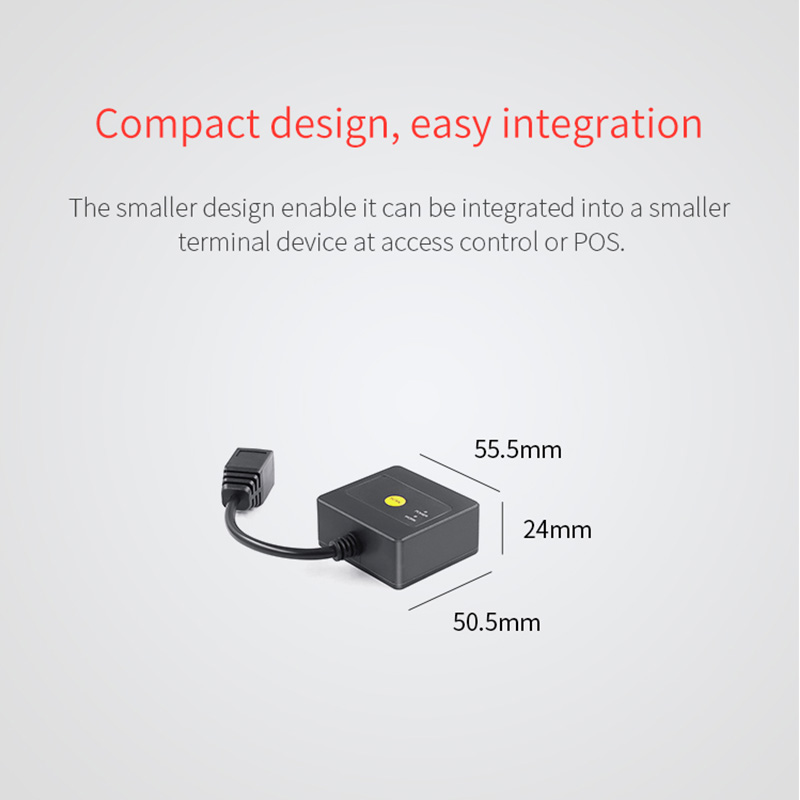

Compact and easy to integrate design. The small form factor enables easy integration into various solutions. The FM22 has an aluminum case that dissipates heat well and IP54 rating meaning it is dust and water resistant.

• Snappy On-screen Barcode Capture
This scanner is capable of reading 1D and 2D QR code on a screen covered with protective film.

• HD Camera Module
CMOS camera module, high-precision bar code reading (3MIL), to easily identify all the mainstream 1d and 2d barcodes in the market. Paper, printing, plastic, mobile phone screen can easily read.

• Working Modes
Support a variety of working modes (manual, induction, command control), can meet the different reading requirements.

• OEM Development

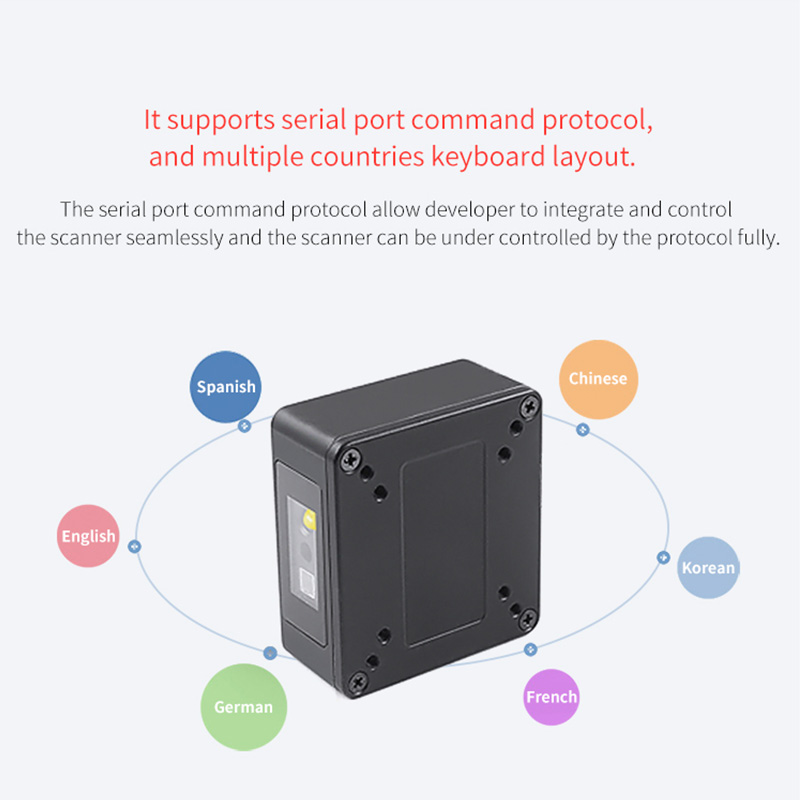

Support for online upgrades, custom development, and secondary development. The serial port command protocol allow developer to integrate and control the scanner seamlessly and the scanner can be under controlled by the protocol fully.

FM22 06 FM22 07 FM22 08 FM22 09

  • Previous:
  • Next:

  • Performance Image Sensor 1280*800 CMOS
    Illumination White LED
    Aimer Laser 650nm
    Symbologies 2D (PDF417)、(Micro PDF417)、(QR Code)、(Micro QR)、(Data Matrix)、(Aztec)
    1D (Codabar)、(Code 39)、(Code 32)、(Interleaved 2 of 5)、(Industrial 2 of 5)、(Matrix 2 of 5)、(Code 93)、(UPC-A)、(Code 11)、(Code 128)、(GS1-128)、(ISBT 128)、(UPC-E)、(ISBN)、(ISSN)、(GS1 DataBar(RSS14))、(GS1 DataBar limited)、(GS1 DataBar expanded)、(EAN/JAN-8)、(EAN/JAN-13)、(ISBT)、(MSI)、(Febraban)
    Resolution* ≥3mil
    Typical Decode Range* EAN-13 (13mil) 40mm~580mm(barcode size:31mm*7mm)
    PDF417 (6mil) 30mm~135mm(barcode size:14mm*7mm)
    Code39 (5mil) 90mm~240mm(barcode size:27mm*8mm)
    Data Matrix(10mil) 70mm~280mm(barcode size:5mm*5mm)
    QR Code (15mil) 40mm~320mm(barcode size:10mm*10mm)
    Min Print Contract* ≥20%
    Scan Angle** Skew±70°,Pitch ±70°,Roll 360°
    FOV Horizontal 42°,Vertical 28°
    Electronic Interface USB、RS-232
    Dimension(mm)Net WeightPacking Weight 55.5(W)×50.5(D)×24(H)164g300g
    Operating Voltage 5 VDC±5%
    Power 1.5W(Typical)
    Current@3.3VDC Operating 200mA(RMS Typical),250mA(RMS Max)
    Standby 8mA
    Environmental Operating Temperature -10℃~+60℃
    Storage Temperature -40℃~+70℃
    Operating Humidity 5%~95%(Non-Condesing)
    Embient Light 0~100,000LUX

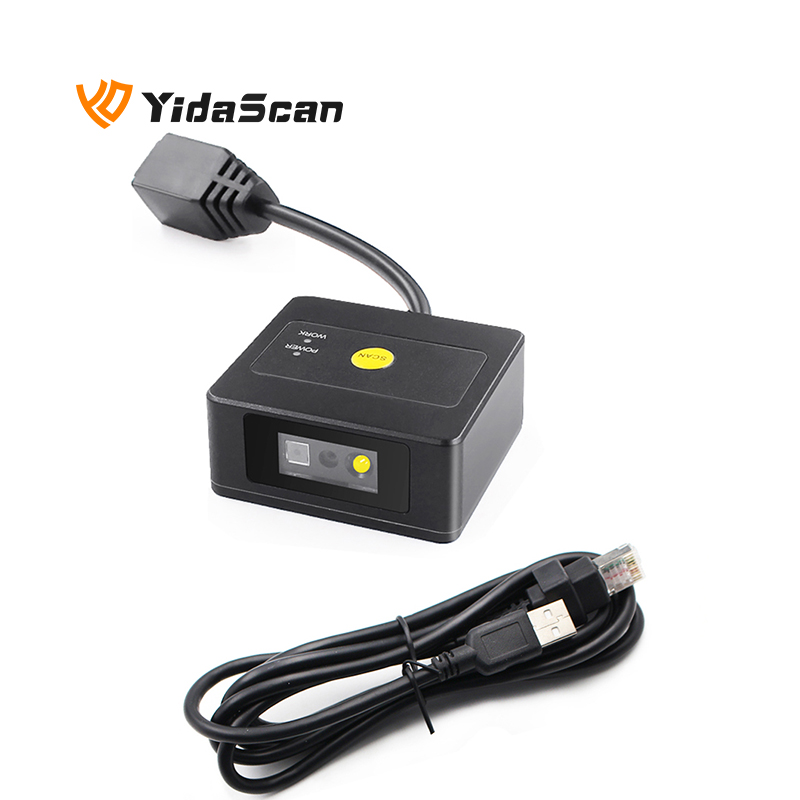

    Accessories Cable USB USB cable

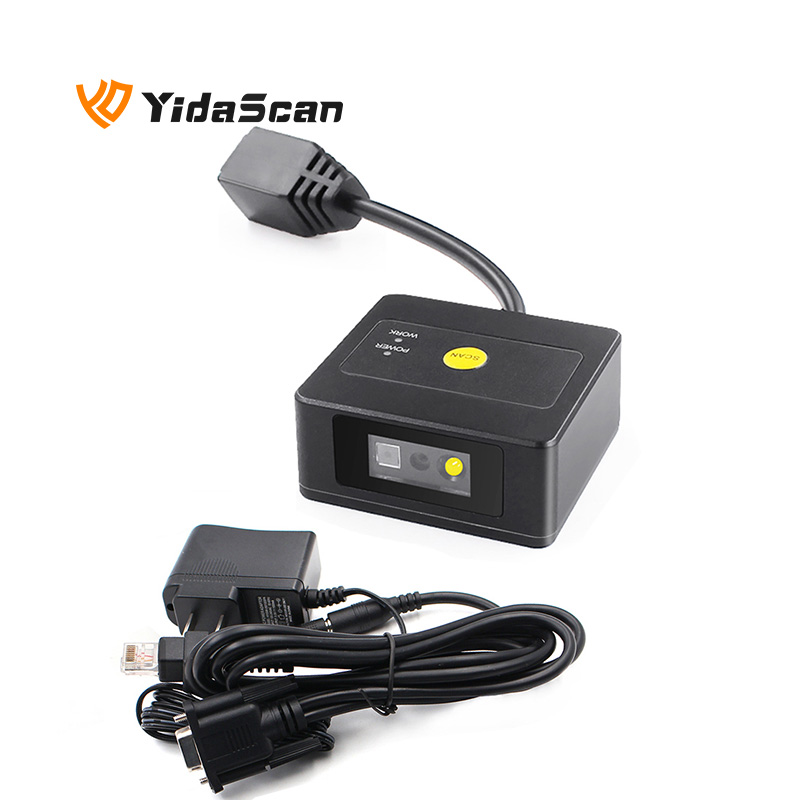

    RS232 RS-232 cable and Power supply

    * Test conditions: ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp; The paper code shall use the test sample code formulated by our company.

    ** Test conditions: Test distance = (minimum depth of field + maximum depth of field) /2; Ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp.
