FM300 2D Fixed Mount QR Code Scanner Kiosk

Short Description:

Decode Capability: 1D, 2D, QR Code

Form Factor: All-in-One

Image sensor: CMOS

Illumination: White light LED

Dimension: 76mm(W)×66mm(D)×64mm(H)

Net Weight: 158g

Interface: USB, RS232, RS485, Wiegand

Project: Self-service Kiosk, Turnstile, Access Control System, Vending Machine, Mobile Payment, Retail, Healthcare, Manufacturing

Product Detail



• Ease of Integration
Compact and easy to integrate design. The small form factor enables easy integration into various solutions. The FM300 has an IP54 rating meaning it is dust -and water resistant.

• Durable Metal Housing
The scanner uses a durable metal housing, making it ideal for self-service applications, like Kiosk.

• Snappy On-screen Barcode Capture
This scanner is capable of reading 1D and 2D QR code on a screen covered with protective film.

• IR Trigger
The IR sensor in the scanner exhibits an improved sensibility in activating the scanner to scan barcodes as they are presented, markedly increasing throughput and productivity.

• OEM Development
Support for online upgrades, custom development, and secondary development. The serial port command protocol allow developer to integrate and control the scanner seamlessly and the scanner can be under controlled by the protocol fully.

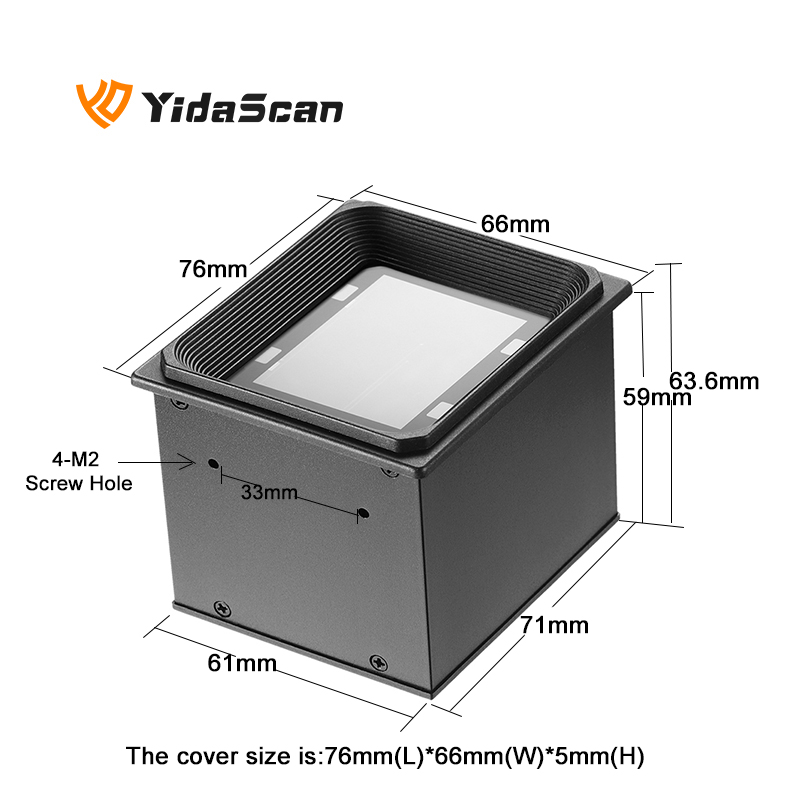

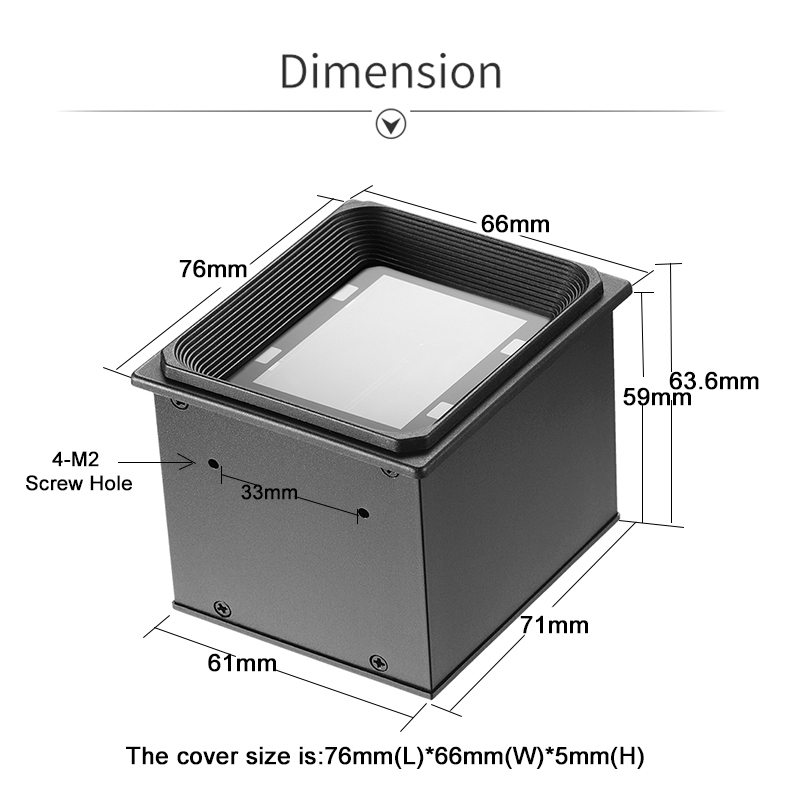

FM300 Dimension(:mm)


External Design

Note: Optical analysis of the housing design ensures optimum scanning or imaging performance.

Design the engine housing so that the aiming and lighting systems do not reflect internally. Reflections from windows or shells can cause problems. For special window tilt angles, these reflections bounce from the top or bottom of the housing and reach the engine. Do not place bright objects around the engine to prevent the tilted window from being reflected into the engine's field of view and appearing in the captured image. Consider using a black matte material inside the bezel or housing.

4.1 Window Positioning
The window is a transparent medium mounted in front of the FM300 scanner that separates the inside and outside of the product and preserves the light path for the scanner to read the barcode. The window should be placed so that the illumination beam and aim beam are ejaculed as far as possible and to prevent reflections from entering the engine. If the lighting beam is reflected into the engine, the engine's readability performance is reduced.
The window should be installed as close as possible to the front of the FM300, and a-0mm.


4.2 Window Size

The window must not block the field of view and should be sized to accommodate the aiming and illumination envelopes shown below.





FM300-05FM300 12 FM300 11 FM300 10 FM300 09 FM300 08

  • Previous:
  • Next:

  • Performance Image Sensor 640*480 CMOS
    Illumination White LED
    Symbologies 2D (PDF417)、(QR Code)、(Micro QR)、(Data Matrix)、(Hanxi code)
    1D (Codabar)、(Code 39)、(Code 32)、(Industrial 2 of 5)、(Interleaved 2 of 5)、(Standard 2 of 5)、(Matrix 2 of 5)、(Code 93)、(Code 11)、(Code 128)、(UPC-A)、(UPC-E)、(EAN/JAN-8)、(EAN/JAN-13)、(GS1 DataBar(RSS14)
    Resolution* ≥5mil
    Typical Decode Range* EAN-13 (13mil) 0mm~70mm(barcode size:31mm*7mm)
    PDF417 (6mil) 0mm~25mm(barcode size:14mm*7mm)
    Code39 (6.6mil) 0mm~25mm(barcode size:34mm*10mm)
    Data Matrix (10mil) 0mm~15mm(barcode size:5mm*5mm)
    QR Code (15mil) 0mm~60mm(barcode size:10mm*10mm)
    Min Print Contract* ≥20%
    Scan Angle** Skew±70°,Pitch±70°,Roll 360°
    FOV Diagonal 52.8°,Horizontal 39°,Vertical 29°
    Electronic Interface USB、RS232 、RS485 、Wiegand
    Dimension(mm)Net WeightPacking Weight 76(W)×66(D)×64(H)(Max)158g330g
    Operating Voltage 4.8 ~ 20 VDC
    Power 1000mW(Typical)
    Current@5 VDC Operating 200mA(RMS Typical),300mA(RMS Max)
    Standby 150mA
    Environmental Operating Temperature 0℃~+60℃
    Storage Temperature -40℃~+70℃
    Operating Humidity 5%~95%(Non-Condensing)
    Embient Light 0~100,000LUX
    Accessories Cable USB USB Cable
    RS-232 RS232 Cable
    TTL TTL Cable
    RS-485 RS485 Cable
    WG Wiegand Cable

    * Test conditions: ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp; The paper code shall use the test sample code formulated by our company.

    ** Test conditions: Test distance = (minimum depth of field + maximum depth of field) /2; Ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp.
