FM700B Barcode Scanner+RFID Card Reader

Short Description:

Decode Capability: 1D, 2D, QR Code

NFC Supported: ISO14443A & ISO14443B & ISO15693

NFC Frequency: 13.56MHz

Form Factor: All-in-One

Image Sensor: CMOS

Illumination: Two Illumination LED+Two Decode Indicator LED

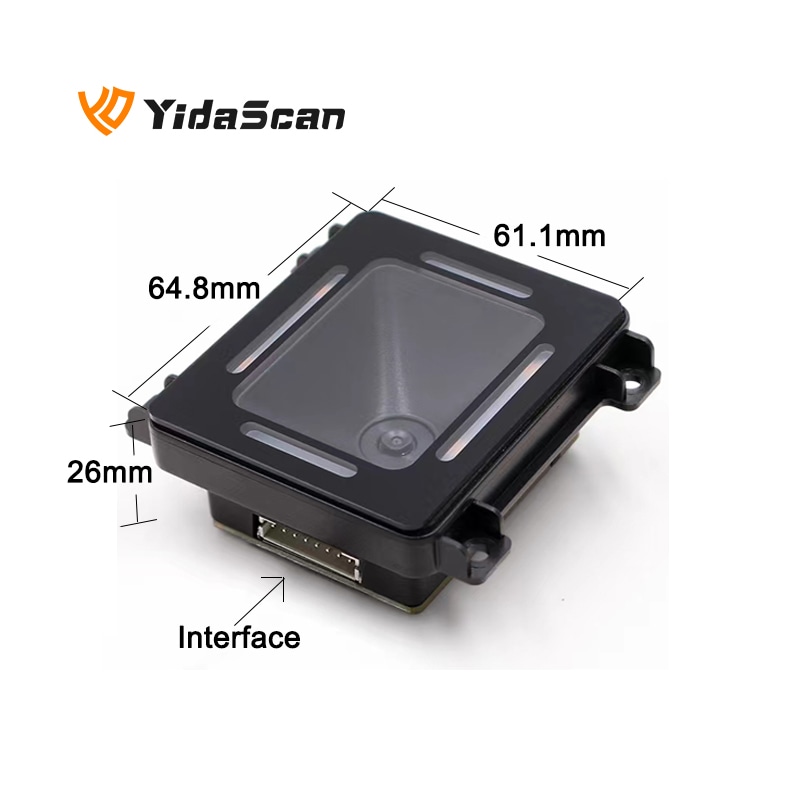

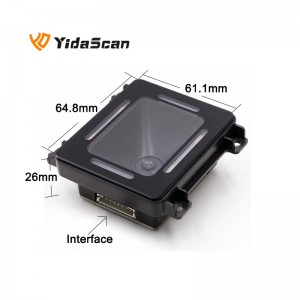

Dimension: 61.1mm(W)×64.8mm(D)×26mm(H)

Net Weight: 30g

Interface: TTL-232, USB, RS-232, RS-485, Wiegand

Project: Self-service Kiosk, Turnstile, Access Control System, Vending Machine, Mobile Payment, Retail, Healthcare, Manufacturing

Product Detail



• Ultra-thin, More Compact Construction
Compact and easy to integrate design. The FM700B is thinner, lighter and more compact, and thus easier to be integrated into any devices.

• Snappy On-printed Paper Barcode Capture
This scanner is capable of reading 1D and 2D QR code on printed paper bar codes from various commodity.

• Supported NFC, more than 20 type of IC cards
The RFID supported protocol is ISO14443A & ISO14443B & ISO15693, the RFID frequency is 13.56MHz.

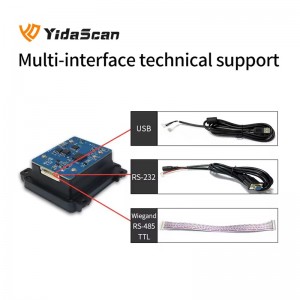

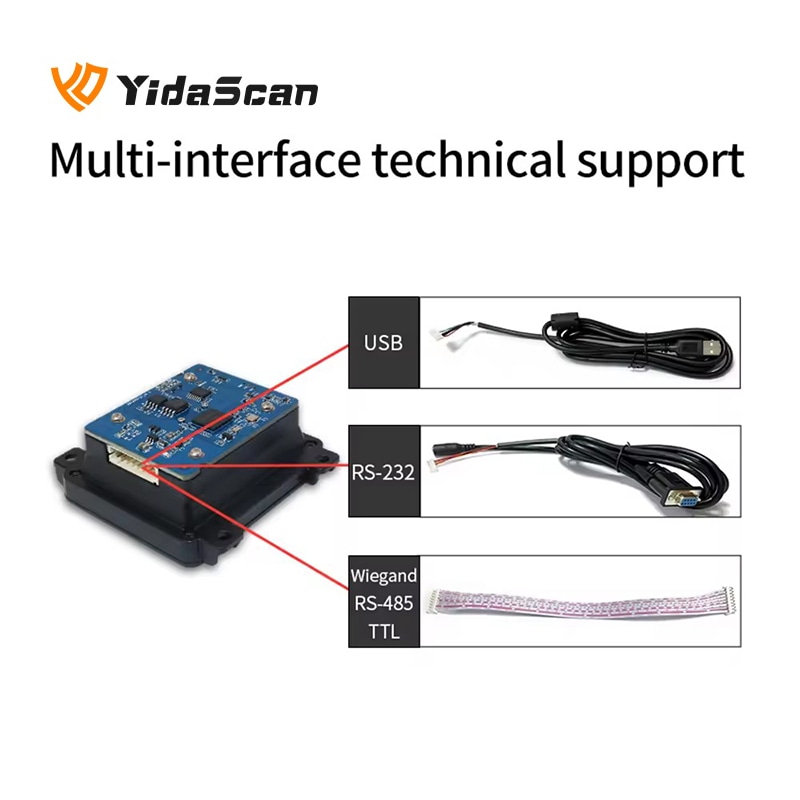

• Multiple Interfaces
The FM700 supports TTL-232, USB, RS-232, RS-485, Wiegand interfaces to meet diverse customer needs.

• OEM Development
Support for online upgrades, custom development, and secondary development. The serial port command protocol allow developer to integrate and control the scanner seamlessly and the scanner can be under controlled by the protocol fully.

  • Previous:
  • Next:

  • Performance Image Sensor   640*480 CMOS
      Illumination   Two Illumination LED+Two Decode Indicator LED
      Symbologies 2D (PDF417)(QR Code)(Aztec)(Micro QR)(Data Matrix)(Hanxi code)
        1D (Codabar)(Code 39)(Code 32)(Interleaved 2 of 5)(Industrial 2 of 5)(Matrix 2 of 5)(Standard 2 of 5)(Code 93)(Code 11)(Code 128)(UPC-A)(UPC-E)(EAN/JAN-8)(EAN/JAN-13)(GS1 DataBar(RSS14))
      RFID (Typical) NFC Range 0mm-40mm
      NFC Protocol ISO14443A & ISO14443B & ISO15693
      NFC Frequency 13.56MHz
      Typical Decode Range* EAN-13 (13mil) 10mm~100mmbarcode31mm*17mm
        Code39 (5mil) 20mm~60mmbarcode25mm*10mm
        QR Code (15mil) 5mm~90mmbarcode8mm*8mm
      Min Print Contract*   ≥20%
      Scan Angle**   Skew:±70°Pitch:±70°Roll:360°
      FOV   Diagonal:87.1°Horizontal:74°Vertical:65°
    Electronic Interface   TTL-232, USB, RS232 , RS485, Wiegand
    Dimension(mm)   61.1mm(W)×64.8mm(D)×26mm(H)
      Net Weight   30g
      Packing Weight   Scanner+USB: 159g, Scanner+RS232: 234g
      Operating Voltage   4.8 VDC-16 VDC
      Power   1500mW(Typical)
      Current@5 VDC Operating 300A(RMS Typical)400mA(RMS Max)
        Standby 130mA
    Environmental Operating Temperature   -10℃~+60℃
      Storage Temperature   -40℃~+70℃
      Operating Humidity   5%~95%Non-Condesing
      Embient Light   0~100,000LUX

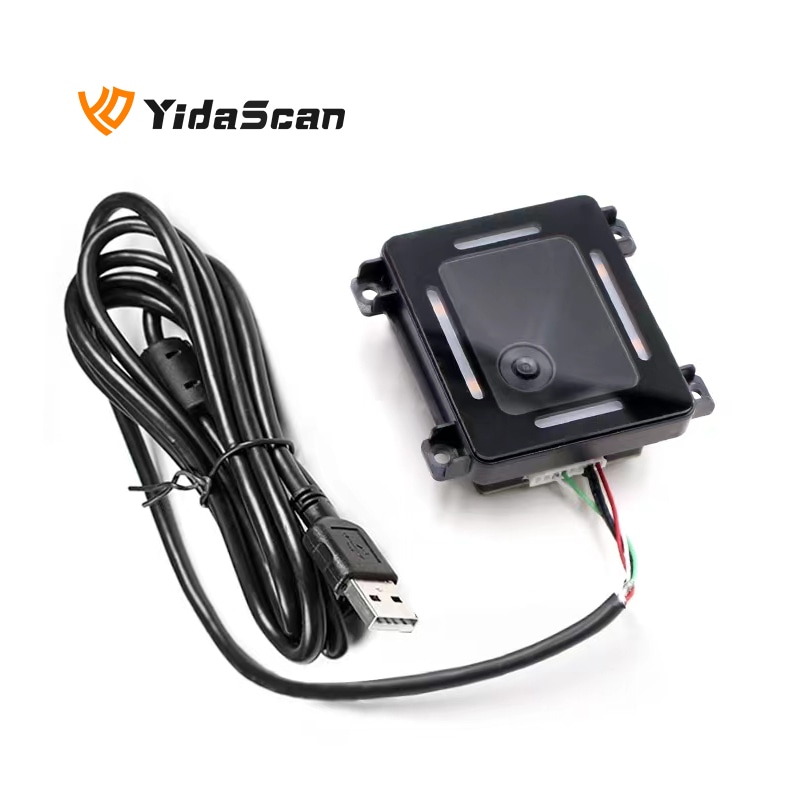

    Accessories Cable USB USB Cable
        RS-232 RS232 Cable

    * Test conditions: ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp; The paper code shall use the test sample code formulated by our company.

    ** Test conditions: Test distance = (minimum depth of field + maximum depth of field) /2; Ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp.
