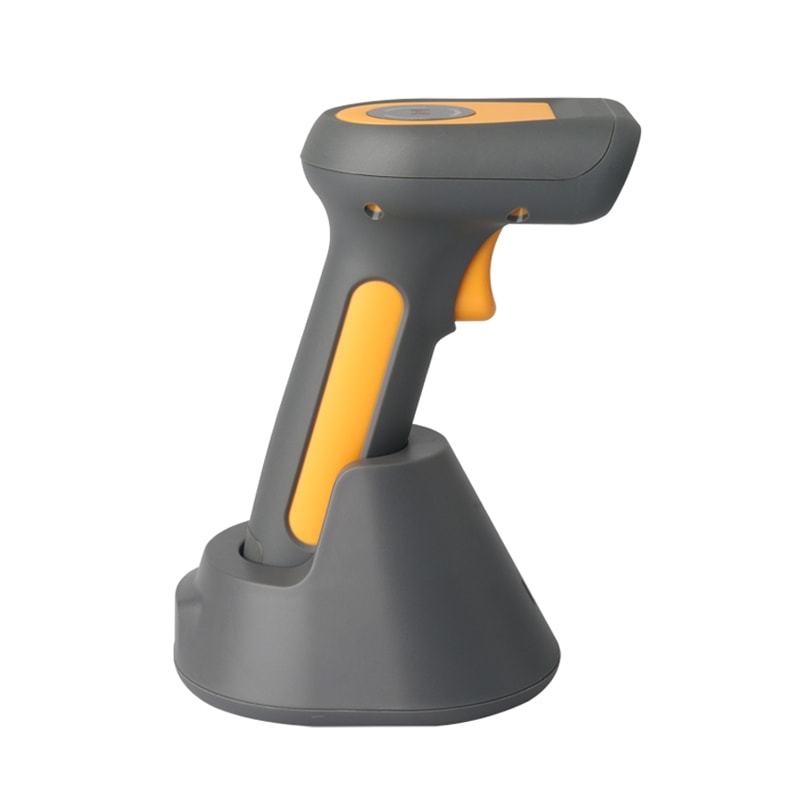

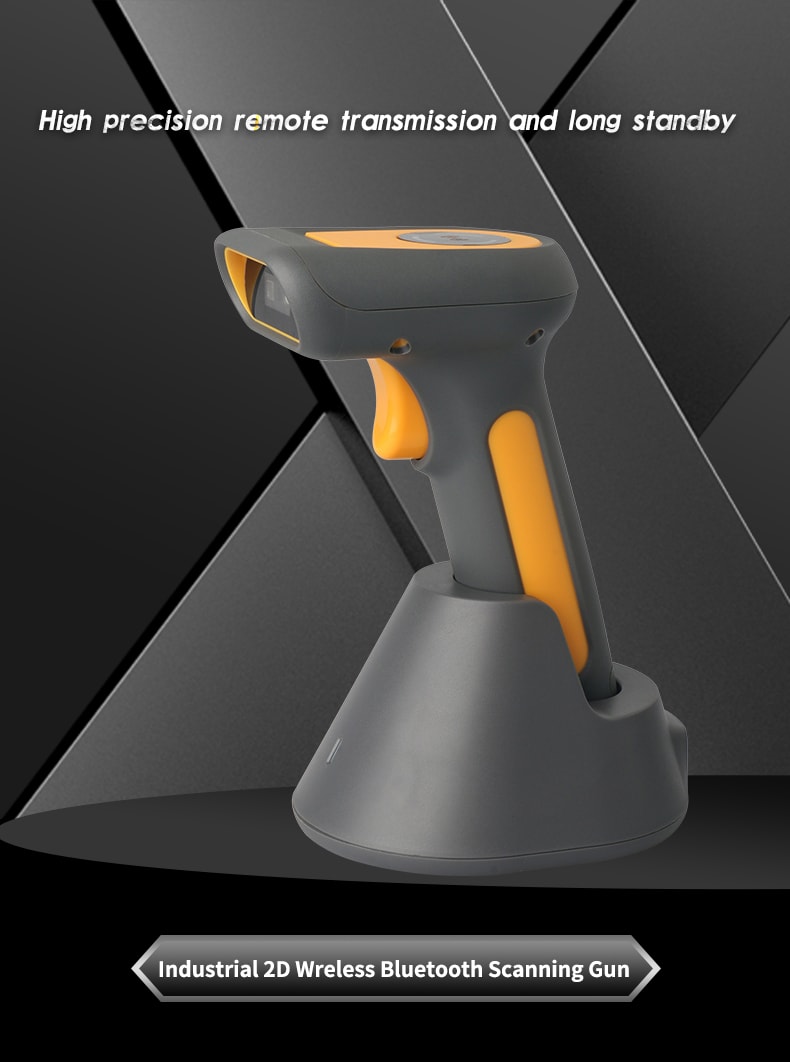

WS88 Industrial Handheld 2D Barcode Scanner Wireless Charging Base

Short Description:

Decode Capability: 1D, 2D

Image Sensor: 1280*960 CMOS

Connectivity: 2.4G Wireless, Bluetooth (HID, SPP, BLE)

Wireless Transmission Distance: 60M

Interface: USB Charging Base(2.4GHz Radio Frequency)

Battery Capacity: 4800MAH

Continuous Scan Time: ≥60hours

Dimension: 153.2(L)mm*66.0(W)mm*110.5(H)mm

Net Weight: 228g(Scanner);216g(Base)

IP Level: IP65

Project: Manufacturing Industry, Warehouse Management, Retail, Mobile Payment, Public Sector

Product Detail


Detail Picture

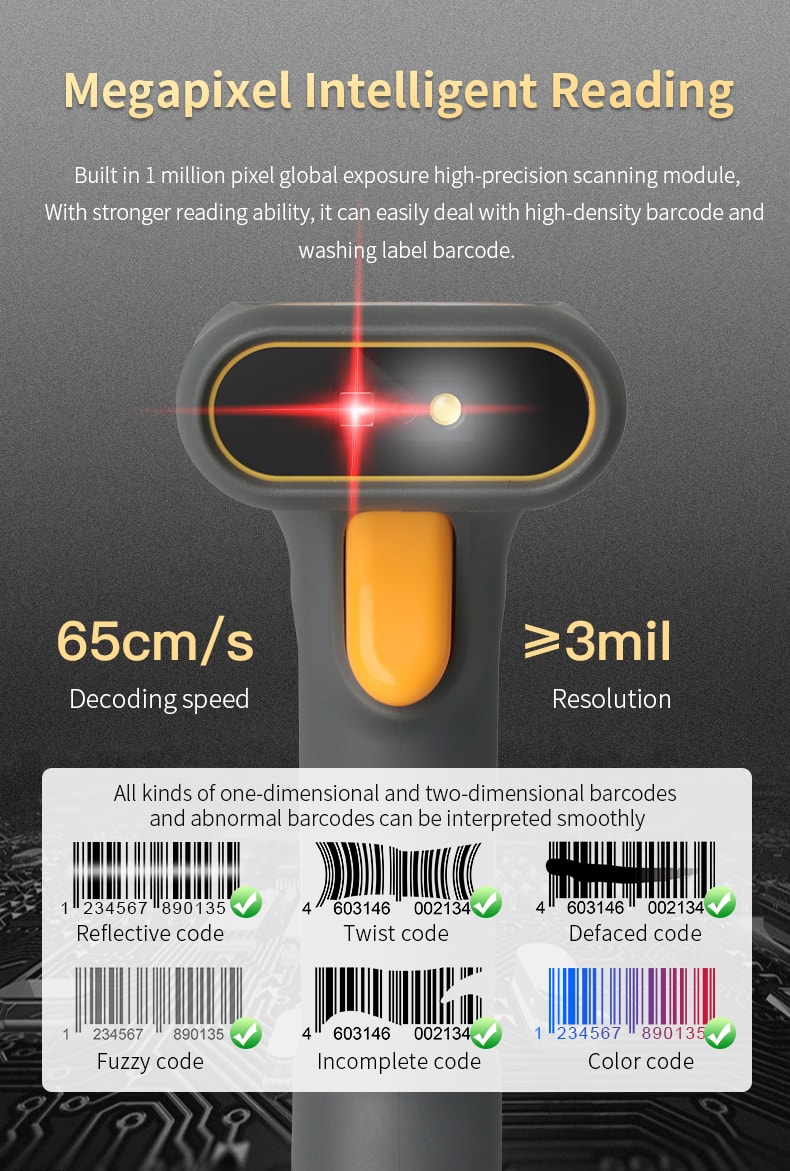

• Megapixel HD Camera (1280*960)
CMOS HD camera module, (1280*960) Megapixel high-precision bar code reading (3MIL), to easily identify all the mainstream 1d and 2d barcodes in the market. Paper, printing, plastic, mobile phone screen can easily read.

• 2.0m Drop Resistance
The scanner withstand 5 drops from 2 meters height.

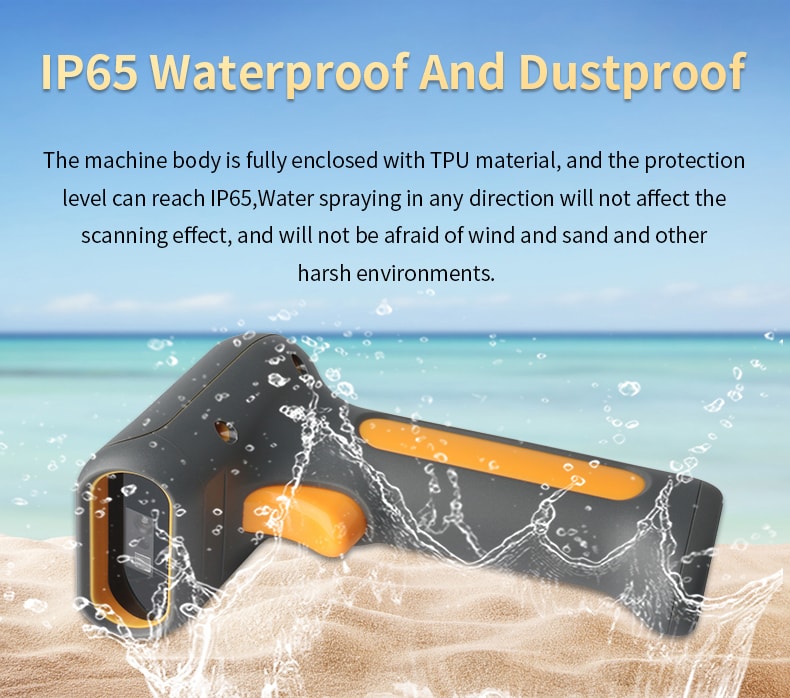

• IP65-rated Sealing
An IP65-rated seal protects the scanner against the ingress of dust, water and other contaminants.

• Working Modes
Support a variety of working modes (Manual Trigger, Auto Scan), can meet different reading needs.

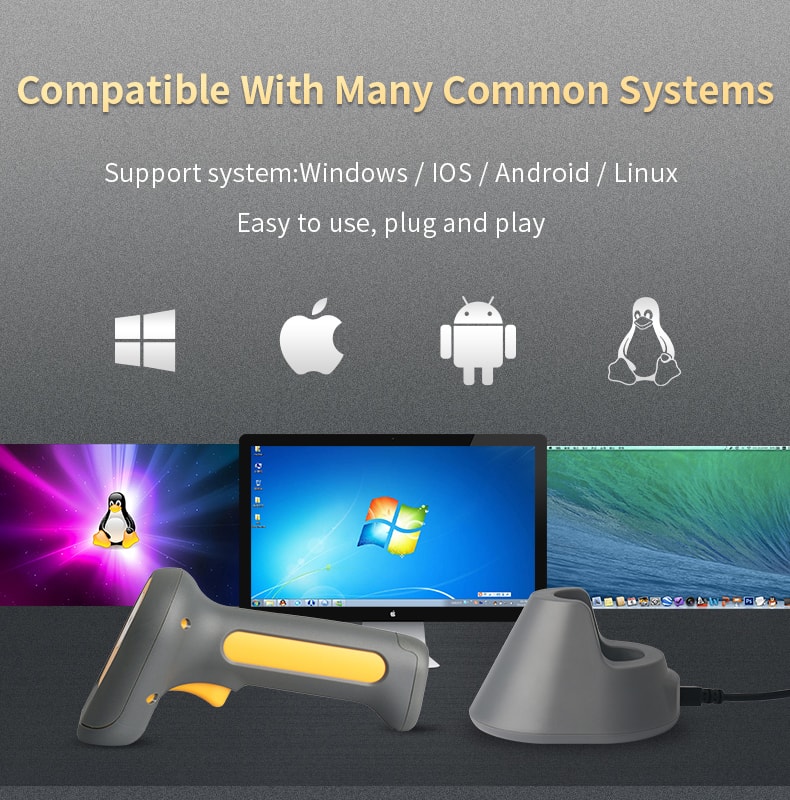

• Operating System
The scanner support Linux,Android,Windows XP、7、 8、 10, IOS, MacOS operating system.

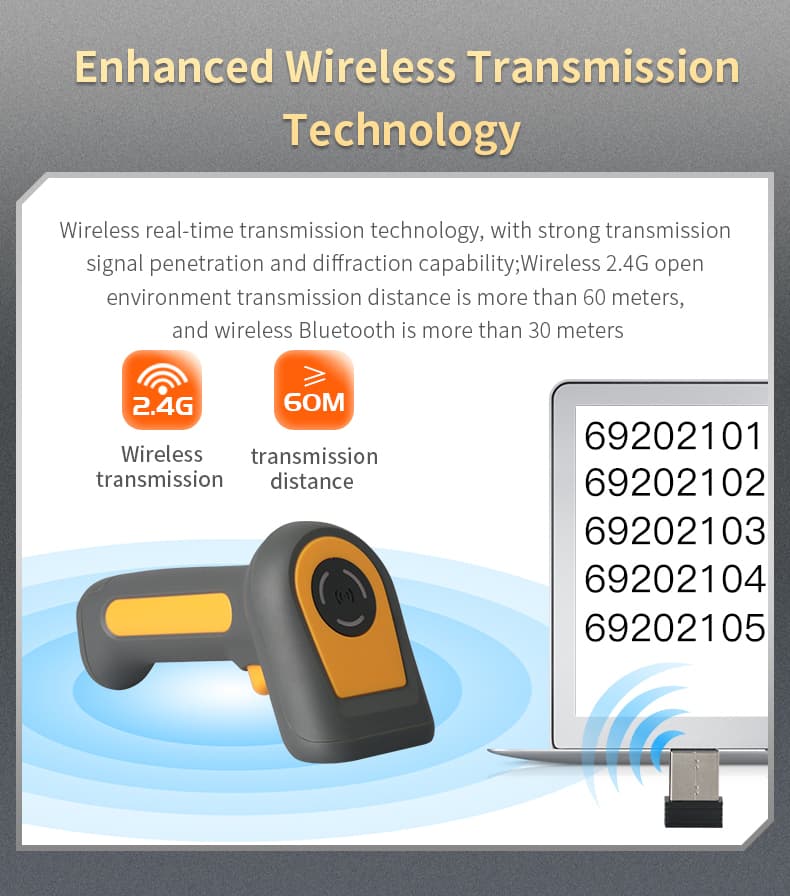

• 60M Wireless Communication Without Interference
Each USB charging base is automatically connected to their specific scanner, removing any need for configuration and making it possible to use lots of scanners in the same area without interference challenges. Additionally, data can be temporarily stored in the scanner itself, ready to send into a database when connected.

• Plug-and-Play Cordless Scanning
Plug the included USB-HID dongle quickly and easily into any device that you need the automatically linked scanner to communicate with. No need to go through any troublesome Bluetooth unpairing & pairing process. With 2.4GHz Radio Frequency technology, the WS88 provides wireless connectivity for up to 60M from the connected USB charging base.

• 4800MAH Exceptional Battery Life
The WS88 tops the charts in cordless handheld scanner battery life. The expected operating time is 60h, and the estimated charging time is 8h. The provided USB charging base allows convenient charging.

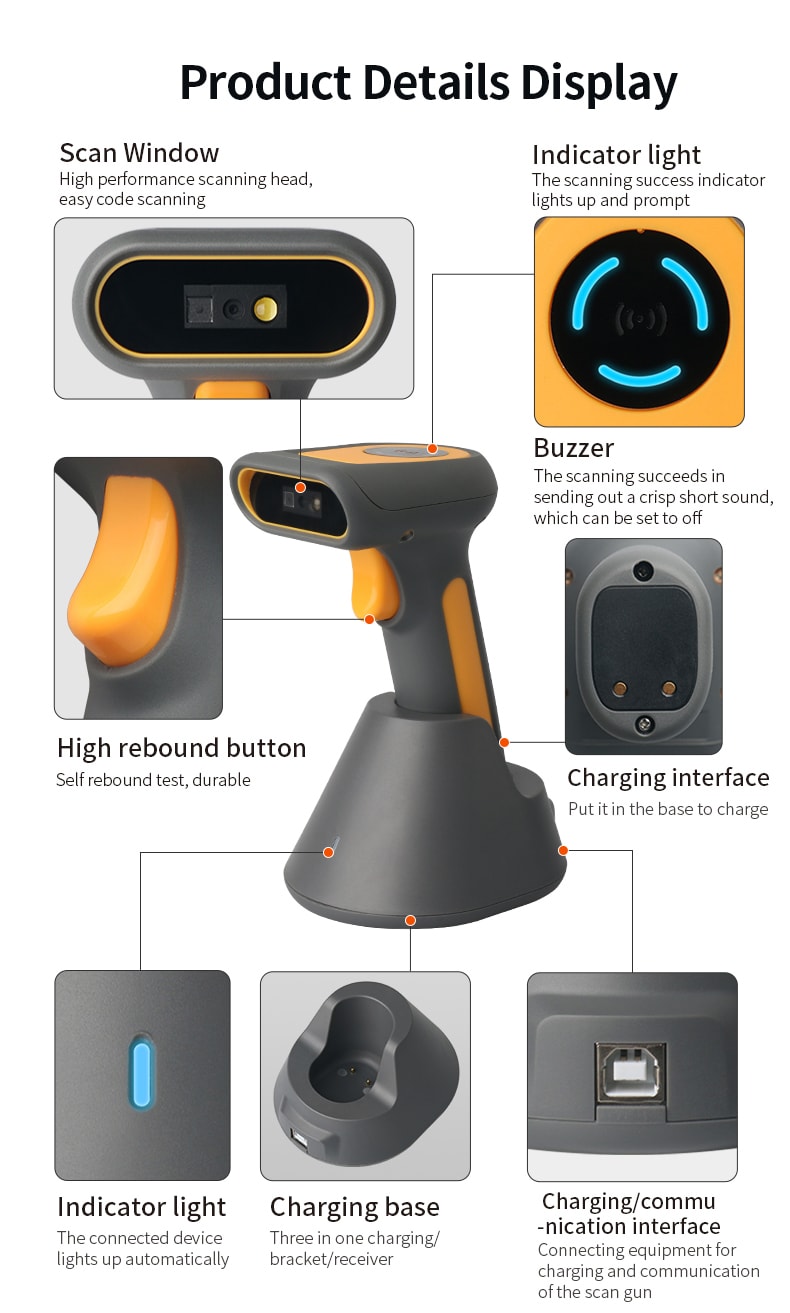

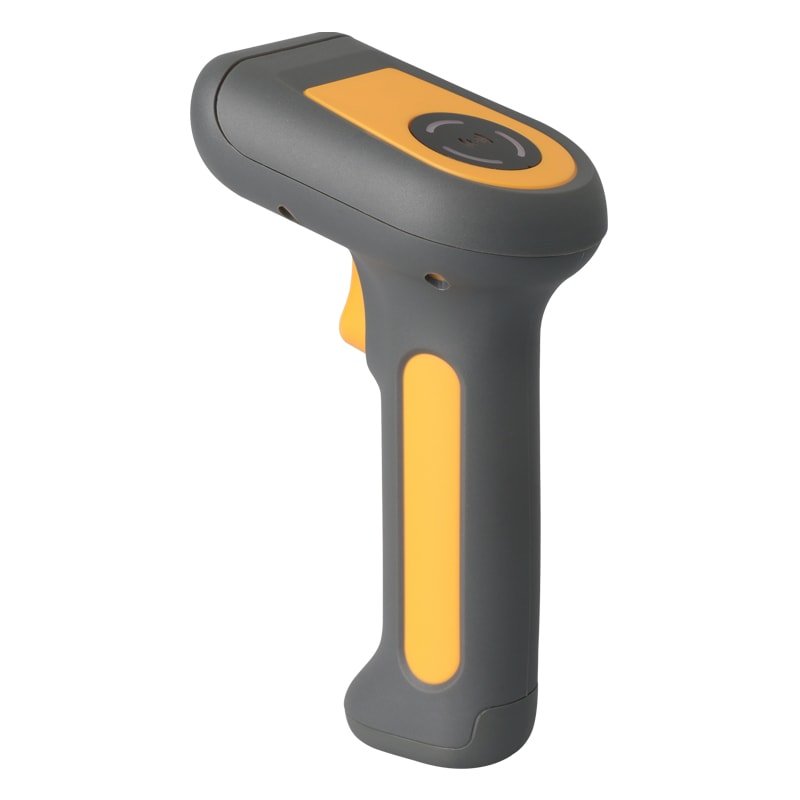

The following picture shows the appearance of WS88-2D. There are LED light and buzzer on the product. The scanning window is used for scanning barcodes. There are some other components such as wire interface and key.

WS80 C1


(3).Wire Drawing: USB (Type B)

Note: The wire can be used for charging and communication.

WS80 C2

(4).Structure Dimension:


  • Previous:
  • Next:

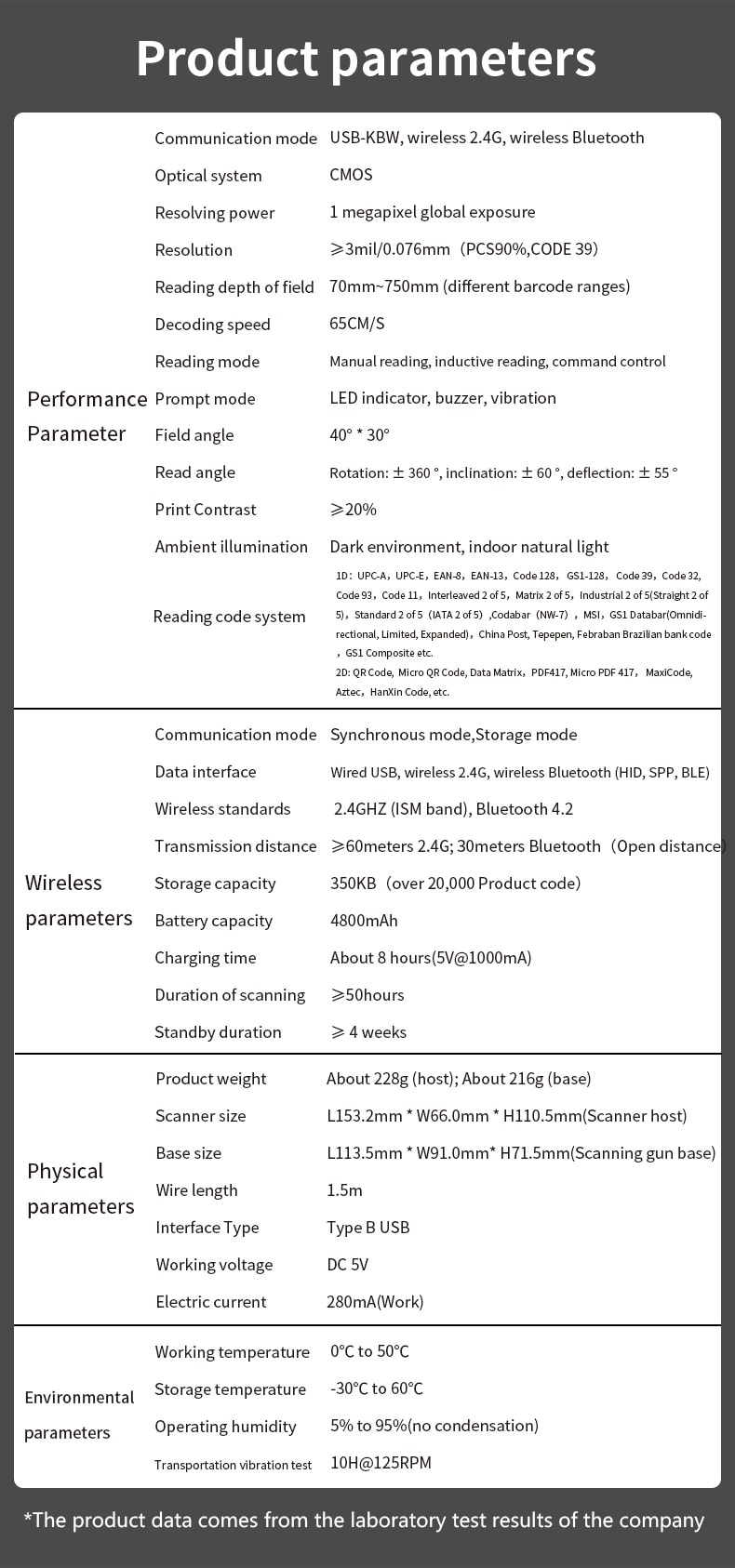

  • Model

    YidaScan WS88

    Communication Mode

    2.4G WirelessBluetooth 4.2


    CMOS, Global Shutter


    1 million megapixel, 1280*960


    White LED

    Reading Precision

    ≥3mil/0.076mm(PCS90%,CODE 39)

    Depth of Field


    Decoding speed


    Scanning Mode

    Manual, Induction

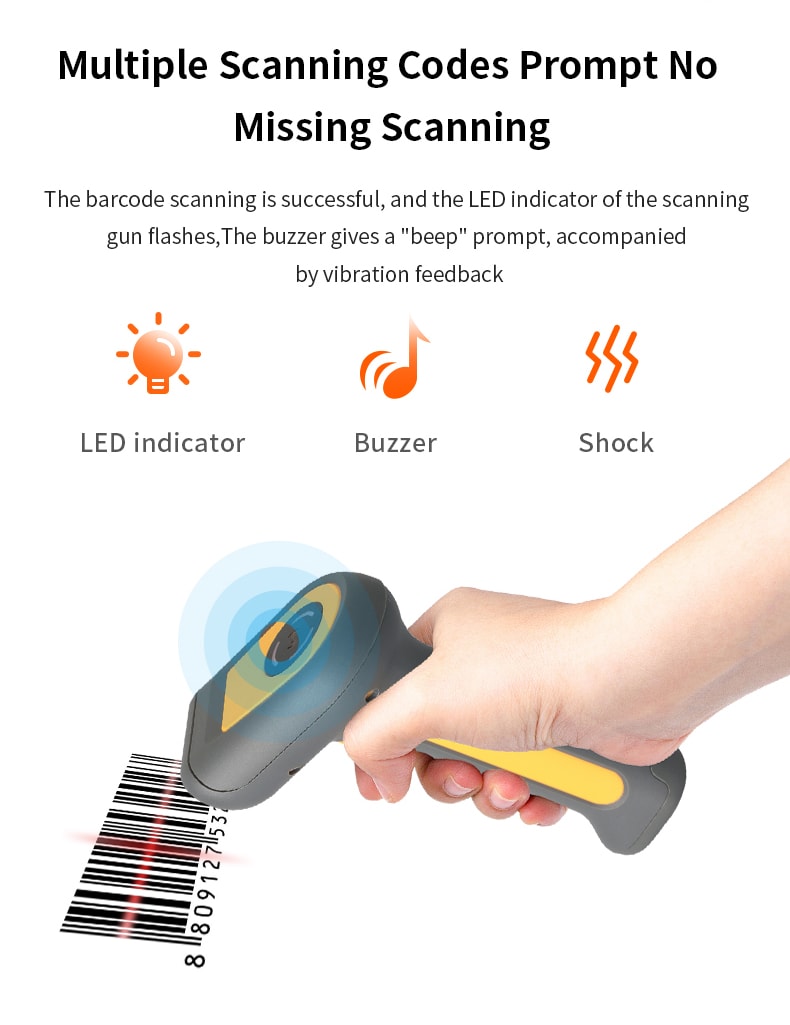

    Prompt Mode

    LED, Buzzer, Vibration


    H40°(Horizontal) * V30°(Vertical)

    Reading Angle

    Roll: ±360°,Pitch:±60°,Skew: ±55°

    CODE39,10mil/0.25mm,PCS90% (Test Conditions)

    Print Constrast


    Ambient Illumination

    Dark Environment,Indoor Natural Light


    1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5(Straight 2 of 5), Standard 2 of 5(IATA 2 of 5), Codabar(NW-7), MSI, GS1 Databar(Omnidirectional, Limited, Expanded), China Post, Telepen, Febraban, GS1 Composite etc.

    2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, etc.

    Wireless Parameters:

    Wireless Communication Mode

    Synchronization mode, storage mode

    Method of Communication

    2.4G,Wireless Bluetooth (HID, SPP, BLE)

    Wireless Standard

    2.4G, Bluetooth 4.2

    Transmit Distance

    ≈60meters 2.4G; ≈30meters Bluetooth 4.2

    Storage Capacity

    350Kb(over 20,000 Product code)

    Battery Capacity


    Charging Time

    About 8 hours(5V@1000mA)

    Continuous Scan Time


    Standby Time

    ≥4 Weeks

    Operating System

    Windows, Android, Mac OS,IOS, Linux, Unix

    Mechanical/Electrical Parameters:

    Net Weight


    Gross Weight


    Product Dimension 153.2mm(L) * 66.0mm(W) * 110.5mm(H)(Scanner)
    113.5mm(L) * 91.0mm(W)* 71.5mm(H)(Base)
    Packed Dimension 230mm(L) * 130mm(W) * 132mm(H)
    Wire Length 1.5 meters
    Interface Type USB (Type B)
    Power Input DC 5V 1A
    Current 280mA(Average Work)

    Working Environment:

    Working Temperature 0℃ to 50℃
    Storage Temperature -20℃ to 60℃
    Working Humidity 5% to 95% (Non-Condensing)
    Transportation Vibration Test 10H@125RPM

    Spare Part List:

    USB Cable It is used for connecting Scanner and Host to communicate and charge.

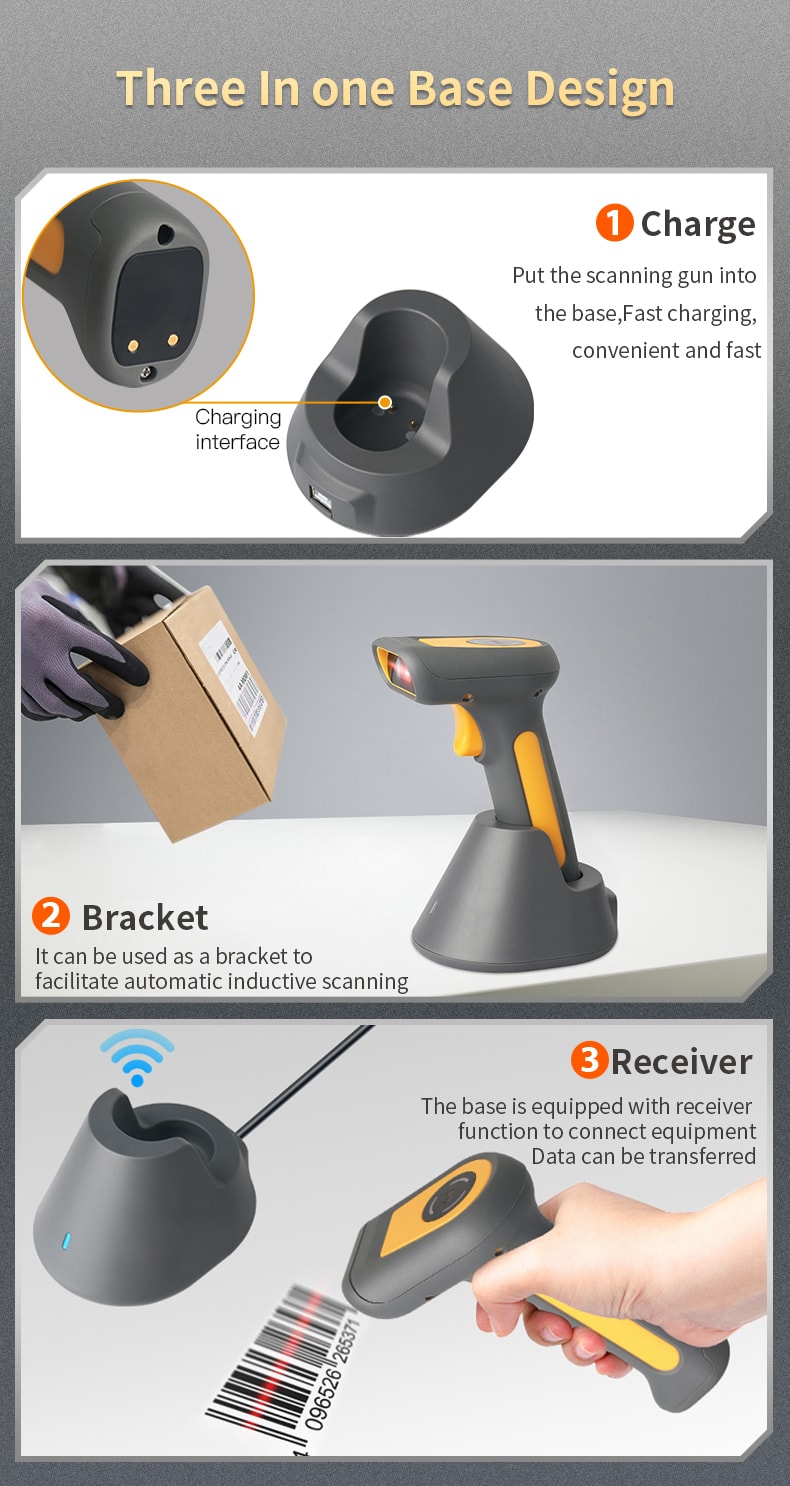

    Base It is used for charge and communication.
    Operating Guide It is used for common function settings.

    **Note: Select different cables according to different interface.**

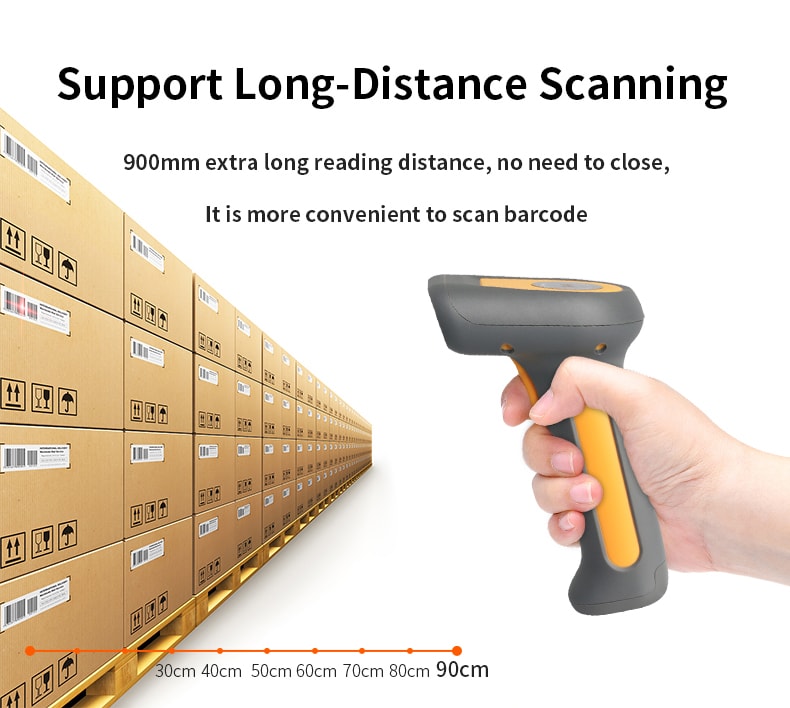

    Depth of Field:

    Barcode Type Barcode Density Minimim Maximum
    Code 39 0.075mm(3mil) 80mm 190mm
    Code 39 0.25mm(10mil) 80mm 420mm
    UPC/EAN 0.33mm(13mil) 70mm 550mm
    WeChat Payment QR Code 6 inches Screen 70mm 650mm
    Alipay Payment QR Code 6 inches Screen 70mm 750mm

    **Testing Conditions: Environment Temperature = 24℃, Ambient Light Illumination = 300LUX; Testing Barcodes Will Be Provided By YidaScan**
    **Notice: There will be no announcement if changing parameters**
    **Shenzhen YIDA Auto-ID Technology Co., Ltd. has the final right to interpret this parameter**
