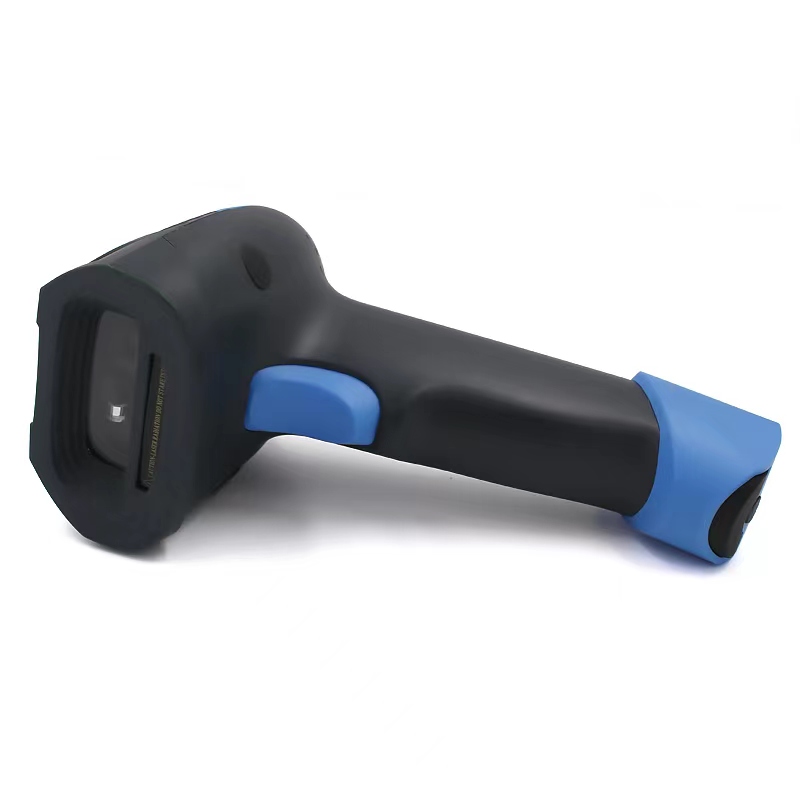

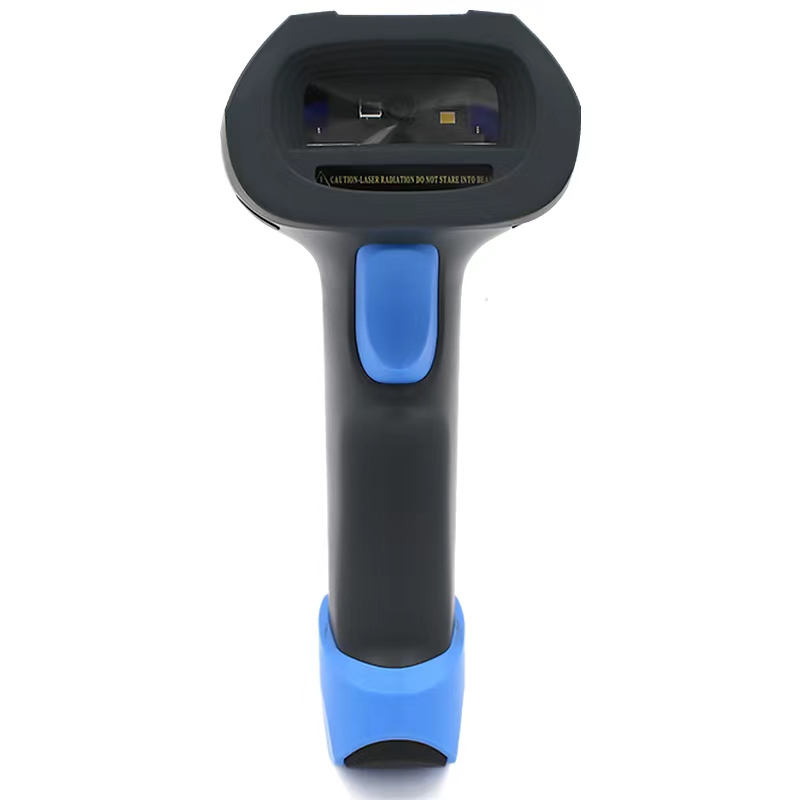

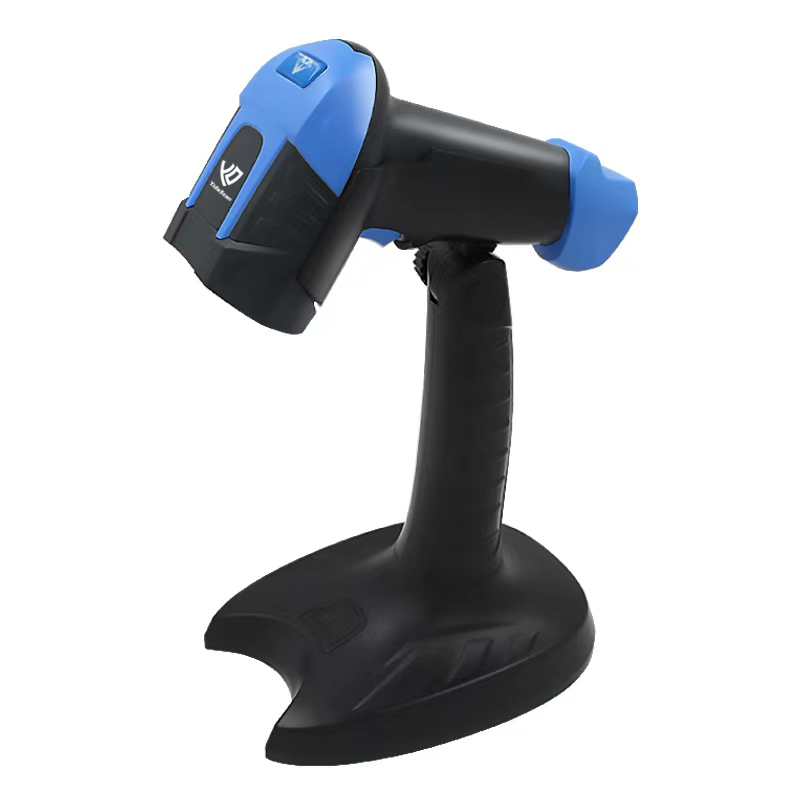

HS100 Megapixel Handheld Barcode Scanner Wired

Short Description:

Decode Capability: 1D, 2D, QR

Image Sensor: 1280*800 CMOS

Connectivity: Corded

Interface: USB, RS232

Dimension: 89mm(L)*70mm(W)*176mm(H)

Net Weight: 123g(No Including Cable)

Resolution: ≥3mil/0.076mm(PCS90%,CODE 39)

Sealing: IP54

Project: Warehouse Management, Retail, Mobile Payment, Public Sector

Product Detail



• High-Performance MCU
Easy to identify all the mainstream 1D and 2D QR, Aztec bar codes in the market.

• Megapixels Resolution
Easy to read bar codes above 3MIL to meet daily scanning needs.

• CMOS Laser Cross Sighting
CMOS laser cross sighting 2D bar code technology, paper, printing, plastic, screen can easily read.

• Automatic Exposure
Megapixels whole exposure camera, automatic exposure, suitable for complex environment.

• Working Modes
Support a variety of working modes (Manual Trigger, Induction Mode), can meet different reading needs.

• IP54-rated Sealing
An IP54-rated seal protects the scanner against the ingress of dust, water and other contaminants.

  • Previous:
  • Next:

  • Performance Sensor 1280*800 CMOS
    Symbologies 1D EAN-8, EAN-13, EAN-13(2 add-on), EAN-13(5 add-on), ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 39 FULLASCII, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, ISBT-128, GS1-128, GS1 DataBar, RSS14, GS1 DataBar Limited, GS1 DataBar Expanded, MSI, Febraban
    2D PDF417, MicroPDF417, MicroQR, QR Code, Data Matrix, Aztec
    Depth of Field Tested code Min Max
    5mil  code39 9cm 24cm
    UPC-13 mil 4cm 58cm
    20 mil  code39 8cm 65cm
    20 mil QR Code 1cm 40cm
    OS Compatibility Linux, Android, Windows XP, 7, 8, 10, MacOS
    Scan Mode Manual Scan, Auto Scan
    Countries Keyboards English, French, Italian, German, Spanish, Finnish, Japanese, Russian, Arabic, Irish, Polish, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish F, Turkish Q , Greek, Belgian-French
    Language Simplified Chinese characters (under Win system)
    Invoice Function Support (only for the Chinese market) (under Win system)
    Min Resolution Code 39 5mil
    Decode Capacity 1D/2D Codes on printed paper and mobile screen
    Motion Tolerance 4 meters/sec
    Print Contrast 25%
    Secondary Development support
    Data Output Editing Prefix & Suffix
    Scan Angle Roll ±360°Pitch ±60°Skew ±70°
    Environmental Drop Withstand 5 drops from 2 meters
    Sealing IP54
    Operating Temperature -20-55℃
    Storage Temperature -20-60℃
    Operating Humidity 5-95% Non-condensing
    Storage Humidity 5-95% Non-condensing
    Ambient Light 0-70000LUX
    Human-computer interaction Indicator Light Blue power indicator, decoding flashes
    Buzzer Start prompt, decoding success prompt
    Trigger Trigger Scan
    Physical parameters Net Weight 123g
    Gross Weight 281g
    Dimension Size 89mm(L)*70mm(W)*176mm(H)
    Packing Size 140mm(L)*89mm(W)*240mm(H)
    Cable Length USB/RS232:180CM(±3CM)
    Interface USB-HID port (free drive),USB virtual serial port (installation driver),RS-232 serial port (free drive)
    Voltage 5V
    USB Manual Scan Standby Power 0.025A/0.125W USBAuto Scan Standby Power 0.143A/0.715W
    Operating Power 0.117A/0.585W Operating Power 0.187A/0.935W
    Max Power 0.171A/0.855W Max Power 0.204A/1.02W
