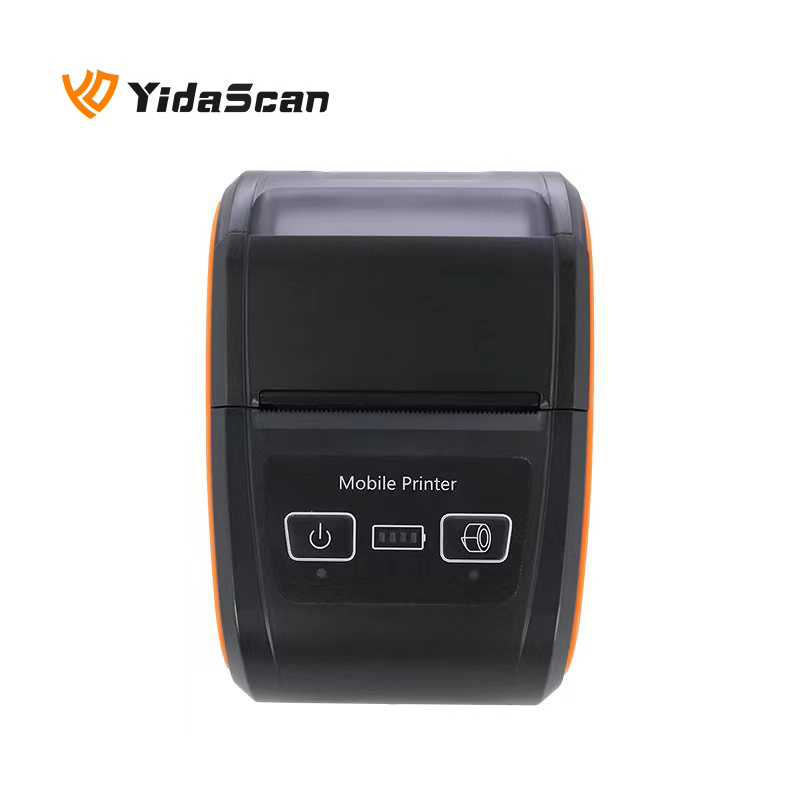

BP01 Portable Bluetooth Printer 58mm
Features:
• Dual-mode Bluetooth 4.0(BR/EDR+BLE), open 55 meters, stable and reliable connection.

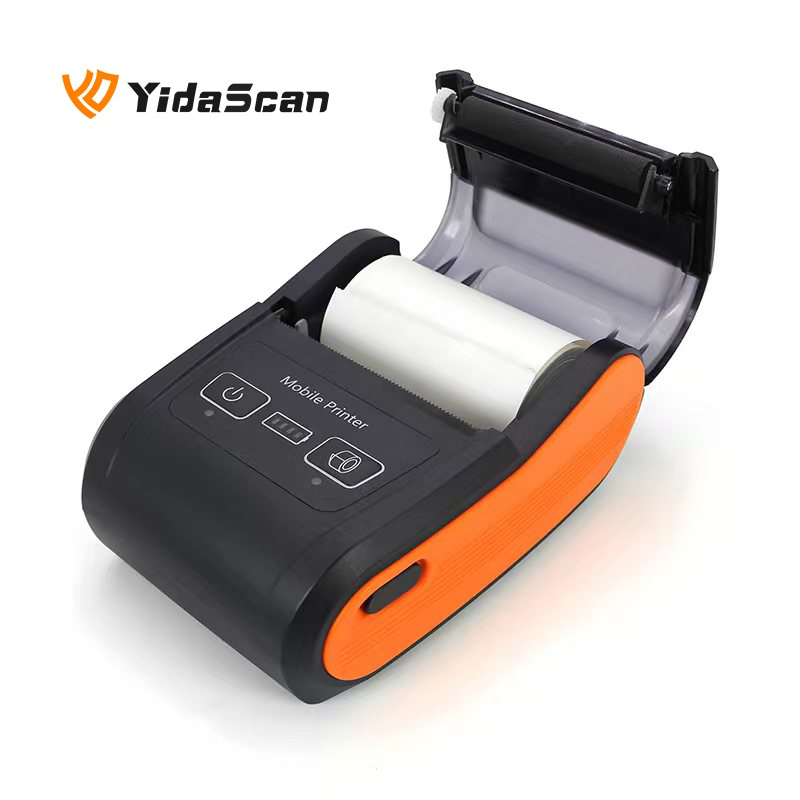

• Easy to open the lid, beautiful ejection lid design.
• No carbon convenient and cost saving.
• Provide SDK for Mobile APP
Our team of engineers can provide you with SDK and test APP, which is convenient for customers to integrate the port and develop their own mobile APP.
• Support Android/IOS system, Android/Apple mobile terminal, bluetooth for easy connection and print fast.
• Support Windows system, PC desktop terminal, USB cable for easy connection and print fast.

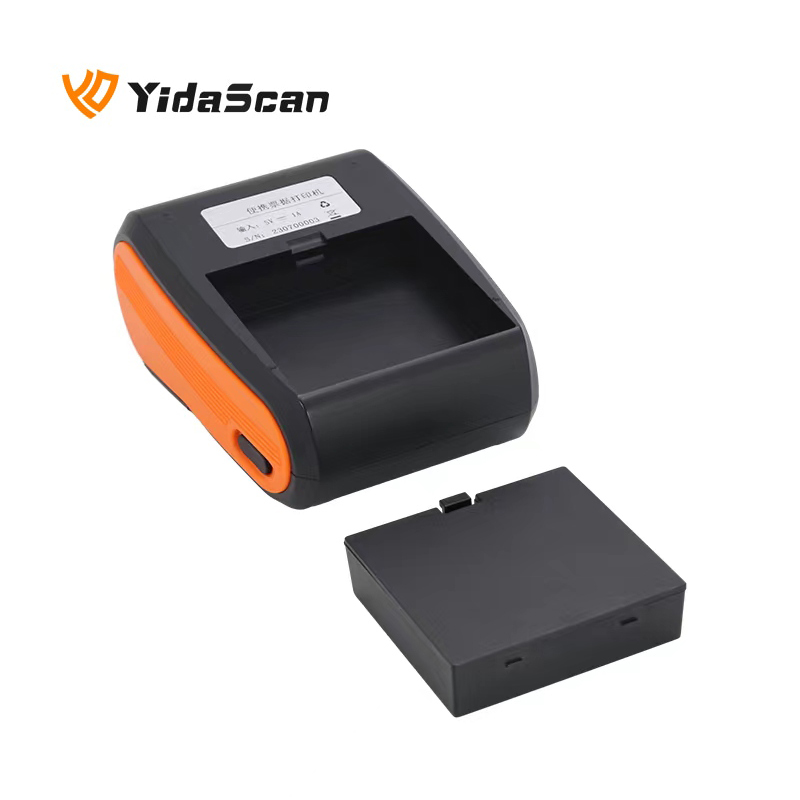

•Long standby, double cell stable and durable
Polymer carp ion electronics 7.4V/1500mAh, built-in power management chip to avoid overcharging, protect the battery, extend battery life.
| Print Function | Printing mode | Line thermal printing |
| 384 points/line | ||
| Point density | 8 points/mm | |
| Print speed | The maximum print speed is 90mm/s | |
| Print width | 48mm | |
| Out of the paper | Direction | |
| Interface | USB-C/ Bluetooth wireless module | |
| Print Font | Typeface | Font A: 12×24Font B: 9×17Chinese characters: 24×24 |
| Character size | Font A: 1.25×3.00mmFont B: 0.88×2.13mmChinese characters:3.00×3.00mm | |
| Character per line | Font A:35/Font B:46/ Chinese character :17 | |
| Character type | Chinese Simplified/Chinese Traditional/American/Japanese/Korean, etc | |
| 1D barcode | UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), CODE39, ITF, CODABAR, CODE93, CODE128 | |
| 2D barcode | QR, PDF417 | |
| Paper Size | Breadth | 58mm(57.5+/-0.5mm) |
| Diameter | ≤41mm | |
| Thickness | 0.048mm~0.08mm | |
| Electrical Specification | Battery capacity | 1500mA |
| Charging standard | 5V / 1A | |
| Battery voltage | 7.4V ~ 8.4V | |
| Appearance | Dimension | 83.6mm(W)*118mm(D)*48.6mm(H) |
| Net Weight | 225g(paper not included) | |
| Reliability | Printer mechanism life | 13 million lines |
| Print head life | 50 km or 108 pulses | |
| Mean time without failure | 3000 hours | |
| Average number of trouble-free print lines | 12 million lines | |
| Drop test | Can with stand multiple drops from 1.0m to the concrete floor | |
| Cash box drive function | no support | |
| Operating Environment | Operating temperature(no condensation) | 0~50℃ |
| Storage temperature(no condensation) | -25~+70℃ (paper not included) | |
| Operating humidity (no condensation) | 20%~85%RH | |
| Operating temperature (no condensation) | 5%~95%RH (paper not included) | |
| Wireless Function Parameter | Bluetooth connection distance | ≥55m (Open lot) |
Note:
* The data in this brochure comes from the laboratory data of YidaScan company, which is different from the actual use data. The technical specifications in the brochure are subject to change without notice.
* Life test conditions: 25℃, heating time ratio is not more than 12.5%.
* Drop test conditions: height drop, appearance, electrical and mechanical performance test, there will be no damage to the structure, but it can be used normally after installation.
