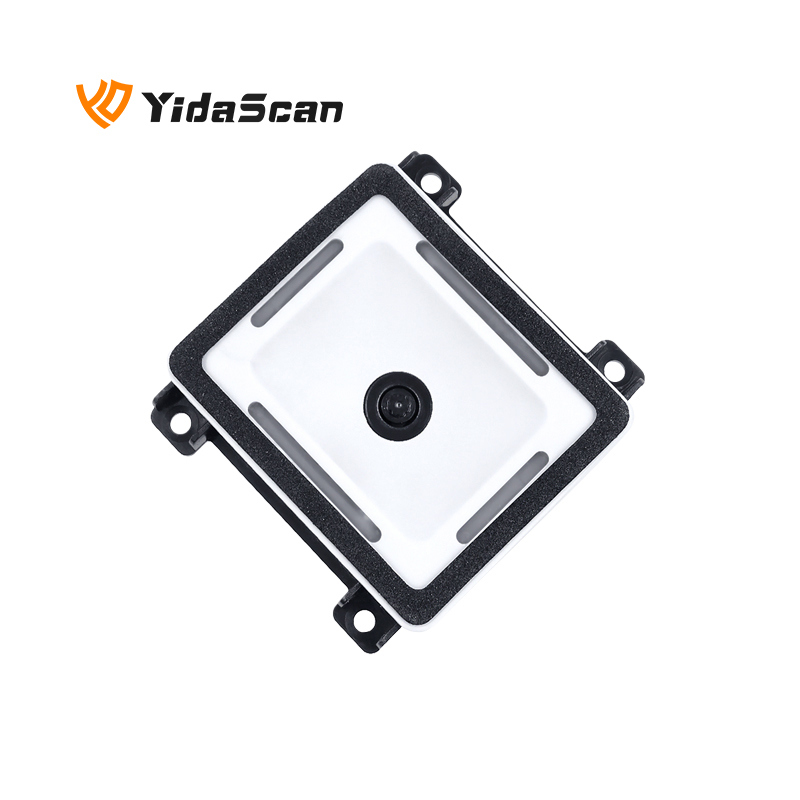

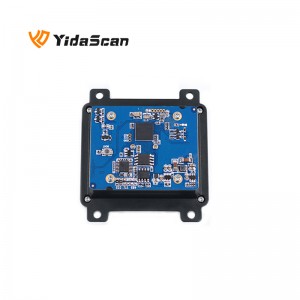

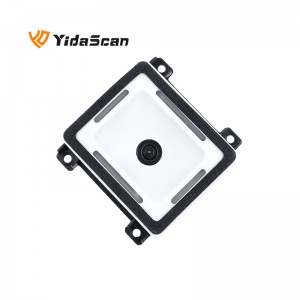

FM700 2D Fixed Mount Scanner Ultra-thin

Short Description:

Decode Capability: 1D, 2D, QR Code

Form Factor: All-in-One

Image sensor: CMOS

Illumination: White light LED

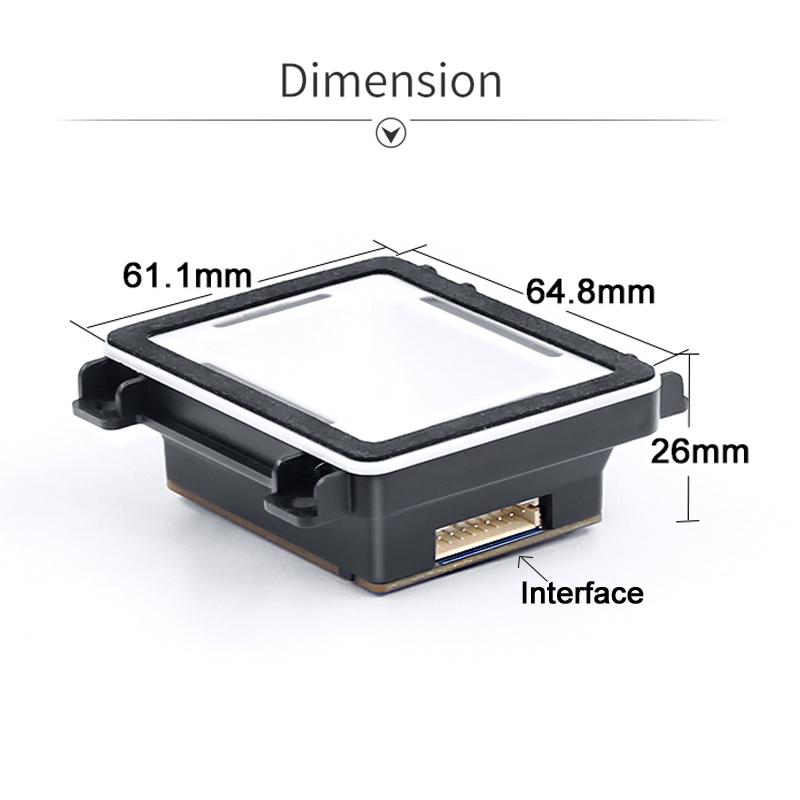

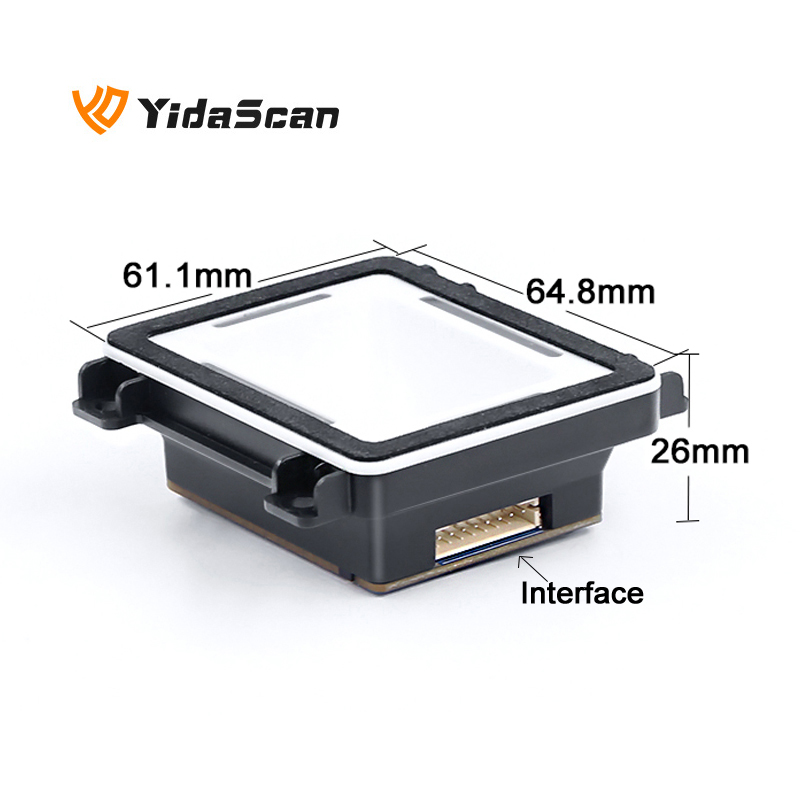

Dimension: 61.1mm(W)×64.8mm(D)×26mm(H)

Net Weight: 29g

Interface: TTL-232, USB, RS-232, RS-485, Wiegand

Project: Self-service Kiosk, Turnstile, Access Control System, Vending Machine, Mobile Payment, Retail, Healthcare, Manufacturing

Product Detail



• Ultra-thin, More Compact Construction
Compact and easy to integrate design. The FM700 is thinner, lighter and more compact, and thus easier to be integrated into any devices.

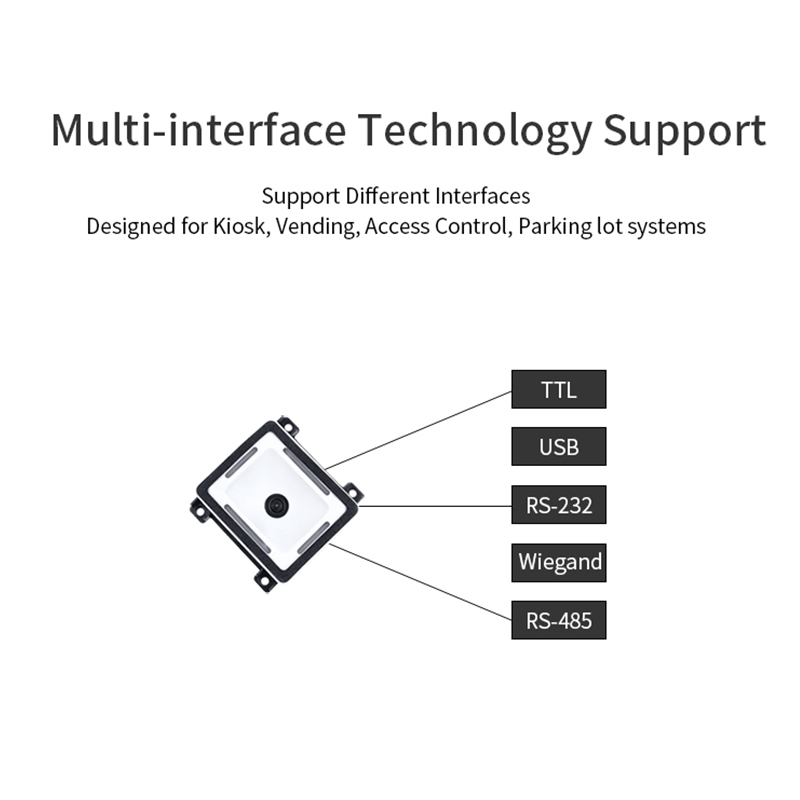

• Multiple Interfaces
The FM700 supports TTL-232, USB, RS-232, RS-485, Wiegand interfaces to meet diverse customer needs.

• Snappy On-screen Barcode Capture
This scanner is capable of reading 1D and 2D QR code on a screen covered with protective film.

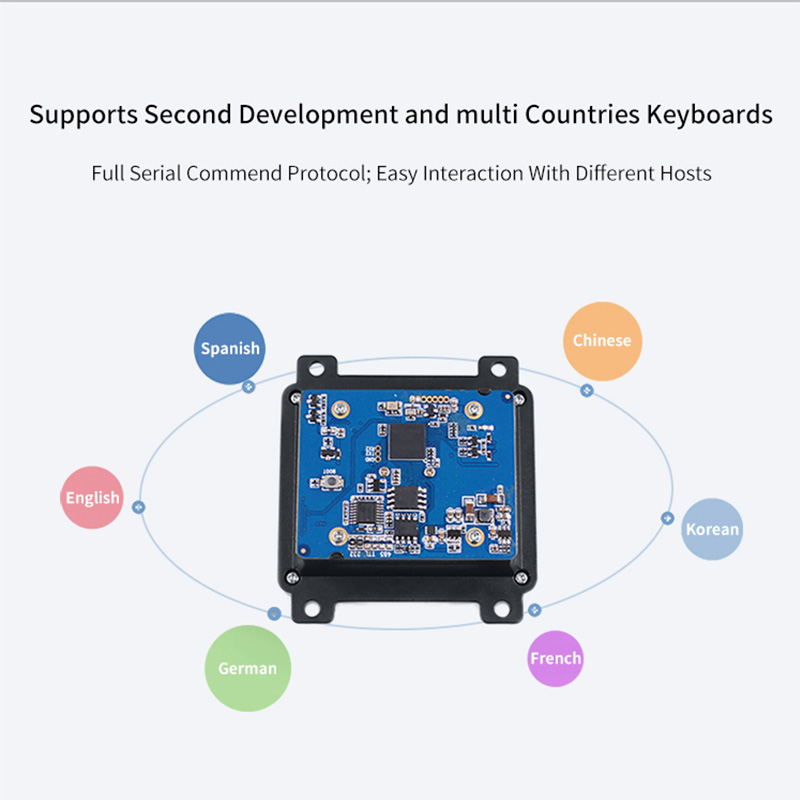

• OEM Development
Support for online upgrades, custom development, and secondary development. The serial port command protocol allow developer to integrate and control the scanner seamlessly and the scanner can be under controlled by the protocol fully.

FM700 05 FM700-10FM700 07 FM700 08 FM700 09 FM700 10

  • Previous:
  • Next:

  • Performance Image Sensor 640*480 CMOS
    Illumination White LED
    Symbologies 2D (PDF417)、(QR Code)、(Micro QR)、(Data Matrix)、(Hanxi code)
    1D (Codabar)、(Code 39)、(Code 32)、(Interleaved 2 of 5)、(Industrial 2 of 5)、(Matrix 2 of 5)、(Standard 2 of 5)、(Code 93)、(Code 11)、(Code 128)、(UPC-A)、(UPC-E)、(EAN/JAN-8)、(EAN/JAN-13)、(GS1 DataBar(RSS14))
    Typical Decode Range* EAN-13 (13mil) 5mm~90mm(barcode:31mm*7mm)
    PDF417 (6mil) 5mm~55mm(barcode:14mm*7mm)
    Code39 (5mil) 18mm~45mm(barcode:27mm*8mm)
    Data Matrix (10mil) 5mm~60mm(barcode:5mm*5mm)
    QR Code (15mil) 5mm~80mm(barcode:10mm*10mm)
    Min Print Contract* ≥20%
    Scan Angle** Skew±70°,Pitch±70°,Roll 360°
    FOV Diagonal 87.1°,Horizontal 74°,Vertical 65°
    Electronic Interface TTL-232, USB, RS232 , RS485, Wiegand
    Dimension(mm)Net WeightPacking Weight 61.1(W)×64.8(D)×26(H)29gUSB:159g, RS232:234g
    Operating Voltage 5VDC±5%
    Power 1050mW(Typical)
    Current@5 VDC Operating 210A(RMS Typical),250mA(RMS Max)
    Standby 150mA
    USB Standby Power 119mA/0.545W
    Operating Power 145mA/0.565W
    MAX Power 187mA/0.8W
    RS232 Standby Power 120mA/0.545W
    Operating Power 156mA/0.565W
    MAX Power 171mA/0.8W
    Environmental Operating Temperature -10℃~+60℃
    Storage Temperature -40℃~+70℃
    Operating Humidity 5%~95%(Non-Condesing)
    Embient Light 0~100,000LUX
    Accessories Cable USB USB Cable
    RS-232 RS232 Cable

    * Test conditions: ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp; The paper code shall use the test sample code formulated by our company.

    ** Test conditions: Test distance = (minimum depth of field + maximum depth of field) /2; Ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp.
