AV300 Indoor Panoramic Bulb Camera 3 Million Pixels

Short Description:

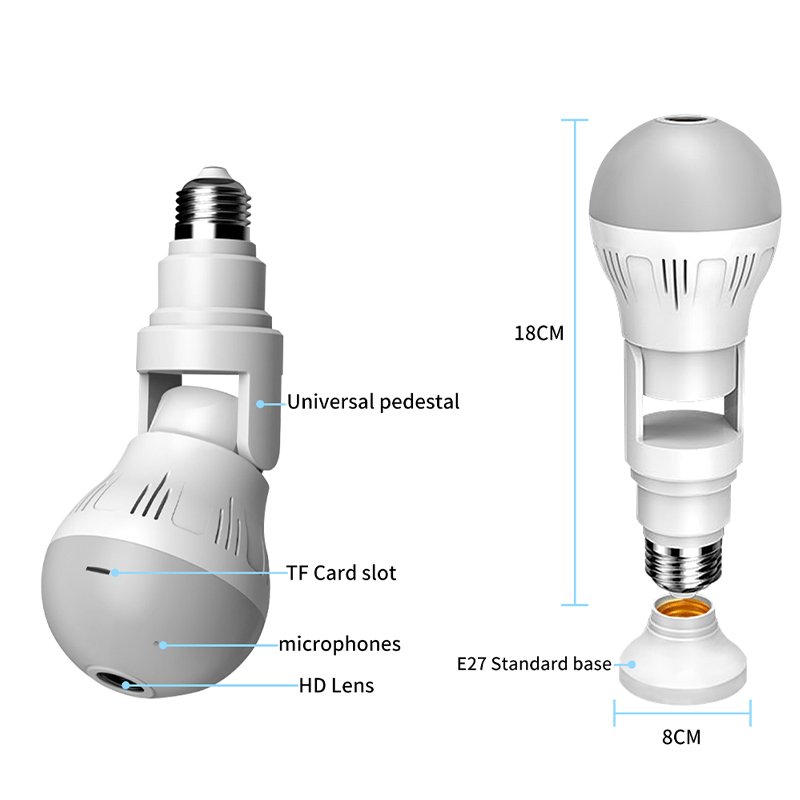

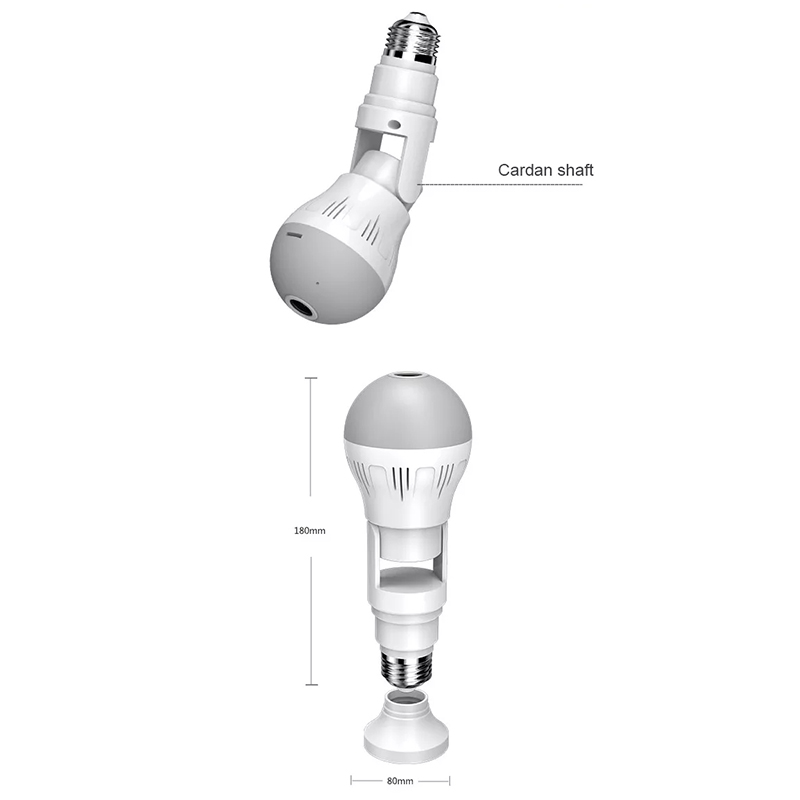

1. Product Size: 18cm(L)*8cm(W)

2. Packing Size: 16.5cm(L)*10.5cm(W)*8.5cm(H)

3. Gross Weight: 0.35kg

4. Lens: Panoramic lens, Focal length:1.35±3%mm

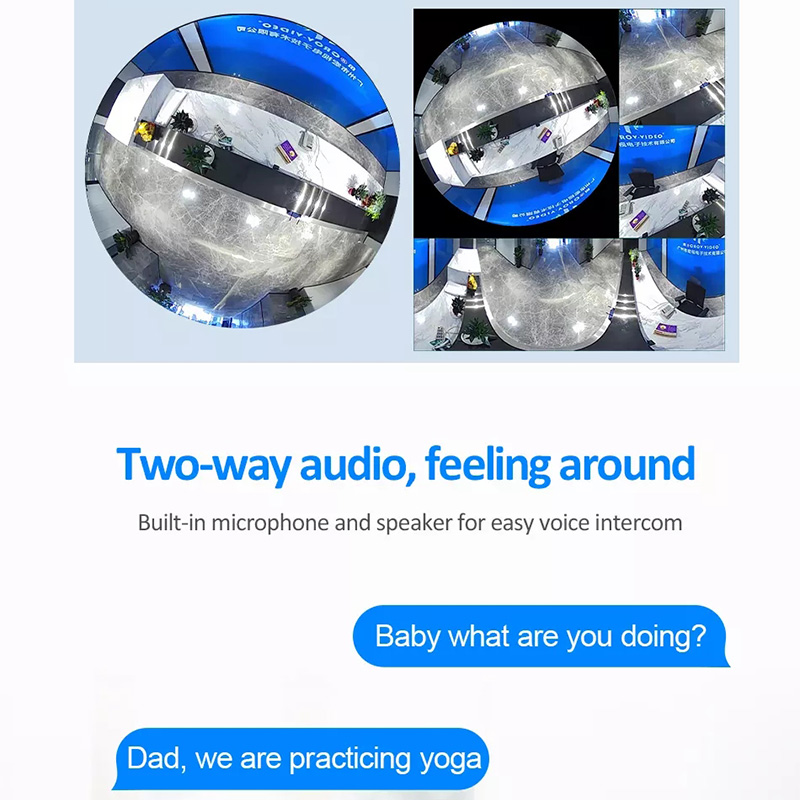

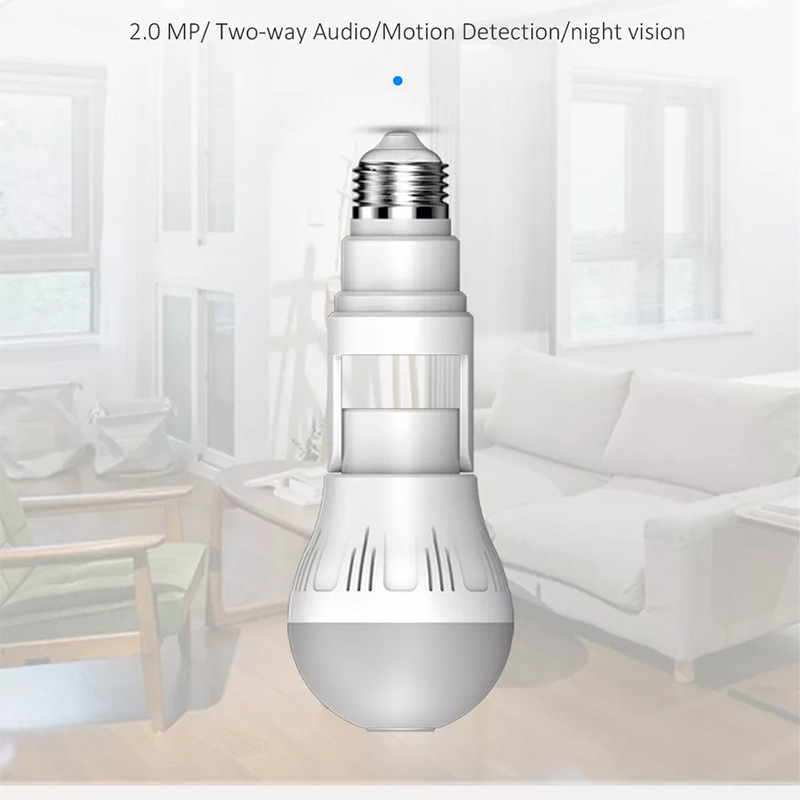

5. Built-in microphone and loudspeaker,support two-way real-time audio transmission.

6. Support ONVIF, RTSP, P2P and other protocols

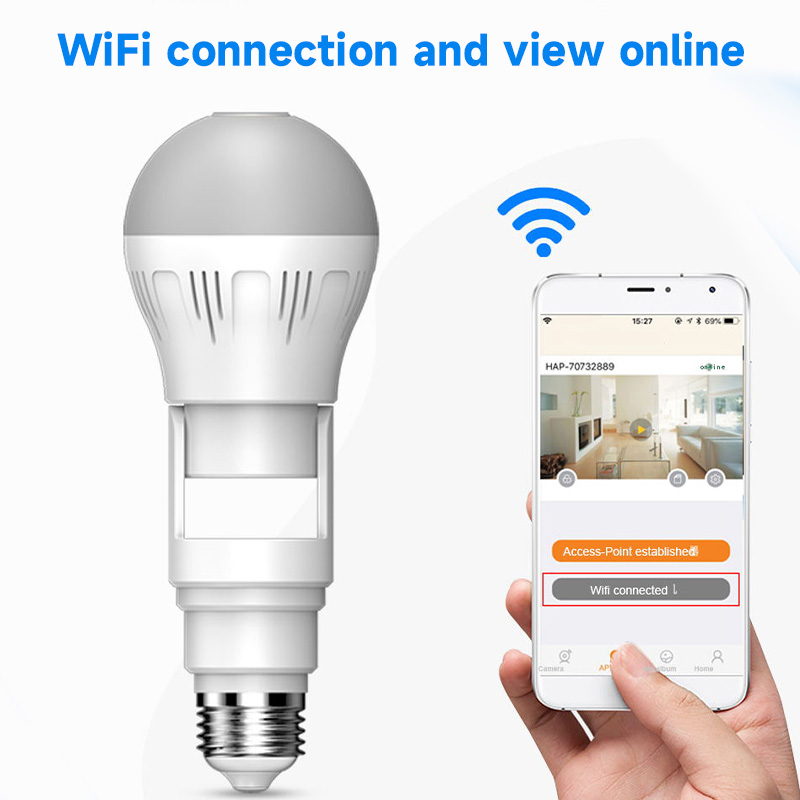

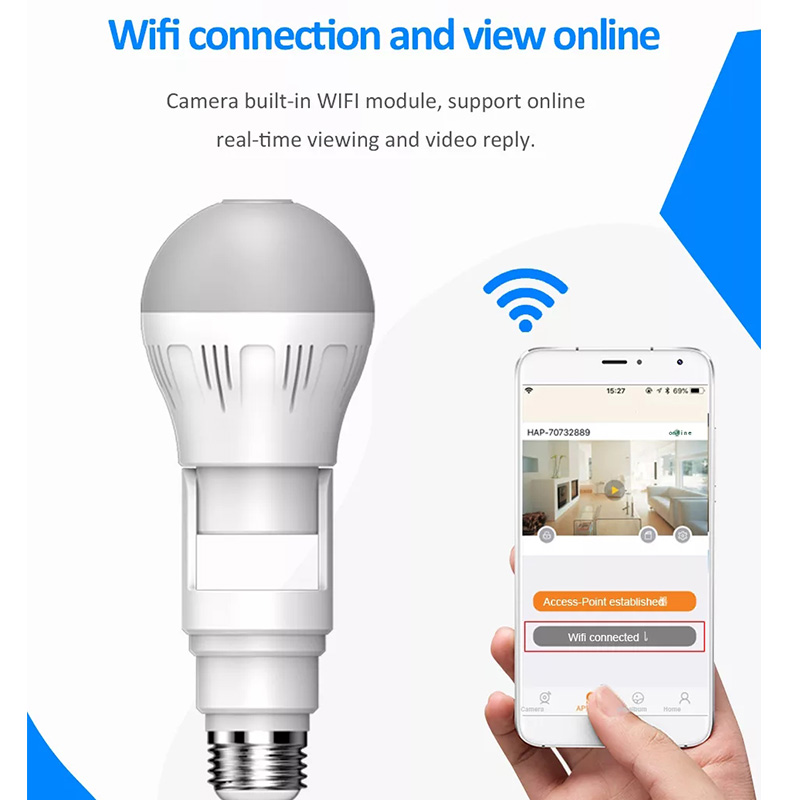

7. Support WIFI connection, IEEE 802.11 b/g/n+ hotspot connection

8. Support motion detection alarm, screenshot and video

9. IR-CUT automatic switchover, 5-10M (differ from environment)

10. Support 128G TF card max, automatically cover video + cloud storage

11. Power: 5V/1.6A (110~220V)

12. Support motion detection, alarm picture push

13.Application: Suitable for office, store and warehouse etc.

Product Detail


AV300-07 AV300-08 AV300-09 AV300-10 AV300-11 AV300-12 AV300-13 AV300-14

AV300-18 AV300-19 AV300-20 AV300-21 AV300-22 AV300-23 AV300-24AV300-25 AV300-26 AV300-27

  • Previous:
  • Next:

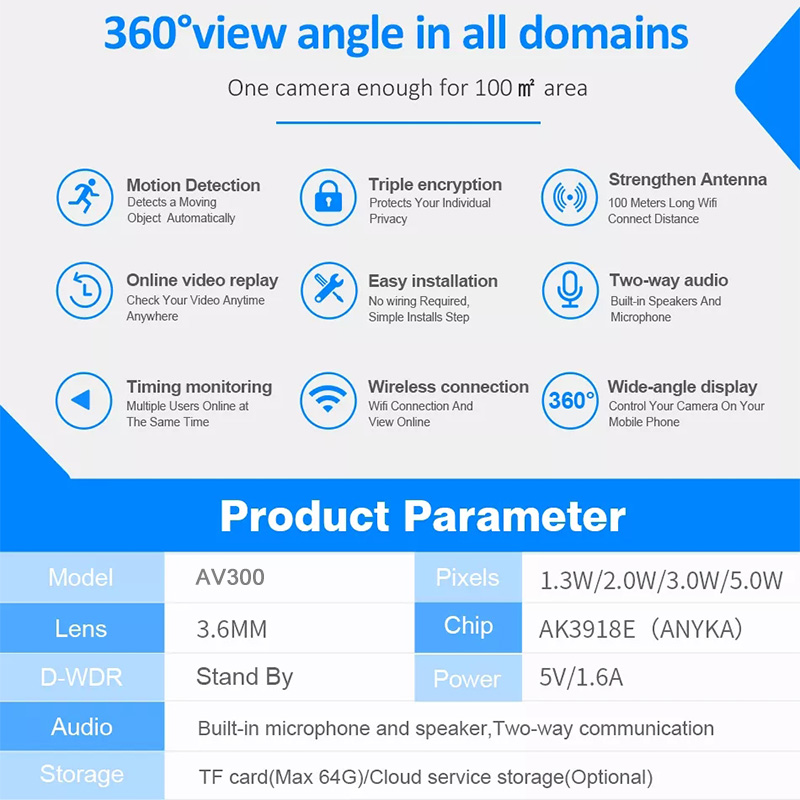

    Model AV300
    Pixels 300W 500W
    Sensor Resolution 2048*1536 2576*1936
    Lens Panoramic lens, Focal length:1.35±3%mm
    Chip AK3918E-V300 (AK) MSC316DM (Mstar)
    Digital Wide Dynamic Support
    Power 5V/1.6A (110~220V)
    Product Size 18cm(L)*8cm(W)
    Packing Size 16.5cm(L)*10.5cm(W)*8.5cm(H)
    Gross Weight 0.35kg
    IR LED 3 pcs LED lights and 3 pcs Infrared Array
    Internet WIFI(IEEE802.11b/g/n)

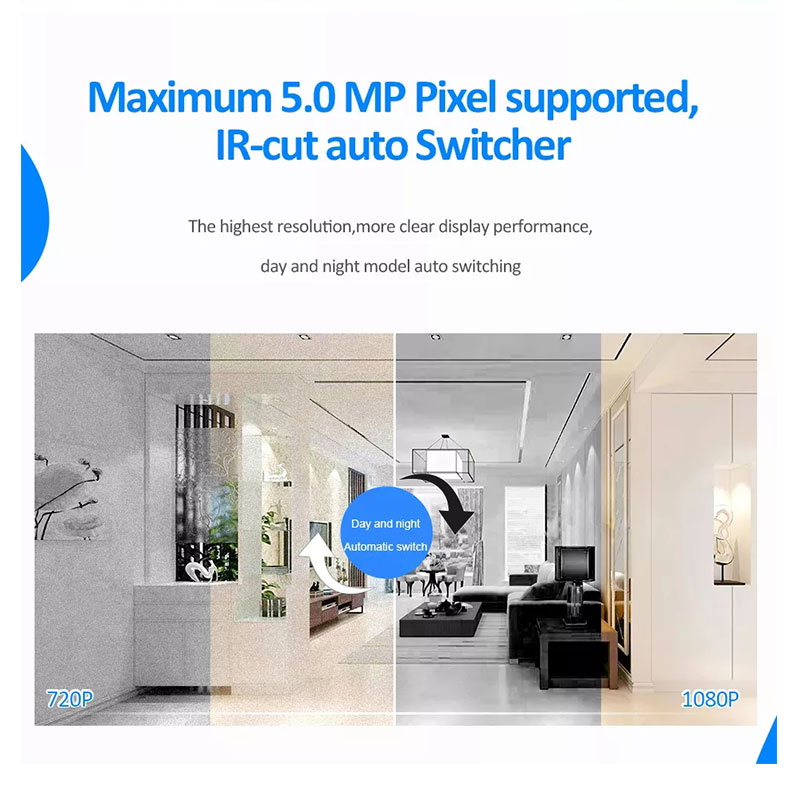

    Night Vision IR-CUT automatic switchover, 5-10M (differ from environment)
    Audio Built-in microphone and loudspeaker,support two-way real-time audio transmission,ADPCM audio compression standard,self-adapting stream
    Storage Support TF Card(Max 128G )Cloud storageOptional

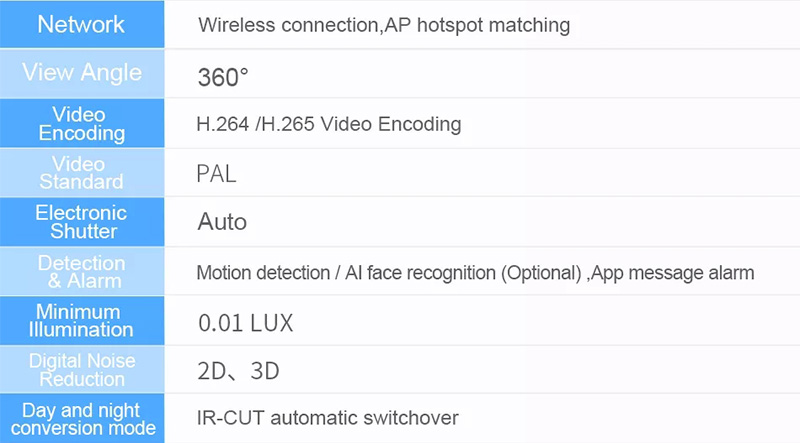

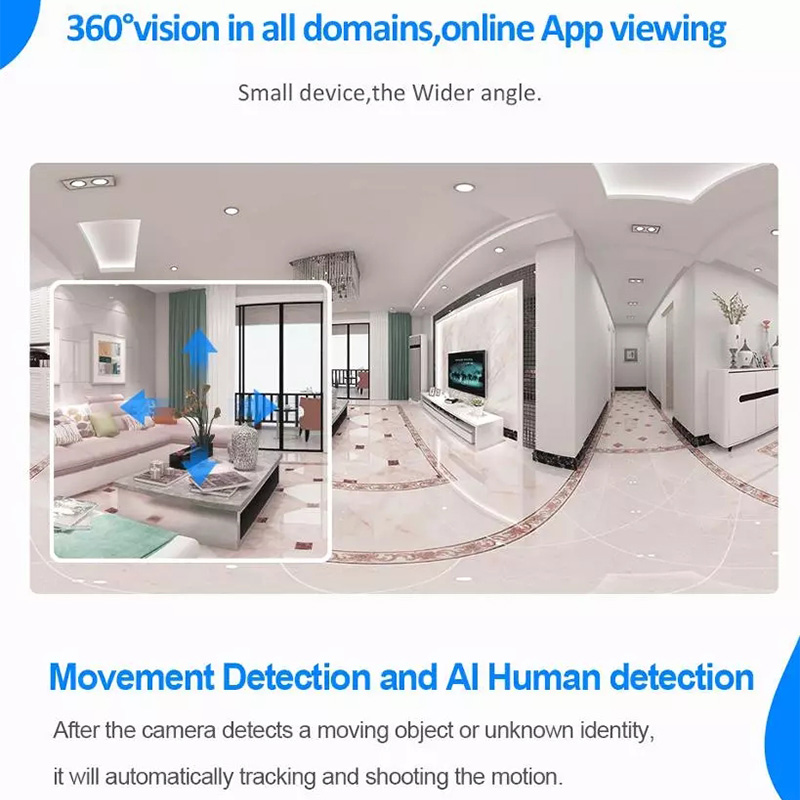

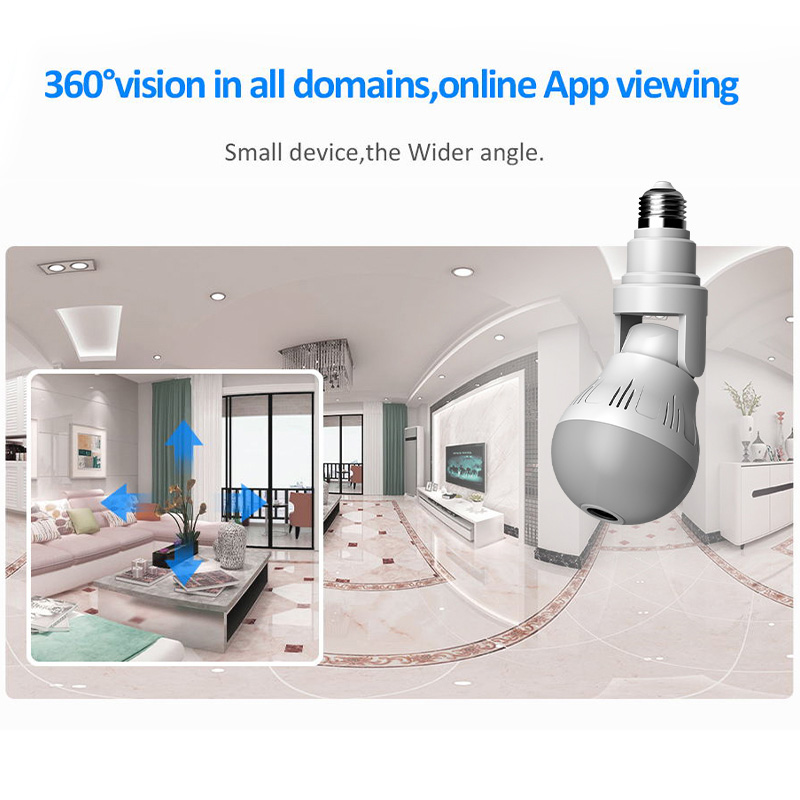

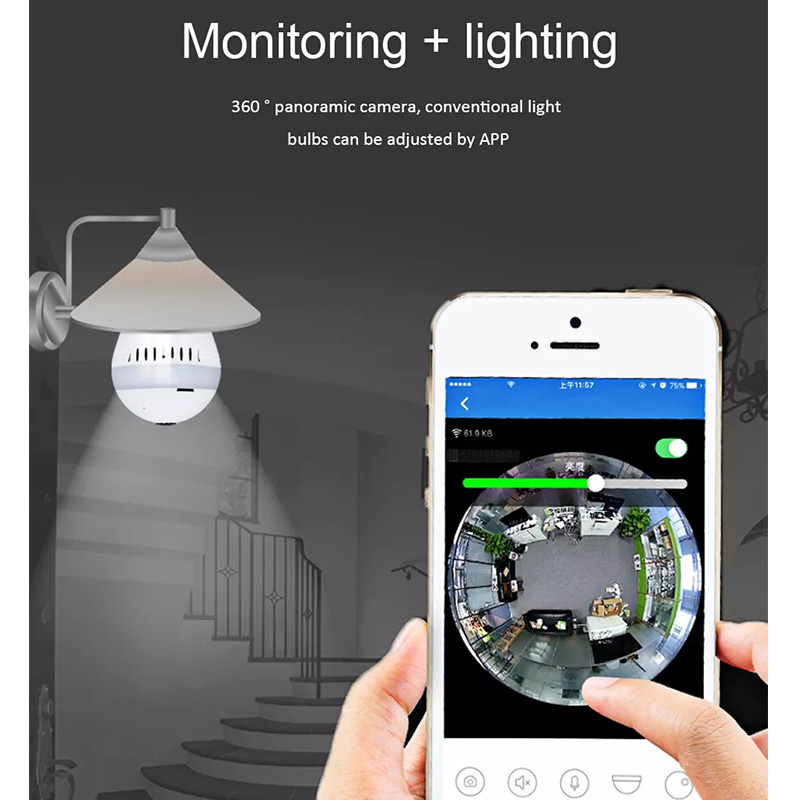

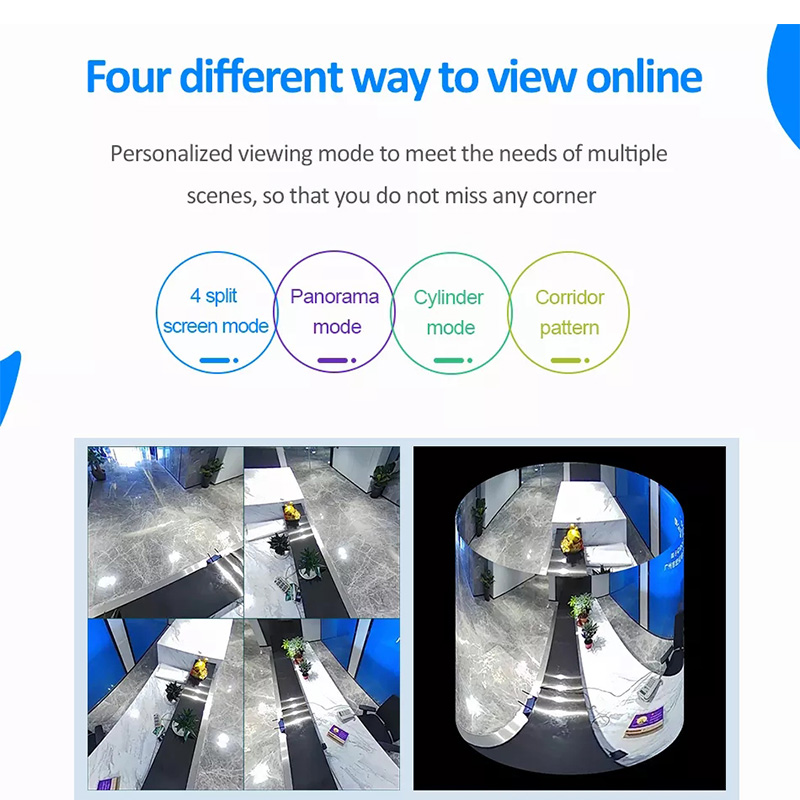

    View of Angle 360°
    FOV Pan Range:185°/Tilt Range:185°
    Video Encoding H.265/12FPS
    Video Standard PAL
    Electronic Shutter Auto

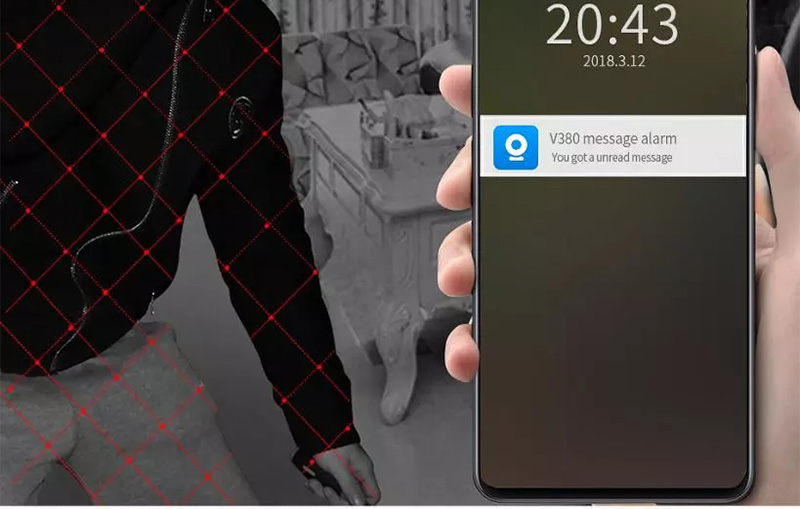

    Detection & Alarm Motion Detection,Alarm picture push    AIOptional
    Minimum Illumination 0.01 LUX
    Digital Noise Reduction 2D3D
    Working Environment Working Temperature: -10℃ ~ + 50℃Working Humidity: ≤95%RH

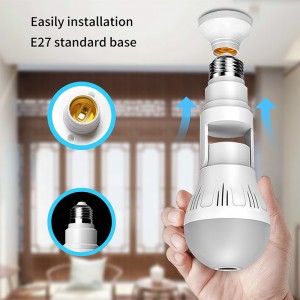

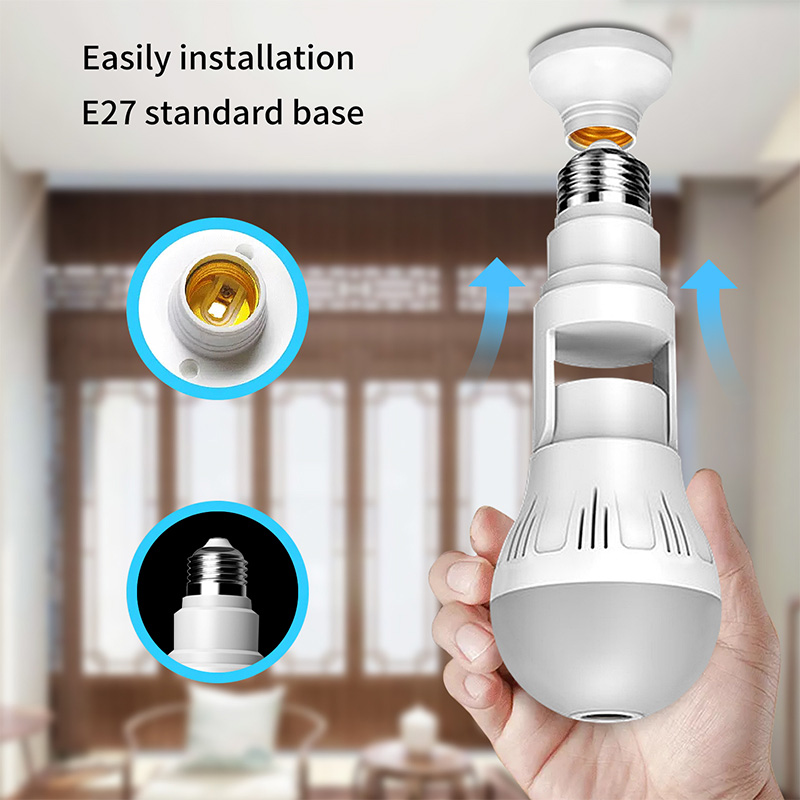

    Interface E27 threaded interface
    System Embedded Linux Systems, ARM chip architecture

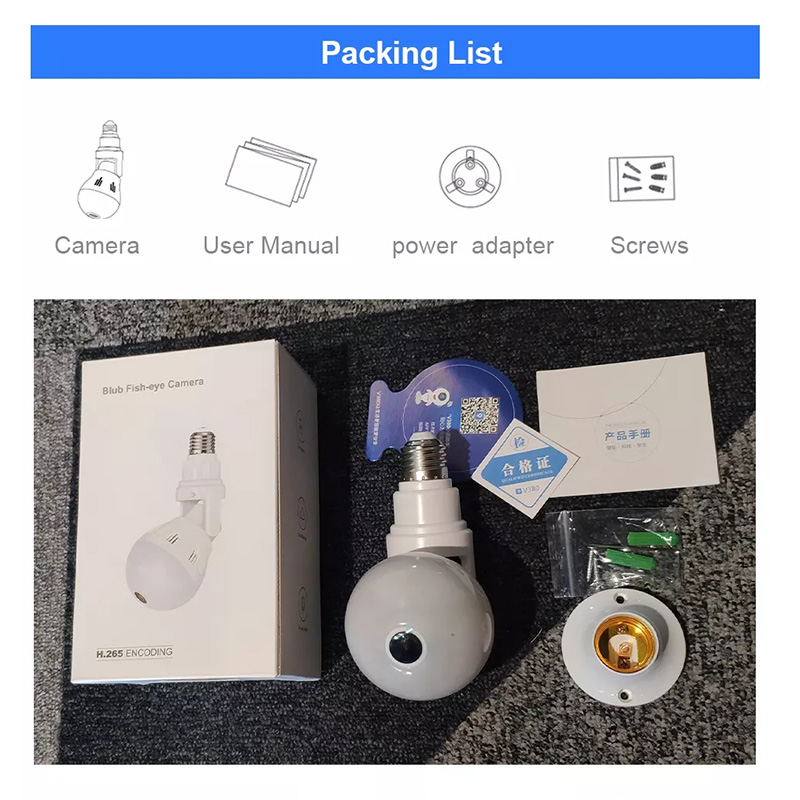

    Package Contents User ManualCamera BoxPower AdapterScrews pack
