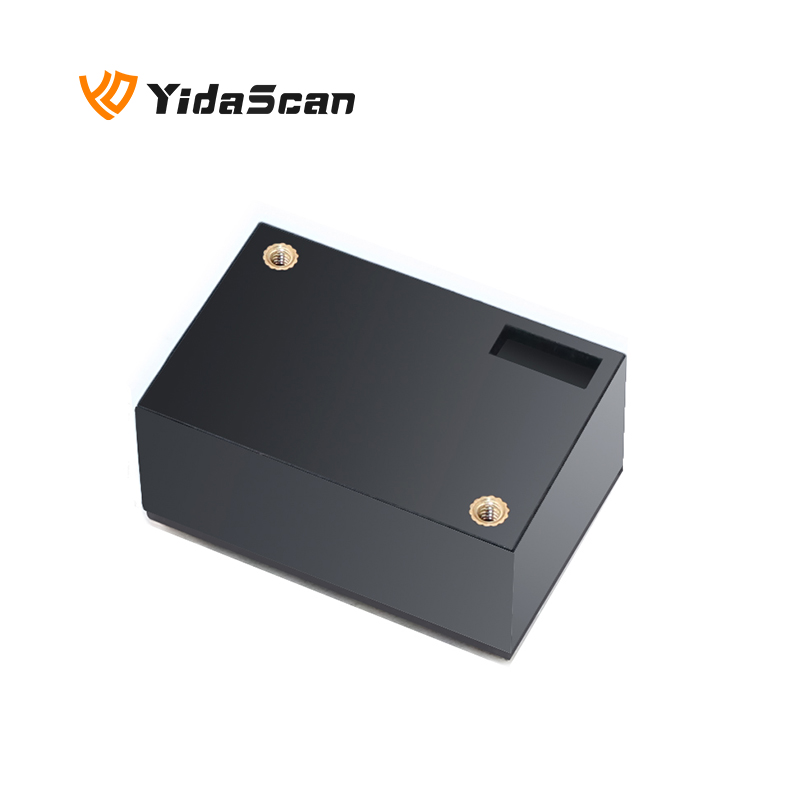

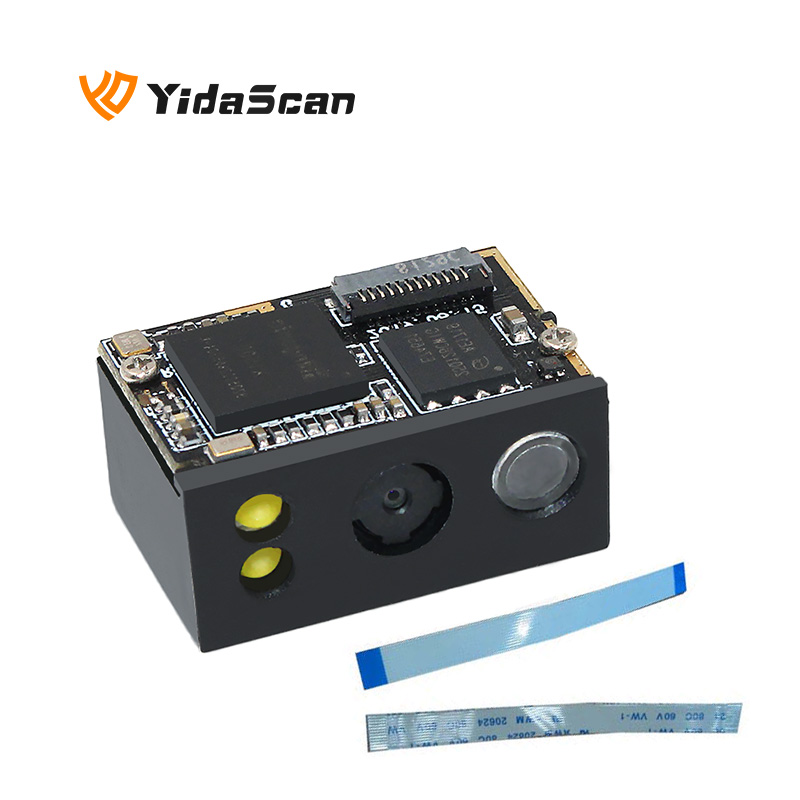

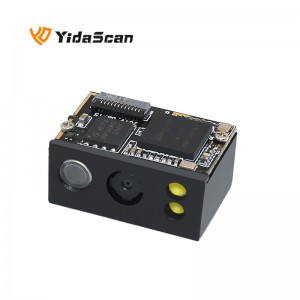

ES20 2D Scan Engine All In One

Short Description:

Decode Capability: 1D, 2D

Form Factor: All-in-One

Image sensor: CMOS

Illumination: White light LED

Focusing: Red light LED

Dimension: 22mm(W)×14.5mm(D)×11.7mm(H) (Max.)

Net Weight: 3g

Interface: TTL, USB

Project: PDA, Mobile Terminal, Mobile Payment, Retail, Healthcare, Warehouse, Transportation & Logistic, Self-service Kiosk, Manufacturing

Product Detail



• All-in-One Design

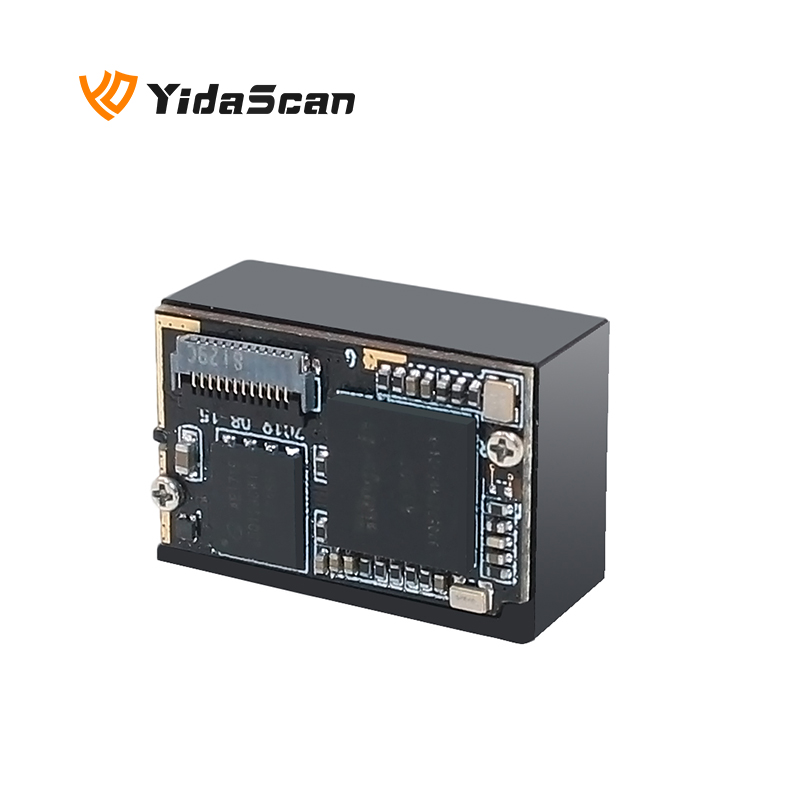

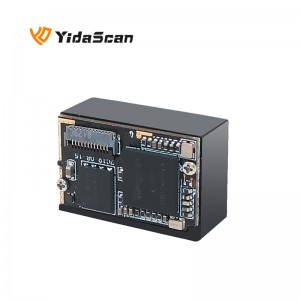

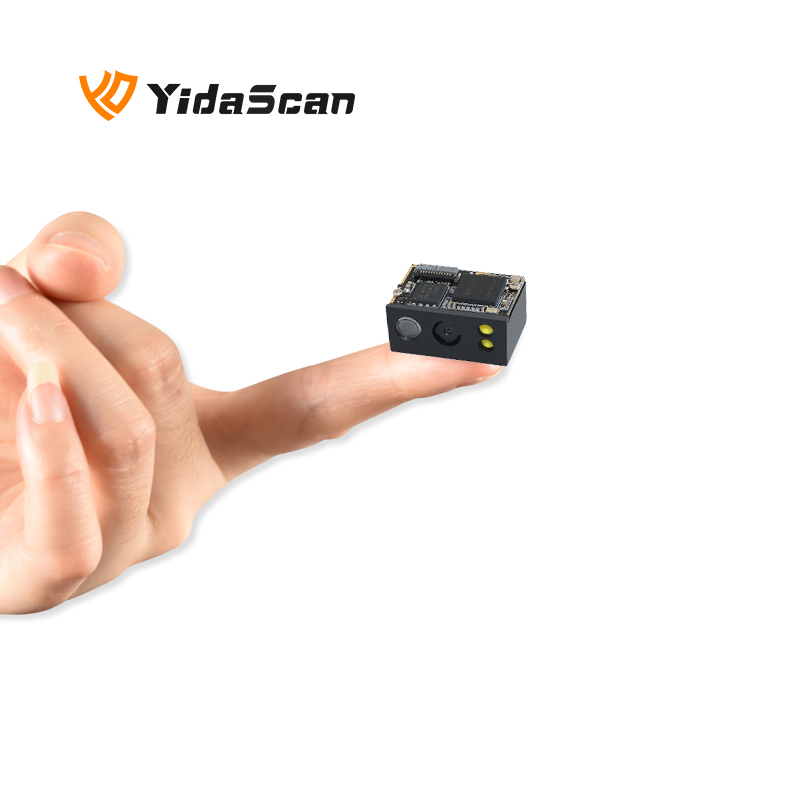

Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy to fit into even the most space-constrained equipment. (Seamlessly compatible with ES20)

• Snappy On-screen Barcode Capture
This scanner is capable of reading 1D and 2D QR code on a screen covered with protective film.

• HD Camera Module
CMOS camera module, high-precision bar code reading (3MIL), to easily identify all the mainstream 1d and 2d barcodes in the market. Paper, printing, plastic, mobile phone screen can easily read.

• Working Modes
Support a variety of working modes (manual, continuous mode, induction, command control), can meet the different reading requirements.

• OEM Development
Support for online upgrades, custom development, and secondary development.



The illustrations below show the mechanical mounting dimensions (unit: mm) for the ES20


Housing Design

※Note: Conduct an optical analysis for the housing design to ensure optimal scanning and imaging performance.
Housing design should make sure that internal reflections from the aiming and illumination system are not directed back to the engine. The reflections from the housing or window can cause problems. Avoid any highly reflective objects around the engine that can cause bright spots to appear in the captured image. It is recommended to use baffles or matte-finished dark internal housing colors.

  • Previous:
  • Next:

  • Scanning Performance Image sensor CMOS sensor with 640*480 pixels
    Illumination White light LED
    Focusing Red light LED
    Symbologies 2D (Aztec)、(PDF417)、(Micro PDF417)、(QR Code)、(Micro QR)、(Data Matrix)、(Hanxi code)
    1D (Codabar)、(Code 39)、(Code 32)、(Interleaved 2 of 5)、(Industrial 2 of 5)、(Matrix 2 of 5)、(Code 93)、(Code 11)、(Code 128)、(GS1-128)、(ISBT 128)、(UPC-A)、(UPC-E),(EAN/JAN-8)、(EAN/JAN-13)、(Qlessey)、(GS1 DataBar(RSS14))、(Standard 2 of 5)、(Msiplessey)
    Precision* ≥5mil
    Typical reading depth of field* EAN-13 (13mil) 45mm~300mm(Bar code size:31mm*7mm)
    PDF417 (6mil) 50mm~150mm(Bar code size:14mm*7mm)
    Code39 (5mil) 60mm~150mm(Bar code size:27mm*8mm)
    Data Matrix (10mil) 25mm~260mm(Bar code size:5mm*5mm)
    QR Code (15mil) 25mm~230mm(Bar code size:10mm*10mm)
    Symbol contrast* ≥20%
    Bar code sensitivity** Pitch ±70°, Skew ±70°, Roll 360°
    View angle Horizontal 41°, Vertical 31°
    Mechanical/Electrical Parameters Interface TTL、USB
    Dimension(mm)Net Weight 22mm(W)×14.5mm(D)×11.7mm(H)(Max.)3g
    Working voltage 3.3 VDC±5%
    Rated power 810mW (Typical value)
    Current@3.3 VDC Working 245mA(RMS Typical values),320mA(RMS Max.)
    Standby 30mA
    Environmental Parameters Operating temperature -10℃~+60℃
    Storage temperature -40℃~+70℃
    Operating humidity 5%~95%(No condensation)
    Ambient lighting 0~100,000LUX
    Optional Accessories List Development board Development board with trigger button and buzzer, with RS232 and USB
    Cable USB USB cable, used to connect the development board and information receiving host
    RS-232 RS232 cable, used to connect the development board and information receiving host

    * Test conditions: ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp; The paper code shall use the test sample code formulated by our company.

    ** Test conditions: Test distance = (minimum depth of field + maximum depth of field) /2; Ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp.
