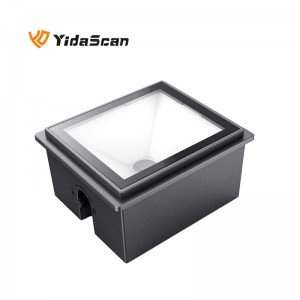

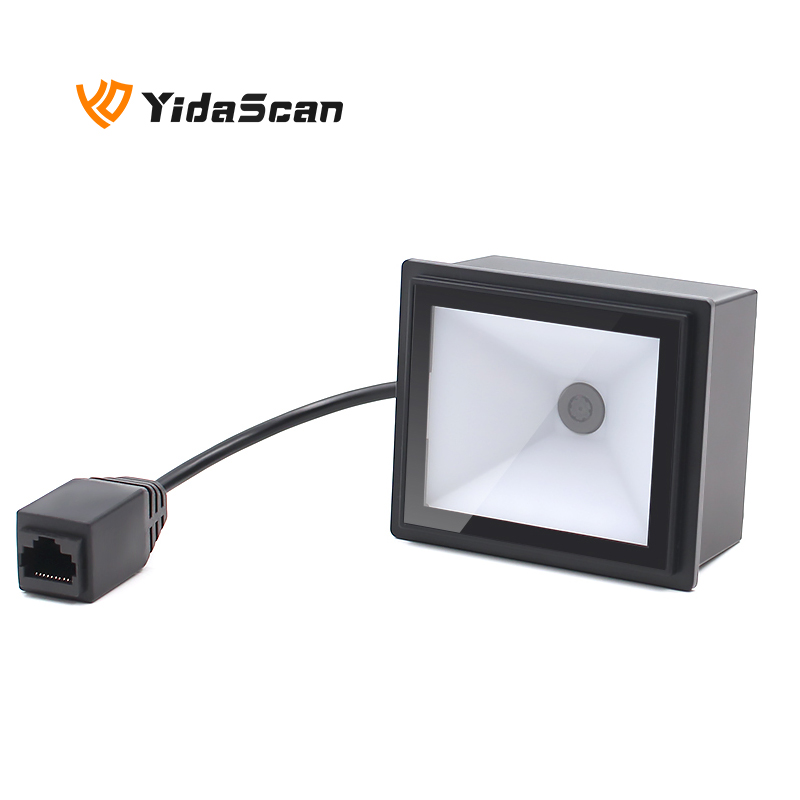

FM500 2D Fixed Mount Scanner Turnstile

Short Description:

Decode Capability: 1D, 2D, QR Code

Form Factor: All-in-One

Image sensor: CMOS

Illumination: White light LED

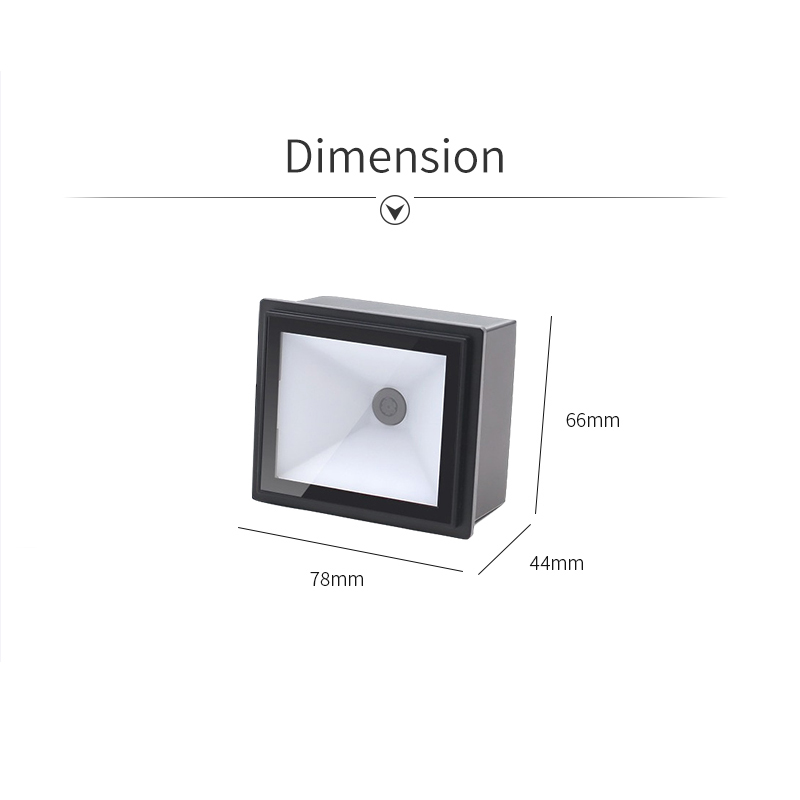

Dimension: 78mm(W)×66.2mm(D)×41mm(H)

Net Weight: 200g

Interface: USB, RS232, RS485, Wiegand

Project: Turnstile, Self-service Kiosk, Access Control System, Vending Machine, Mobile Payment, Retail, Healthcare, Manufacturing

Product Detail



• Ease of Integration
Compact and easy to integrate design. The small form factor enables easy integration into various solutions. The FM500 has an IP54 rating meaning it is dust -and water resistant.

• Durable Metal Housing
The scanner uses a durable metal housing, making it ideal for self-service applications, like Turnstile.

• Snappy On-screen Barcode Capture
This scanner is capable of reading 1D and 2D QR code on a screen covered with protective film.

• IR Trigger
The IR sensor in the scanner exhibits an improved sensibility in activating the scanner to scan barcodes as they are presented, markedly increasing throughput and productivity.

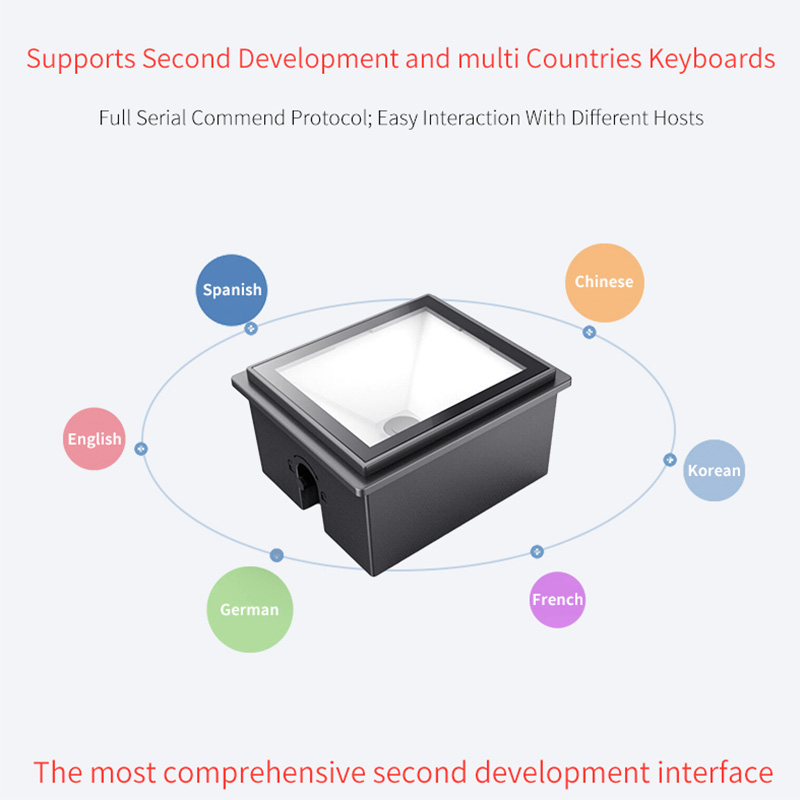

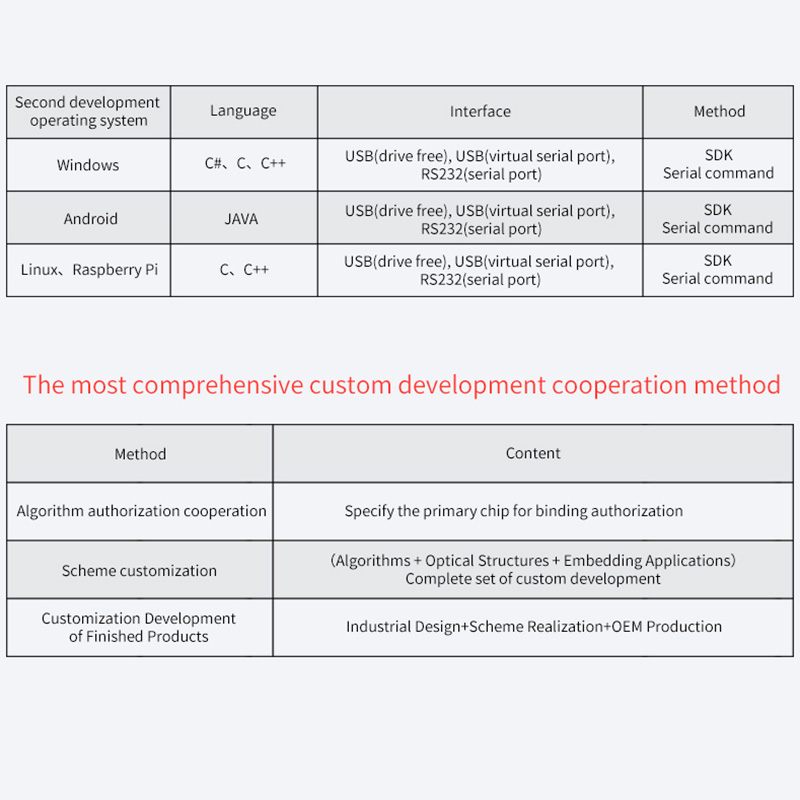

• OEM Development
Support for online upgrades, custom development, and secondary development. The serial port command protocol allow developer to integrate and control the scanner seamlessly and the scanner can be under controlled by the protocol fully.

FM500 06 FM500 07 FM500 08 FM500 09 FM500 10 FM500 11 FM500 12 FM500 13

  • Previous:
  • Next:

  • Performance Image Sensor 640*480 CMOS
    Illumination White LED
    Symbologies 2D (PDF417)、(QR Code)、(Micro QR)、(Data Matrix)、(Hanxi code)
    1D (Codabar)、(Code 39)、(Code 32)、(Industrial 2 of 5)、(Interleaved 2 of 5)、(Standard 2 of 5)、(Matrix 2 of 5)、(Code 93)、(Code 11)、(Code 128)、(UPC-A)、(UPC-E)、(EAN/JAN-8)、(EAN/JAN-13)、(GS1 DataBar(RSS14)
    Resolution* ≥5mil
    Typical Decode Range* EAN-13 (13mil) 5mm~90mm(Barcode Size:31mm*7mm)
    PDF417 (6mil) 5mm~55mm(Barcode Size:14mm*7mm)
    Code39 (6.6mil) 18mm~45mm(Barcode Size:27mm*8mm)
    Data Matrix (10mil) 5mm~60mm(Barcode Size:5mm*5mm)
    QR Code (15mil) 5mm~80mm(Barcode Size:10mm*10mm)
    Min Print Contract* ≥20%
    Scan Angle** Skew±70°,Pitch±70°,Roll 360°
    FOV Diagonal 87.1°,Horizontal 74°,Vertical 65°
    Electronic Interface USB, RS232, RS485, Wiegand

    Net Weight

    Gross Weight



    USB:331g, RS232:406g

    Operating Voltage 5VDC±5%
    Power 1400mW(Typical)
    Current@5 VDC Operating 280mA(RMS Typical),300mA(RMS Max)
    Standby 150mA
    Environmental Operating Temperature 0℃~+60℃
    Storage Temperature -40℃~+70℃
    Operating Humidity 5%~95%(Non-Condensing)
    Embient Light 0~100,000LUX

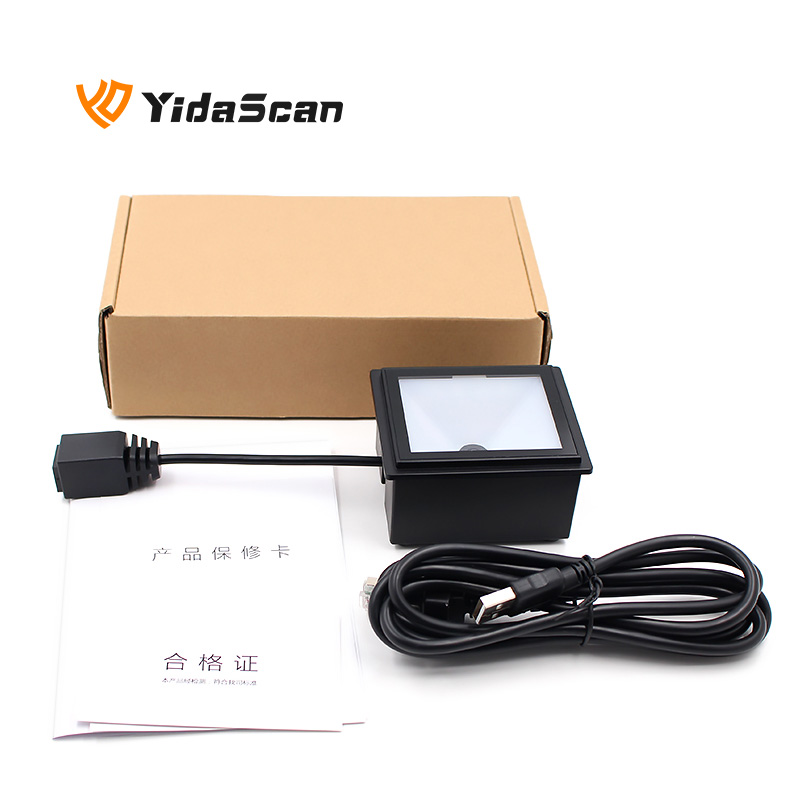

    Accessories Cable USB USB Cable
    RS-232 RS232 Cable
    TTL TTL Cable
    RS-485 RS485 Cable
    WG Wiegand Cable

    * Test conditions: ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp; The paper code shall use the test sample code formulated by our company.

    ** Test conditions: Test distance = (minimum depth of field + maximum depth of field) /2; Ambient temperature =23℃; Ambient illumination =300 LUX incandescent lamp.
