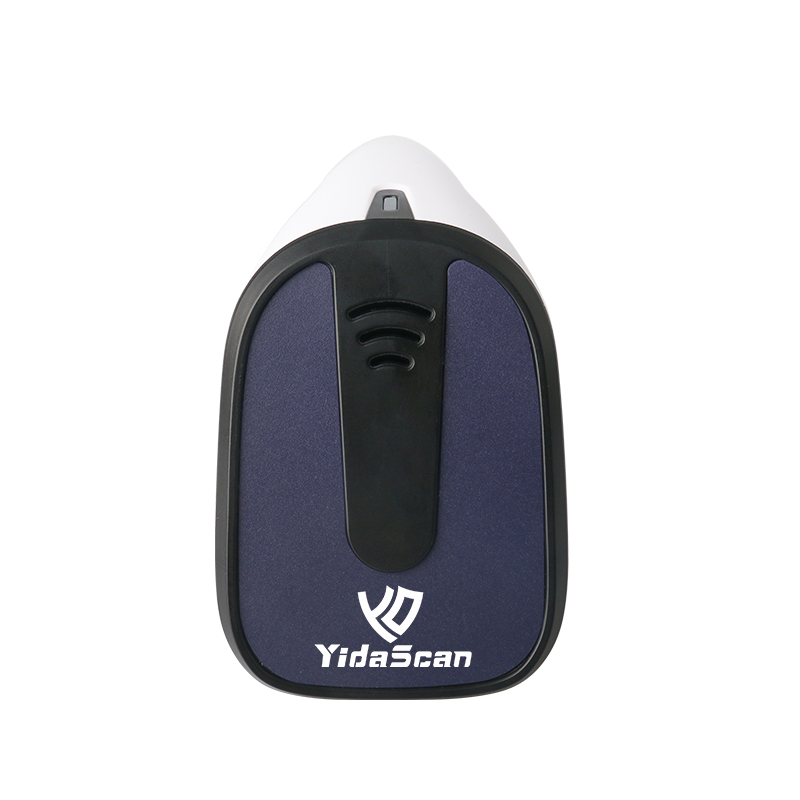

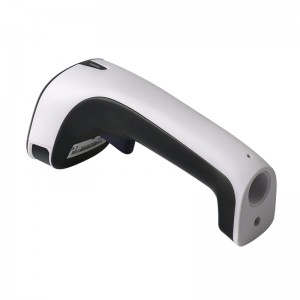

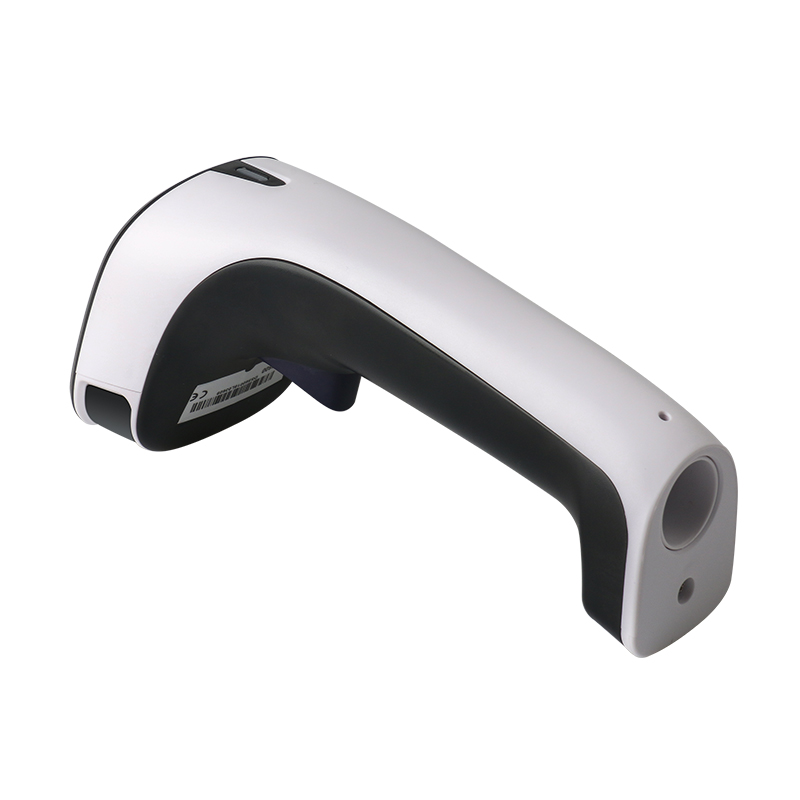

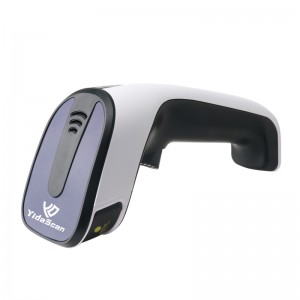

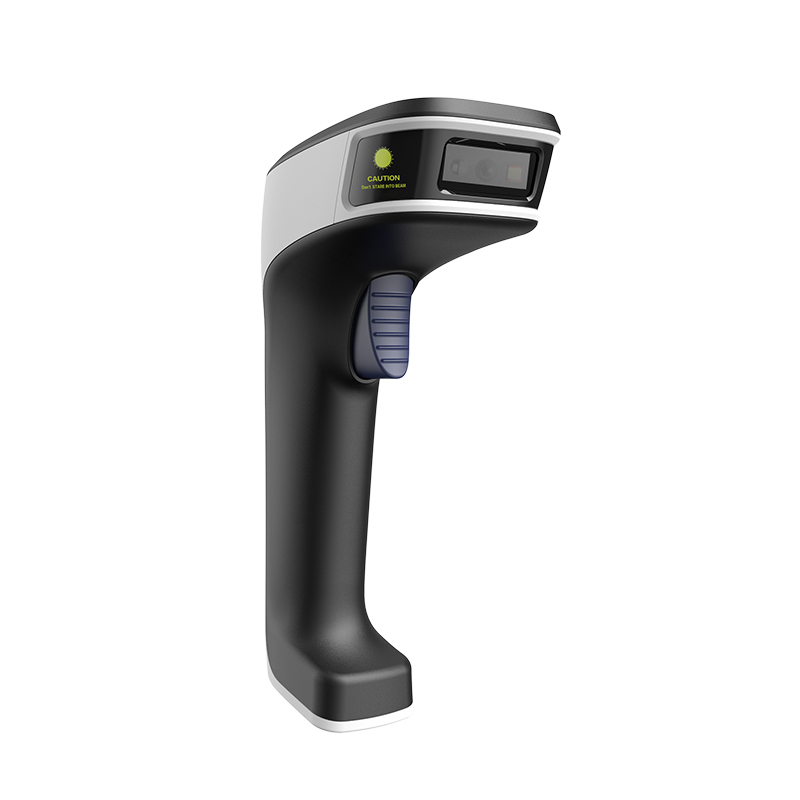

HS40 2D Barcode Reader Handheld Wired USB

Short Description:

Decode Capability: 1D, 2D

Image Sensor: 640*480 CMOS

Connectivity: Corded

Interface: USB, RS232

Dimension: 180(L)mm*60(W)mm*80(H)mm

Net Weight: 110g(No Including Cable)

Resolution: ≥3mil/0.076mm(PCS90%,CODE 39)

Sealing: IP54

Project: Warehouse Management, Retail, Mobile Payment, Public Sector

Product Detail



• High-Performance MCU
Easy to identify all the mainstream 1D and 2D bar codes in the market.

• Good Resolution
Easy to read bar codes above 3MIL to meet daily scanning needs.

• Automatic Exposure
300,000 pixel whole exposure camera, automatic exposure, suitable for complex environment.

• CMOS Scan
CMOS 2D bar code technology, paper, printing, plastic, screen can easily read.

• Working Modes
Support a variety of working modes (Manual Trigger, Induction Mode), can meet different reading needs.

• IP54-rated Sealing
An IP54-rated seal protects the scanner against the ingress of dust, water and other contaminants.

  • Previous:
  • Next:

  • Interface


    Image Sensor



    640*480, 300,000 Pixel Whole Exposure

    ≥3mil/0.076mm(PCS90%,CODE 39)

    Read the Depth of Field

    10mm~550mm(Different Bar code Range)

    Decoding Speed


    Read Mode

    Manual Trigger, Induction Mode

    Remind Model

    LED Indicator Light, Buzzer

    Field Angle

    40° * 30°

    Read Angle

    Test Conditions:CODE39,10mil/0.25mm,PCS90%

    Roll: ±360°,Pitch:±60°,Skew: ±55°

    Print Contrast


    Ambient Illumination

    Dark Environment, Indoor Natural Light


    1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded), etc.

    2D: QR Code,  Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,etc.

    Mechanical/Electrified Performance

    Net Weight 110g(No Including Cable)
    External Dimension 180(L)mm*60(W)mm*80(H)mm
    Cable Length 1.5M
    Interface Type USB Male, DB9 Female
    Operating Voltage DC 5V
    Current 180mA(WORK)

    Work Environment

    Operating Temperature -20℃ to 50℃
    Storage Temperature -40℃ to 60℃
    Operating Humidity 5% to 95%(No Condensation)
    Transport Vibration Test 10H@125RPM


    Cable USB Cable: Used to connect the scanner and the host, and used for USB communication;
    RS232 Cable: With DC power supply head, used to connect scanner and host, and used for serial communication.
    USB Power Supply Cable: Used to connect the scanner and power supply host, and used for serial power supply.
    Power adapter (optional) Output: DC5V 1A, Input: AC100~240V 50~60Hz, it can be used for serial port power supply.

    Typical Depth of Field Value

    Bar code Type

    Bar code Density Minimum Distance Maximum Distance
    Code 39 0.076mm(3mil) 20mm 130mm
    Code 39 0.127mm(5mil) 10mm 140mm
    Code 39 0.5mm(20mil) 20mm 350mm
    Code 39 1mm(40mil) 90mm 550mm
    UPC/EAN 0.33mm(13mil) 25mm 260mm
    QR Code 20.0mil 10mm 200mm
    Data Matrix 10mil 20mm 130mm
    PDF 417 6.8mil 20mm 130mm

    Test Conditions: Room Temperature 25℃, Ambient illumination 200LUX, PCS=0.9
