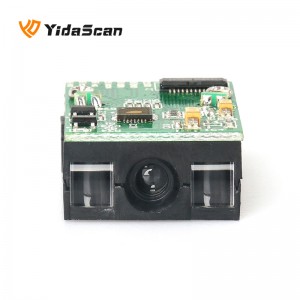

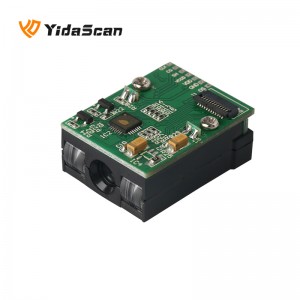

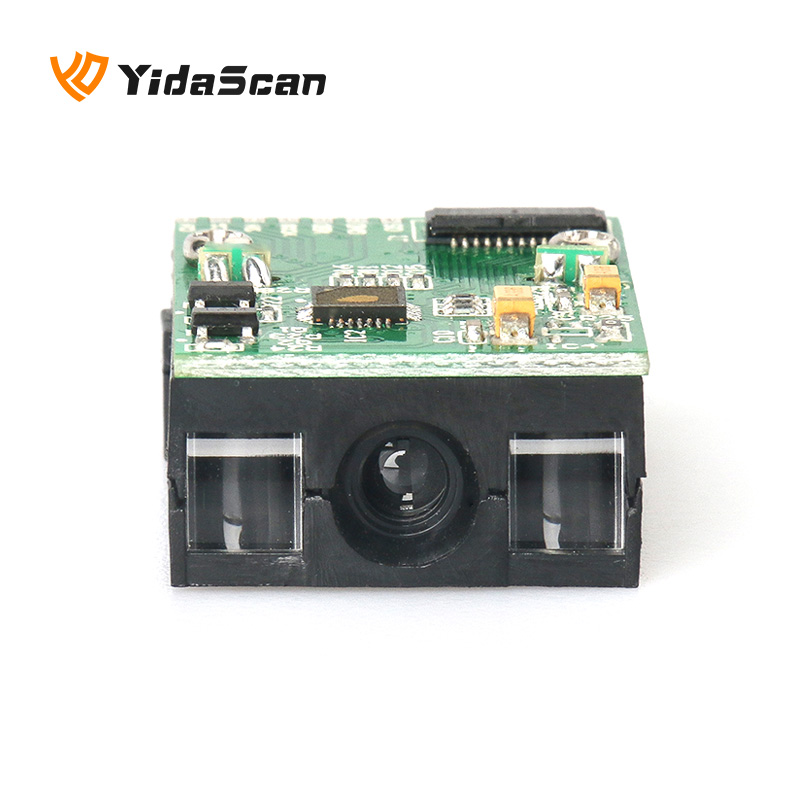

ES14 1D CCD Barcode Scanner Module

Short Description:

Decode Capability: 1D

Form Factor: All-in-One

Illumination: Red LED

Dimension: 26.5mm(L)*20.0mm(W)*11.5mm(H)

Net Weight: <6g

Interface: TTL, USB, PS2

Project: POS, Healthcare, Warehouse, Vending machines, Ticket validation, Transportation & Logistic, Self-service Kiosk, Manufacturing

Product Detail



• Small Size

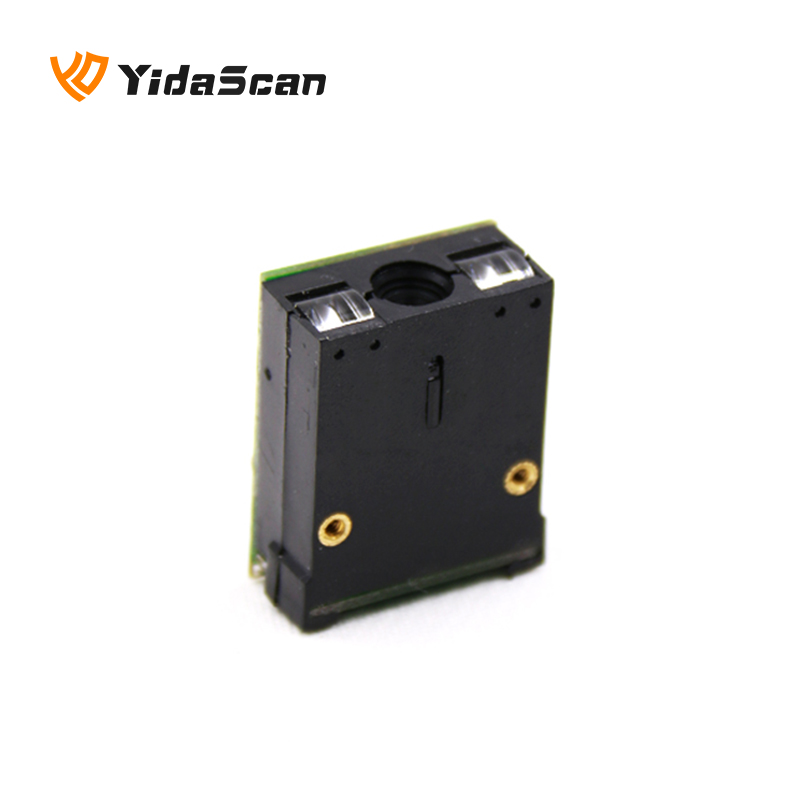

Small size, with fixed copper nuts for easy integration into other equipment,like Kiosk, POS etc.

• Optional Interfaces
A wide variety of optional interfaces USB(KBW, COM, HID), TTL, PS2 for different application scenarios.

• CCD Reader
Original imported CCD, high-precision barcode reading (3MIL), to easily identify all the mainstream one-dimensional barcodes in the market.

• Working Modes
Support a variety of working modes (manual, long bright, flashing, induction, command control), can meet the different reading requirements.

• OEM Development
Support for online upgrades, custom development, and secondary development.


The illustrations below show the mechanical mounting dimensions for the VM1420. The structural design should leave some space between components.


Front Viewunitmm


Side View(unit:mm)


Top View(unit:mm)

  • Previous:
  • Next:

  • Scan type Linear CCD
    Light source Visible red light, 625±10nm
    CPU 32-bit
    Resolution 2500
    Reading precision ≥3mil/0.076mm(PCS90%,Code 39)
    Decoding speed 300times/s
    Depth of field 30mm-700mm
    Scan mode Manual ,Continuous, Auto Sense, Fashing

    Scan angle

    Test Conditions:CODE39,10mil/0.25mm,PCS90%


    Roll: ±30°

    Skew: ±60°

    Print contrast signal ≥20%
    Ambient light Dark environment, indoor natural light
    Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.

    Mechanical / Electrification Performance



    Dimension 26.5mm(L)*20.0mm(W)*11.5mm(H)
    Communication mode USB(USB-KBW、USB-COM),TTL,PS2

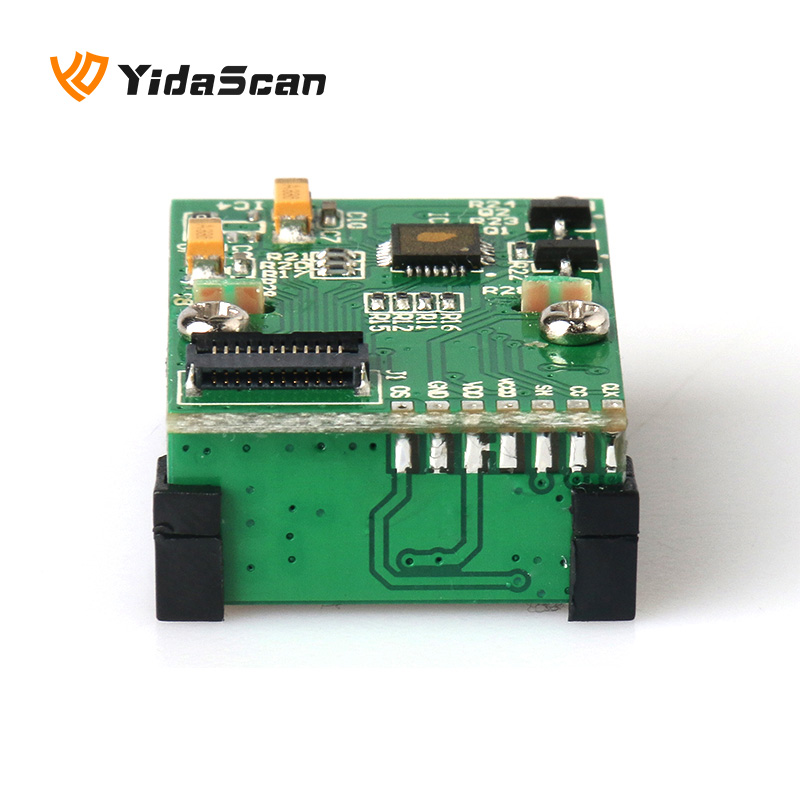

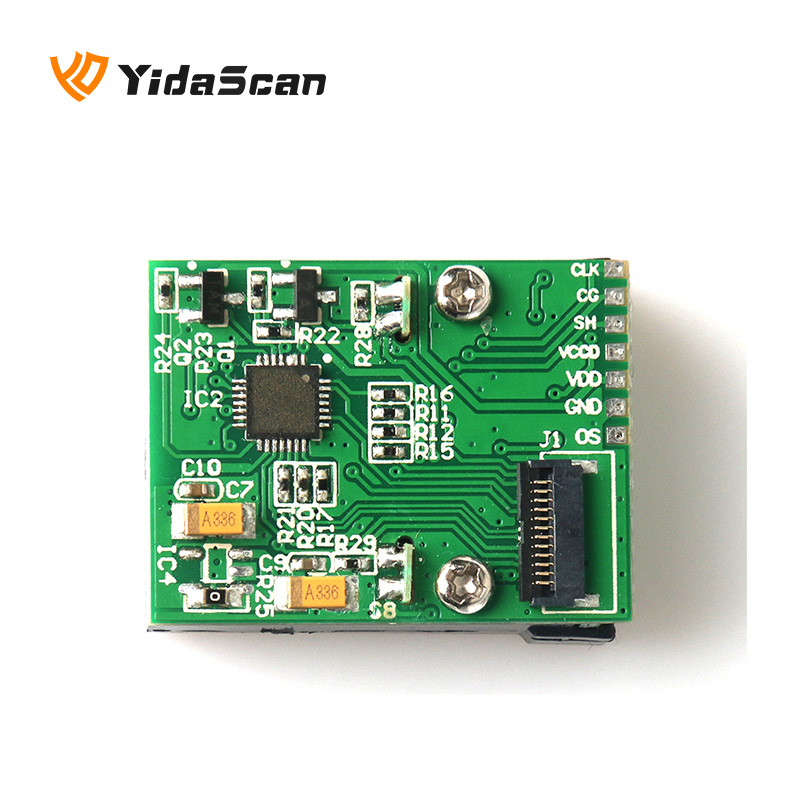

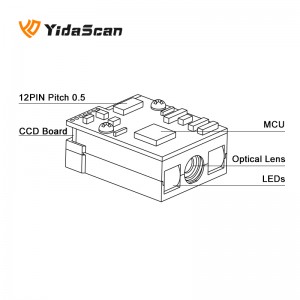

    Interface type FFC 12PIN Pitch 0.5
    Power supply DC 3.3-5V@50mA(work)

    Work Environment

    Operating temperature  -20℃ to 50℃
    Storage  temperature  -40℃ to 70℃
    Humidity 5% to 95%(non-condensing)
    Drop height 1.2m
    Temp test 30 minutes for high Temp., 30 minutes for low Temp.,

    High temp.


        Low temp.

    Transport vibration test 10H@125RPM

    List of Accessories

    Cable(Optional) USB Cable, used to connect the ES14 to a host device.
    RS232 Cable, used to connect the ES14 to a host device, with USB supply cable.
    PS2 Cable, used to connect the ES14 to a host device and keyboard input device.
    Test board(Optional) With trigger button and buzzer, it has USB or RS232 output function.
    Power adaptor Output: DC5V 1A, input: AC100~240V 50~60Hz(serial port optional).

    Depth of Field


    Precision near far

    Code 39

    0.076(3mil) 80mm 120mm

    Code 39

    0.1mm(4mil) 70mm 140mm

    Code 39

    0.127mm(5.0mil) 60mm 150mm

    Code 39

    0.5mm(20mil) 30mm 450mm

    Code 39

    1.0mm(40mil) 130mm 700mm


    0.33mm(13.0mil) 30mm 320mm

    Test Condition:T=25℃,Illumination=200LUX,PCS=0.9
